2.7.2
Internal connectors
1.
Floppy disk drive connector (34-1 pin FLOPPY)
This connector is for the provided floppy disk drive (FDD) signal cable. Insert
one end of the cable to this connector, then connect the other end to the
signal connector at the back of the floppy disk drive.
Pin 5 on the connector is removed to prevent incorrect cable connection when
using a FDD cable with a covered Pin 5.

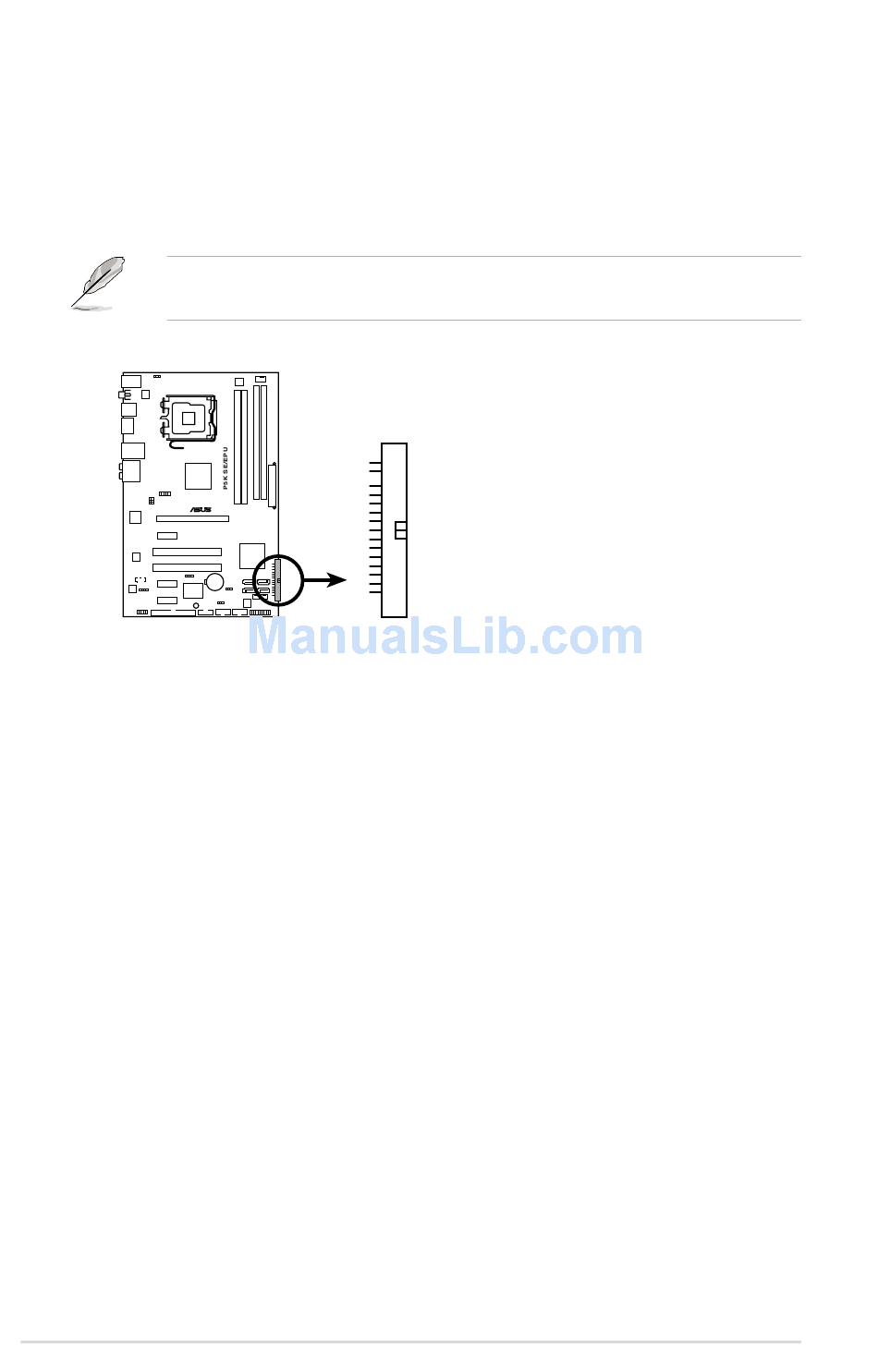

P5K SE/EPU Floppy disk drive connector
2-26
®
FLOPPY
NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.
Chapter 2: Hardware information
