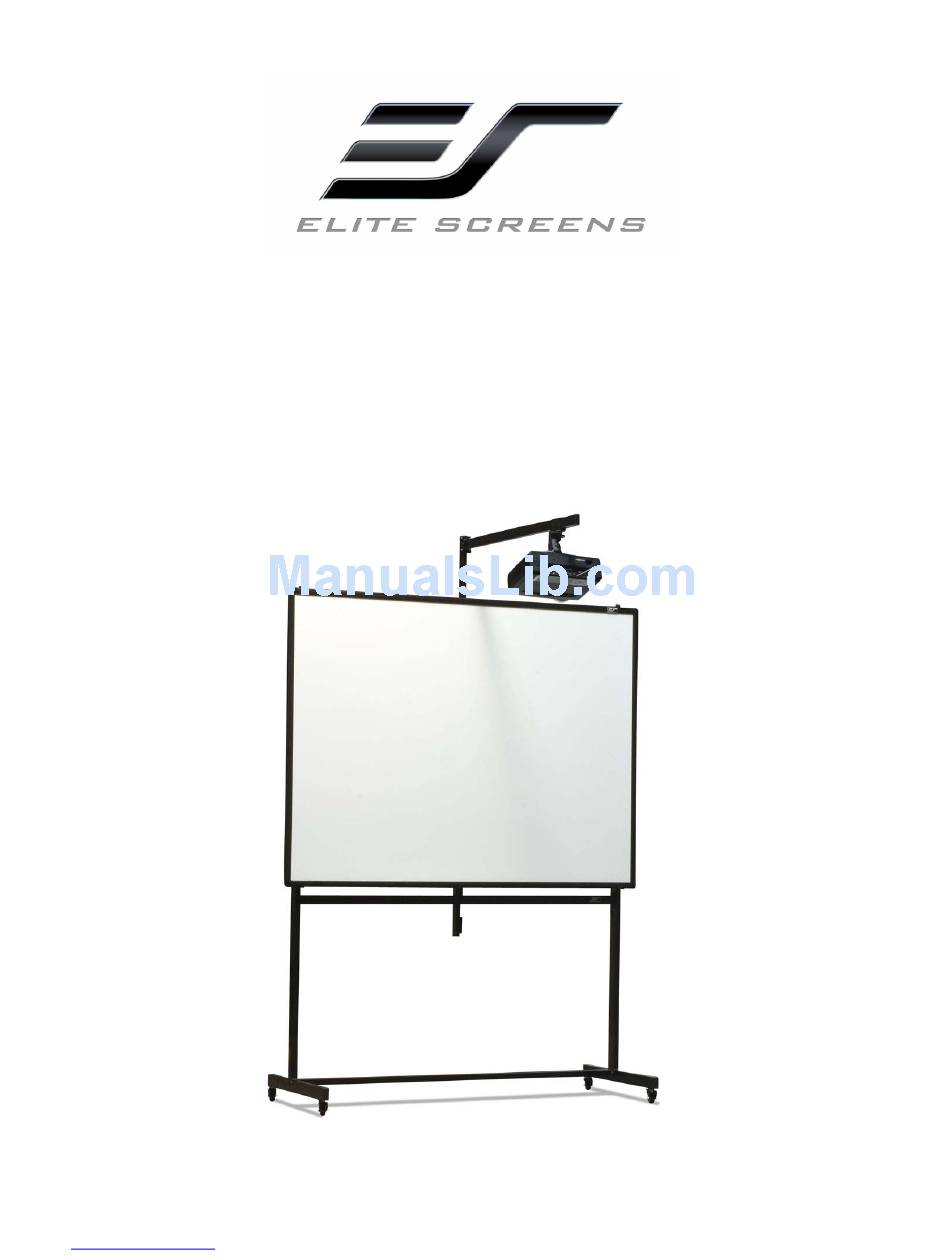

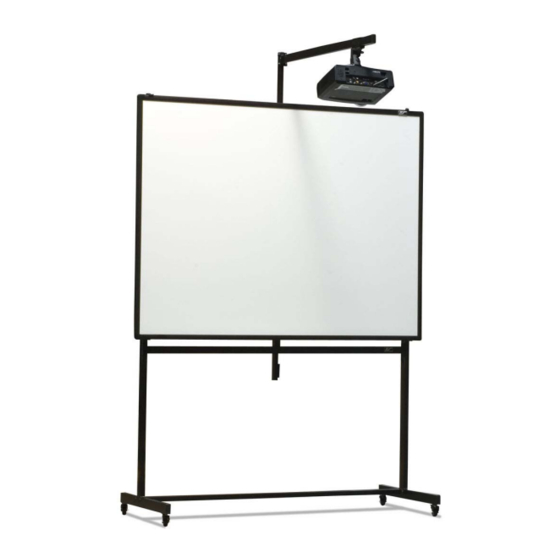

- Page 1 Whiteboard & Short-throw Projector Universal Mobile Stand User’s Guide ...
- Page 2 Parts List for Universal Mobile Stand Please make sure all parts listed below are included before proceeding with installation. a. Bottom Leg X2 b. Side Leg X2 c. Bottom Center Bar X1 d1. Top Center Bar x1 d2. Middle Center Bar x1 e. Center Upright Bar x1 f. Extension Bar x2 g. Projector Rail x1 h. Rail Bracket x1 ...
-
Page 3: Installation Instructions
Installation Instructions Elite Screens recommends two persons to fully assemble the Universal Mobile Stand. Please follow the installation instructions carefully and make sure all screws are secure before installing your WhiteBoardScreen Universal to your Universal Mobile Stand. 1. Attach the Wheels (k) to the Bottom Legs (a). 2. Attach the Bottom Legs (a) to the Side Legs (b) and secure with the M6x60 screws (r), M6 washers (q), and M6 nuts (o). 3. Attach the Bottom Center Bar (c) as shown in the figure below and secure with the M6x35 screws (n), M6 washers (q) and M6 nuts (o). 4. The installation should look like the illustration below. (n) M6x35 Front side with 6 screw holes b (k) Wheel Shorter side (rear) (r) M6x60 Longer side (front) ... - Page 4 Attach the Top Center Bar (d1) and the Middle Center Bar (d2) to the Side Legs (b), and secure with M6x35 screws (n), M6 washers (q) and M6 nuts (o). Insert the Extension Bars (f) to the side legs, attach the brackets (i) and secure with the M6x20 screws (m). Make sure the brackets are facing the front of the stand. Attach the Holders (j) to the side legs and secure with M6x35 screws (n), M6 washers (q) and M6 nuts (o). (m) M6x20 f (i) Bracket d1 d2 b (n) M6x35 c a (j) holder ...
- Page 5 8. Attach the Projector Rail (g) to the Center Upright Bar (e) and secure with M6x15 screws (l), M6 washers (q) and M6 nuts (o). 9. Attach the Center Upright Bar (e) to the Middle Center Bar (d2) and to the Top Center Bar, and secure with the M8x50 screw (s). 10. Attach the Rail Bracket (h) to the projector mount and to the Projector Rail (g), and secure with the M8x20 screw (p). (h) rail bracket (p) M8x20 (l) M6x15 g 5 Rev.052411‐AS www.elitescreens.com info@elitescreens.com ...
- Page 6 11. Secure the Extension Bars (f) with M8x20 screws (p). (p) M8x20 (r) M8x50 (i) Bracket WhiteBoardScreen Universal body 6 Rev.052411‐AS www.elitescreens.com info@elitescreens.com ...
- Page 7 Universal Mobile Stand Dimensions 7 Rev.052411‐AS www.elitescreens.com info@elitescreens.com ...
- Page 8 8 Rev.052411‐AS www.elitescreens.com info@elitescreens.com ...
-
Page 9: Warranty Policy
Warranty Policy • Two (2) Year parts and labor warranty from defects in workmanship from purchase date as follows (except for refurbished units as specified below). • Three (3) Year parts and labor warranty from defects in workmanship for GEMR (Government, Educational, Military, & Religious) purchases of new product only. • Refurbished Units carry a 90‐DAY parts and labor warranty. • Each party will be responsible for one way shipping during the warranty period. • A RMA (Return Merchandise Authorization) number must be issued in order to process a replacement or to authorize a return for warranty repair. Elite Screens will, at its sole option replace or repair the defective unit with a replacement *(see exceptions below) after the defective unit or parts have been received. Once the product is received, Elite Screens will send out a replacement *unit to the customer by ground service (subject to inventory availability). • Do Not Return Any Unauthorized Items to Elite Screens, as they will be refused and returned at your expense. The RMA Number must be included on the outside label of your shipping box. Our warehouse is not authorized to accept returns without an RMA number on the shipping label. • RMA Numbers are valid for 45 days from the date issued. • Missing Parts must be reported within 7 days of receipt. If reported after 7 days, the customer will be responsible for shipping and handling fees. If reported after 30 days of receipt, the customer will be responsible for cost of parts and shipping & handling fees. *A New or refurbished replacement will be send out to the customer depending on the type of purchase (new or refurbished) and based on stock availability. North America only U.S. and Canada For Warranty and Service requests, please submit an RMA/Service Form at: www.elitescreens.com/warrantysupportform ... -
Page 10: Contact Info
Contact Info US & Canada Tech Support & Warranty Claim Please contact us at service@elitescreens.com or call +1 877‐511‐1211 #3 or fax +1‐562‐926‐8433 Europe Tech Support & Warranty Claim Please contact us at service@elitescreens.eu or call +49‐(0) 40‐30392958 Asia Tech Support & Warranty Claim Please contact us at service@elitescreens.com.cn or call +86‐(0) 755‐8461‐7989 Taiwan Tech Support & Warranty Claim Please contact us at service@elitescreens.com.tw or call +866+2+8990‐1999 America: Europe: Elite Screens Inc Elite Screens Europe 16410 Manning Way Lübecker Straße 1 Cerritos, CA 90703 USA 22087 Hamburg, Germany ...
