ISATA
Disk on Module
Version 1.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ISATA-8G-H-M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DMP Electronics ISATA-8G-H-M

Summary of Contents for DMP Electronics ISATA-8G-H-M

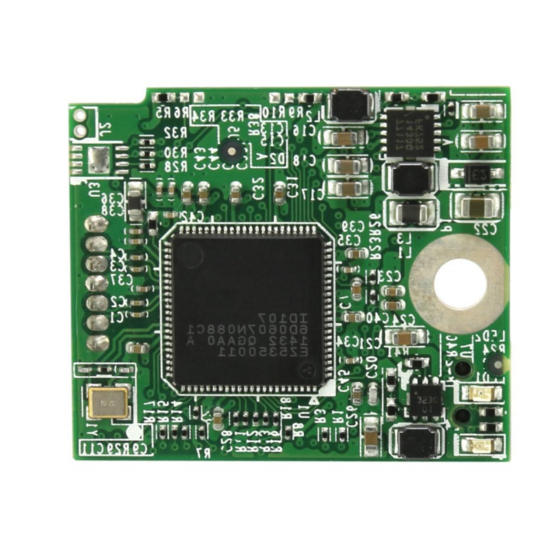

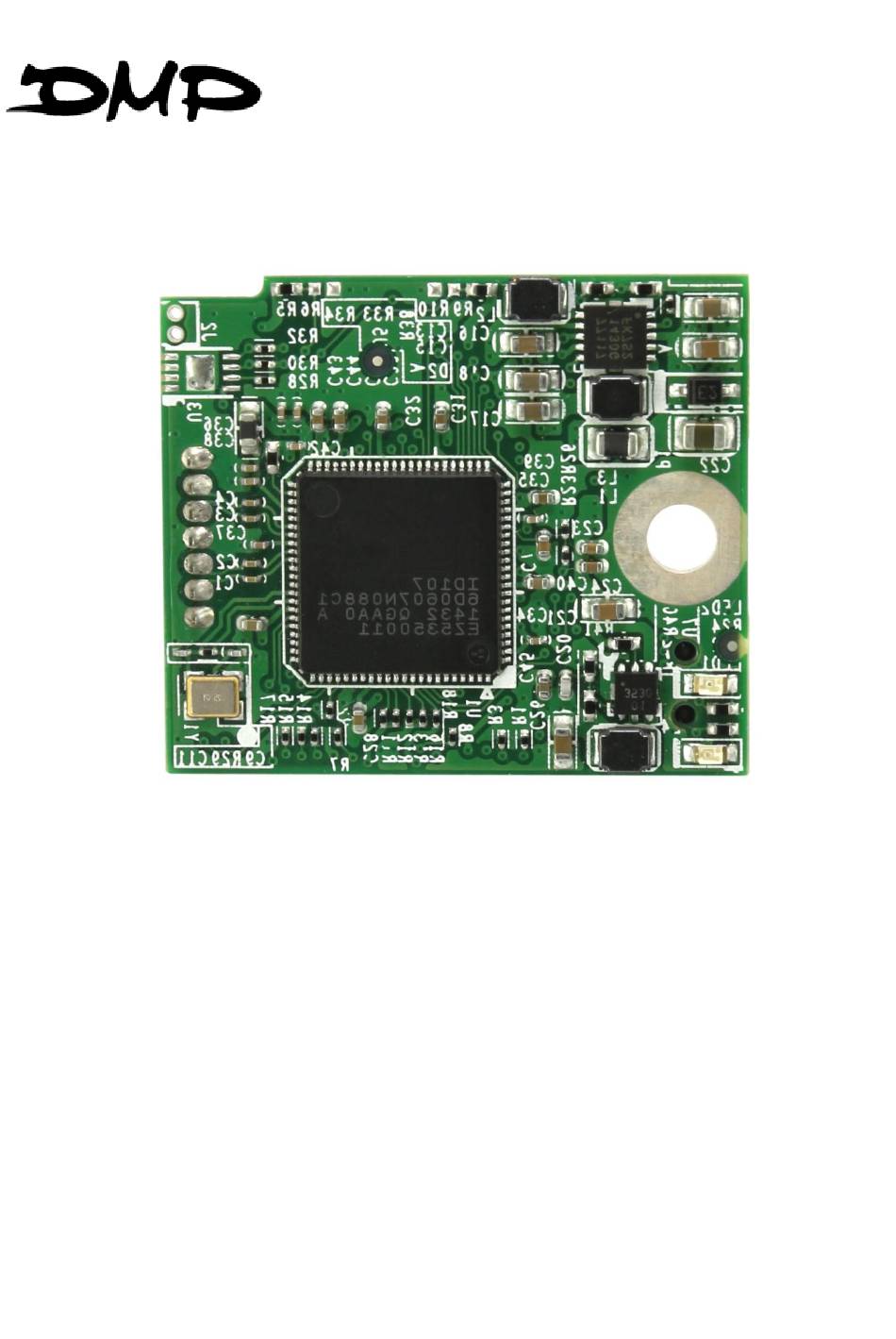

  • Page 1 ISATA Disk on Module Version 1.5...
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior to written permission of DMP Electronics Inc. ⒸCopyright 2017 DMP Electronics Inc Trademarks Acknowledgement ISATA is the registered trademark of DM&P Electronics Inc.
  • Page 3 Remark March, 2015 17nm ISATA first release March, 2017 15nm ISATA first release Function Correction: ISATA DoM July, 2017 doesn’t support +5V DC power supply on the 7 pin. Error Correction for Dec., 2017 SLC-type ISATA DoM DMP Electronics Inc.

  • Page 4: Table Of Contents

    2.7 Reliability ............................5 2.8 Transfer Mode ..........................5 2.9 Pin Assignment ..........................6 2.10 Mechanical Dimensions ........................ 6 2.11 Assembly Weight ..........................6 2.12 Seek Time ............................7 2.13 Hot Plug ............................7 2.14 NAND Flash Memory ........................7 DMP Electronics Inc.
  • Page 5 3.5 Bad Blocks Management ........................ 9 3.6 Power Cycling ..........................10 3.7 Garbage Collection ........................10 Installation Requirements ......................11 4.1 DMP ISATA Pin Directions ......................11 4.2 Electrical Connections for ISATA ....................11 4.3 Device Drive ........................... 11 DMP Electronics Inc.

  • Page 6: Product Overview

    ISATA-1G-H-S ISATA-8G-H-S ISATA-16G-H-M ISATA-2G-H-S ISATA-16G-H-S ISATA-32G-H-M ISATA-4G-H-S Wide Temperature Version (-40℃~+85℃): ISATA-8G-H-M-X ISATA-1G-H-S-X ISATA-8G-H-S-X ISATA-16G-H-M-X ISATA-2G-H-S-X ISATA-16G-H-S-X ISATA-32G-H-M-X ISATA-4G-H-S-X 1.3 SATA Interface DMP ISATA DoM supports SATA III interface, and compliant with SATA I and SATA II. DMP Electronics Inc.

  • Page 7: Product Specifications

    20MB/s 40MB/s ISATA Type SLC Capacity 16GB Sequential Read (max.) 23MB/s 24MB/s 220MB/s 250MB/s 290MB/s Sequential Write (max.) 9MB/s 18MB/s 50MB/s 60MB/s 120MB/s Note: the information is based on CrystalDiskMark 3.01 with file size 1000MB test patent DMP Electronics Inc.

  • Page 8: Electrical Specifications

    * Target: ISATA-16H-M-X 2.4 Environmental Specifications 2.4.1 Temperature Rangers Table 5: Temperature range for ISATA Temperature Range Standard Grade: 0°C to 70°C Operating Wide-Temperature Grade: -40°C to +85°C Storage -55°C to +95°C 2.4.2 Humidity Relative Humidity: 10-95%, non-condensing DMP Electronics Inc.

  • Page 9: Shock And Vibration

    Table 7: ISATA-16-H MTBF Product Condition MTBF (Hours) DMP ISATA Telcordia SR-332 GB, 25°C >3,000,000 2.5 CE and FCC Compatibility DMP ISATA confirmed to CE and FCC requirements. 2.6 RoHS Compliance DMP ISATA is fully compliant with RoHS directive. DMP Electronics Inc.

  • Page 10: Reliability

    54 (Sequential write) 108 (Sequential write) 216 (Sequential write) 432 (Sequential write) 16GB 8664 (Sequential write) 2.8 Transfer Mode DMP ISATA support following transfer mode: Serial ATA I 1.5Gbps Serial ATA II 3.0Gbps Serial ATA III 6.0Gbps DMP Electronics Inc.

  • Page 11: Pin Assignment

    Differential signal to B- Differential signal to B Pin 6 Differential signal to B Pin 7 Shielding (+5V) 2.10 Mechanical Dimensions Dimension tolerance: ± 0.2mm 2.11 Assembly Weight A DMP ISATA within flash ICs, 16GB weight is 7 grams approximately. DMP Electronics Inc.

  • Page 12: Seek Time

    Surprise hot removal: The removal of a SATA device from a powered backplane, without first being placed in a quiescent state. 2.14 NAND Flash Memory DMP ISATA-H-S-X uses Single Level Cell (SLC) NAND flash memory, and DMP ISATA-H-M-X uses Multi Level Cell (MLC) NAND flash memory. DMP Electronics Inc.

  • Page 13: Theory Of Operation

    DMP ISATA is designed with ID 107, a SATA III 6.0Gbps (Gen. 3) controller. The Serial ATA physical, link and transport layers are compliant with Serial ATA Gen 1, Gen 2 and Gen 3 specification (Gen 3 supports. 5Gbps/3.0Gbps/6.0Gbps data rate). The controller has 2 channels for flash interface. DMP Electronics Inc.

  • Page 14: Error Detection And Correction

    The SSD implement Bad Blocks management, Bad Blocks replacement, Error Correct Code to avoid data error occurred. The functions will be enabled automatically to transfer data from Bad Blocks to spare blocks, and correct error bit. DMP Electronics Inc.

  • Page 15: Power Cycling

    SSDs. It runs as a background process, freeing up valuable controller resources while sorting good data into available blocks, and deleting bad blocks. It also significantly reduces write operations to the drive, thereby increasing the SSD’s speed and lifespan. DMP Electronics Inc.

  • Page 16: Installation Requirements

    1meter. The SATA interface has a separate connector for the power supply. Please refer to the pin description for further details. 4.3 Device Drive No additional device drives are required. The DMP ISATA can be configured as a boot device. DMP Electronics Inc.
