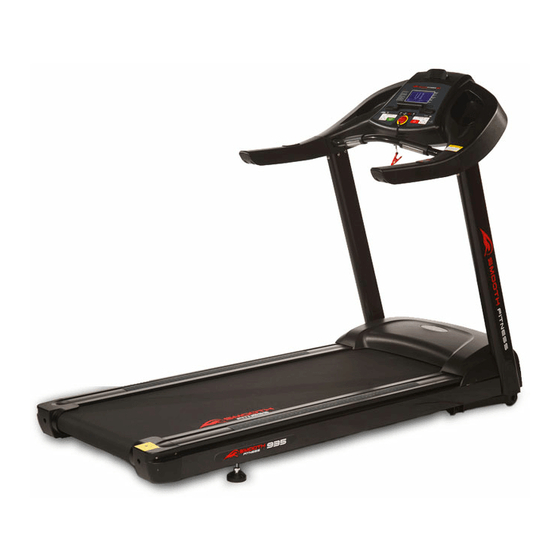

Smooth Fitness 935 User Manual

Motorized treadmill
Hide thumbs

Advertisement

Table of Contents

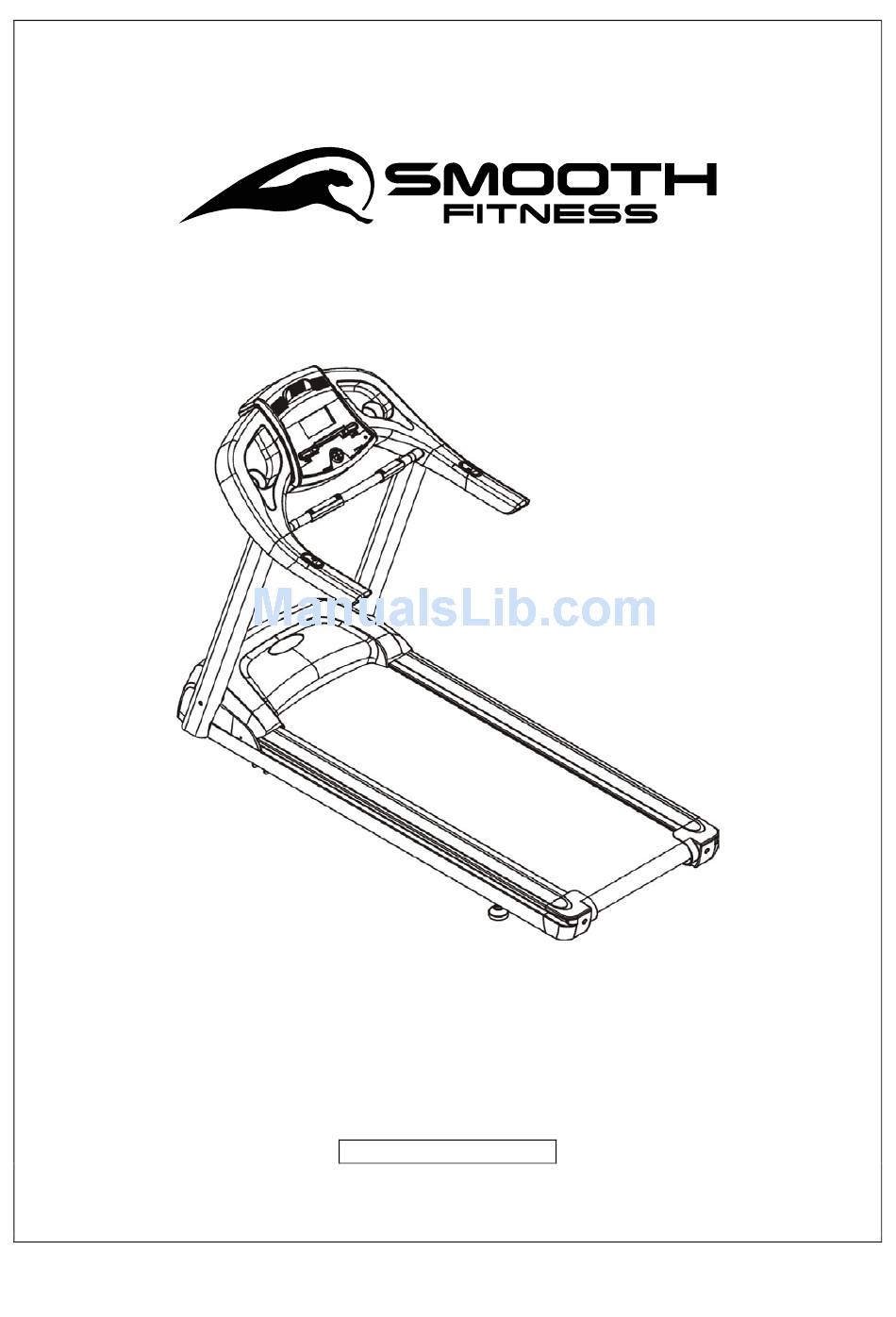

USER'S MANUAL
935 MOTORIZED TREADMILL
USER WEIGHT LIMITATION: 400lbs(181kgs).
SERIAL NUMBER (found on frame):

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 935 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Smooth Fitness 935

Summary of Contents for Smooth Fitness 935

  • Page 1 USER’S MANUAL 935 MOTORIZED TREADMILL USER WEIGHT LIMITATION: 400lbs(181kgs). SERIAL NUMBER (found on frame):...
  • Page 2 935i TREADMILL PRECAUTIONS For future service or related questions: Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your treadmill. Name: ______________________________ Phone Number: ___________________ Receipt: ______________________ Precautions: WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and information before operating the treadmill.
  • Page 3 www.smoothfitness.com PRECAUTIONS Pour réparations futures ou questions connexes : Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your treadmill. Name: ______________________________ Phone Number: ___________________ Receipt: ______________________ Précautions: AVERTISSEMENT : Pour réduire les risques de brûlures, d’incendie, de choc électrique ou de blessures aux personnes, lire les précautions importantes et l’information suivantes avant de se servir du tapis roulant.

  • Page 4: Power Requirements

    935i TREADMILL POWER REQUIREMENTS Power Requirements: IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN THE RISK OF AN ELECTRIC SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS TO WHETHER THE PRODUCT IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH THE PRODUCT, IF IT WILL NOT FIT THE OUTLET;...
  • Page 5 www.smoothfitness.com POWER REQUIREMENTS Alimentation : UN MAUVAIS BRANCHEMENT DU CONNECTEUR DE MISE À LA TERRE DE L’ÉQUIPEMENT POURRAIT PROVOQUER UN CHOC ÉLECTRIQUE. EN CAS DE DOUTE, CONSULTER UN ÉLECTRICIEN OU UN RÉPARATEUR QUALIFIÉ POUR SAVOIR SI LE PRODUIT EST CORRECTEMENT MIS À LA TERRE. NE PAS MODIFIER LA FICHE FOURNIE AVEC LE PRODUIT. SI ELLE N’ENTRE PAS DANS LA PRISE, FAIRE INSTALLER UNE PRISE APPROPRIÉE PAR UN ÉLECTRICIEN PROFESSIONNEL.

  • Page 6: Before You Begin

    935i TREADMILL BEFORE YOU BEGIN Open the boxes: Open the boxes of your new equipment. Inventory all parts included in the boxes, and Supplied Hardware lists on pages 7 for a full count of the parts included. If you are missing any parts or have any questions contact us directly at 888-800-1167 Gather your tools: Before you begin, make sure that you have gathered all the necessary tools you may require to assemble the unit...
  • Page 7 www.smoothfitness.com SUPPLIED COMPONENTS / SUPPLIED HARDWARE This list identifies the major components you will use to assemble this product. Description Qty. Treadmill Base Console Assembly 935i -301 Right Upright 935i -302 Left Upright 935i -306 Right Handle Bar 935i -307 Left Handle Bar Hardware Kit 935i -303...

  • Page 8: Complete Parts List

    935i TREADMILL COMPLETE PARTS LIST Item No. Description Qty. 935i -100 Lift arm 935i - Rear wheel 935i - Bolt M10*70mm 935i - Washer M10 935i - Wheel axle center 935i - Nut M10 935i - Adjustment pad 935i - Bolt M8*20mm 935i - Running deck frame...
  • Page 9 www.smoothfitness.com COMPLETE PARTS LIST Item No. Description Qty. Tooth plate 935i - Rubber cushion-2 935i - Drive belt 935i - Front roller 935i - Bolt M8*35mm 935i - Rear roller 935i - S Washer M8 935i - Bolt M8*70mm 935i - Running deck 935i - Running belt...
  • Page 10 935i TREADMILL Item No. Description Qty. 935i -200 935i -201 Console frame 935i -202 Hand pulse upper cover 935i -203 Hand pulse lower cover 935i -204 Bolt M3*20mm 935i -205 Hand pulse plate 935i -206 Upper console cover 935i -207 Console housing 935i -208 Panel, console...
  • Page 11 www.smoothfitness.com COMPLETE PARTS LIST Item No. Description Qty. 935i -300 935i -301 Right upright 935i -302 Left upright 935i -303 Bolt M8*15mm 935i -304 M8 curve washer 935i -305 M8 washer 935i -306 Right handle bar 935i -307 Left handle bar...

  • Page 12: Parts Diagram

    935i TREADMILL PARTS DIAGRAM MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED...
  • Page 13 www.smoothfitness.com PARTS DIAGRAM MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
  • Page 14 935i TREADMILL PARTS DIAGRAM A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.

  • Page 15: Assembly - Please Read All Steps Before Beginning Your Work

    www.smoothfitness.com ASSEMBLY – PLEASE READ ALL STEPS BEFORE BEGINNING YOUR WORK. STEP 1: 1). Remove the motor cover(166) screws. Screw location...
  • Page 16 935i TREADMILL ASSEMBLY STEP 2: Attach the Console Mast to the Base Frame. NOTE: Make sure all wires are recessed into the frame. DO NOT trap or pinch the wires. DO NOT tighten any bolts until STEP4. Before attaching the Right upright (301) first wrap the fish wire (preinstalled from the factory in the right upright) to the computer data wire located on the base frame.fish wire in the upright.
  • Page 17 www.smoothfitness.com ASSEMBLY STEP 3: Place the motor cover(166) back on tot the treadmill base. 2). Do not install the screws until after step four has been completed.
  • Page 18 935i TREADMILL ASSEMBLY STEP 4: Attach the Handle Bars 1). Connect handlebar button wire (223) to the console set handlebar button wire. 2). Attach the right and left handle bar and secure using the 4 x M8x15mm bolt (303) with M8 Washer (305). Assembly is now complete.
  • Page 19 www.smoothfitness.com ASSEMBLY STEP 5: Attach the Console to the Left and Right Uprights Make sure all wires are recessed into the frame. DO NOT trap or pinch the wires. 1). Connect the Upper Console Wires from the console set to the Lower Console Wires in the right upright, each connector are different sizes so each connector will only connect to its proper match.
  • Page 20 935i TREADMILL ASSEMBLY STEP 6: 1). Attach the power cord (133) to the front of the treadmill base.
  • Page 21 www.smoothfitness.com ASSEMBLY STEP 7: Insert Safety Key (232) into Bottom Center of Console prior to operation. Your treadmill will not Function without the safety key.
  • Page 22 Your treadmill should not have to be lubricated usually within 3 months. Smooth Fitness recommends lubricating the walking deck a minimum of twice a year for light use (2 days a week) and four times a year for heavier use(3 times a week multiple users) Please visit www.smoothfitness.com...
  • Page 23 www.smoothfitness.com MAINTAINENCE To apply lubricant under the walking belt: 1. Position the walking belt so that the seam is located on top and in center of the walking board. 2. Insert the nozzle of the lubricant container under the belt 3.

  • Page 24: Important Steps

    935i TREADMILL IMPORTANT STEPS Warning: Before using this product, please consult your personal physician for a complete physical examination. Frequent and strenuous exercise should be approved by your doctor first. If any discomfort should result from your use of this product, stop exercising and consult your doctor.

  • Page 25: Muscle Chart

    www.smoothfitness.com MUSCLE CHART Targeted muscle groups: The exercise routine that is performed on this product will develop primarily lower body muscle groups. These muscle groups are shown in gray color on the chart below. MUSCLE GROUPS Shoulder muscles Calf muscles Pectoral muscles Trapezius muscles Bicep muscle...

  • Page 26: Stretching Routine

    935i TREADMILL STRETCHING ROUTINE Warm up and cool down: A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down. Do the entire program at least two and preferably three times a week, resting for a day between workouts. After several months, you can increase your workouts to four or five times per week.
  • Page 27 www.smoothfitness.com STRETCHING ROUTINE Read carefully the following before using your treadmill ♦ Always stretch your muscles before exercise program. Warm up slowly by walking at a slow speed. Increase workout intensity gradually until you reach your desired workout pace. Decrease workout intensity gradually to an easy walk, allowing your heart rate to decrease to a normal situation.

  • Page 28: Computer Operation

    935i TREADMILL COMPUTER OPERATION Dot-matrix Safety Key Pad If the safety key is not present the treadmill will not function...
  • Page 29 www.smoothfitness.com COMPUTER OPERATION Display Function: Program Displays program selection. Gender Displays set gender. M= Male, F=Female Calories Displays calories burned. Displays set age value. Heart Rate Displays hand grip and wireless Heart Rate reading. Weight Displays set weight value. Speed Displays the running speed.
  • Page 30 To set up your account, refer to the instructions in the Getting Started Guide contained in your Smooth Fitness customer care kit or visit www.my smoothtrainer.com *Not all Smooth Fitness products include the Smooth Customer Care Kit...
  • Page 31 www.smoothfitness.com COMPUTER OPERATION SET UP USRE PROFILE MODE: At first, the LCD will show U1, and will also display only factory default setting values for user Gender, Weight, Height, and Age. Press the Speed ─ / ┼ to choose the user number from 1 to 4 and press the Enter button to assign the user number shown.(If you insert the USB for iHP, system will read the user’s profile from USB and show them on the display) Select from 1 of 4 user profiles.
  • Page 32 935i TREADMILL COMPUTER OPERATION P2 Program: 1. Press 【Program Select】key to select 【PROGRAM】 then press enter to enter the program. There are 21 preset programs. 2. Press the Speed ㄧ / 十 to change the program 【 】、【 】、【 SPEED WEIGHT LOSS SPEED ROLLING HILLS SPEED 】、【...
  • Page 33 www.smoothfitness.com COMPUTER OPERATION SPEED TRAINING INTERVAL： Each Level speed value (incline=0) Seg. SPEED SUMMIT： Each Level speed value (incline=0) Seg. ENDURANCE TRAINING SPEED INTERVAL： Each Level speed value (incline=0) Seg.
  • Page 34 935i TREADMILL COMPUTER OPERATION SPEED STRENGTH： Each Level speed value (incline=0) Seg. COUNTRY RUN： Each Level speed value (incline=0) Seg. GRADUATING SPEED INTERVAL： Each Level speed value (incline=0) Seg.
  • Page 35 www.smoothfitness.com COMPUTER OPERATION INCLINE WEIGHT LOSS： Each Level incline value (speed=0.6mph) Seg. INCLINE ROLLING HILLS： Each Level incline value (speed=0.6mph) Seg. INCLINE TRAINING INTERVAL： Each Level incline value (speed=0.6mph) Seg.
  • Page 36 935i TREADMILL COMPUTER OPERATION ENDURANCE TRAINING INCLINE INTERVAL： Each Level incline value (speed=0.6mph) Seg. MOUNTAIN SUMMIT： Each Level incline value (speed=0.6mph) Seg. INCLINE STRENGTH： Each Level incline value (speed=0.6mph) Seg.
  • Page 37 www.smoothfitness.com COMPUTER OPERATION COUNTRY HIKE： Each Level incline value (speed=0.6mph) Seg. GRADUATING HILLS： Each Level incline value (speed=0.6mph) Seg. VALLEY RUN： Each Level speed & incline value Seg.
  • Page 38 935i TREADMILL COMPUTER OPERATION CROSS TRAINING： Each Level speed & incline value Seg. COMBINATION INTERVAL TRAINING： Each Level speed & incline value Seg.
  • Page 39 www.smoothfitness.com COMPUTER OPERATION CROSS COUNTRY： Each Level speed & incline value Seg. MOUNTAIN JOG： Each Level speed & incline value Seg.
  • Page 40 935i TREADMILL COMPUTER OPERATION P3 HRC(Heart Rate Control): 1. Press【Program Select】to select the【HRC】program and press enter. 2. There are 4 types of HRC program. TARGET H.R., FAT BURN, CARDIO, PERFORMANCE, press Speed ㄧ / 十 to select the desired HRC program then press【Enter】to confirm. 3.
  • Page 41 www.smoothfitness.com HANDLE BUTTONS Handle buttons: Speed button Incline button...
  • Page 42 935i TREADMILL MUSIC JACK USAGE NOTE: High speaker volume may interfere with the heart rate accuracy. Please decrease the speaker volume when you are using the heart rate function. ※ Warning: After removing the safety key, wait for 5 seconds to re-insert in. USB Charger：...

  • Page 43: Troubleshooting

    www.smoothfitness.com TROUBLESHOOTING SYMPTOM CAUSE SOLUTION Please check power input and fuse. A). Not plugged in. Contact your dealer if unit is plugged in, No power to display B). Power switch not activated powered on and circuit breaker is C). Power input circuit breaker blown. depressed.

  • Page 44: Limited Warranty

    Smooth Fitness will provide a replacement part free of charge if a defect is found during the Warranty period. Smooth Fitness may at its discretion, choose to provide any of following parts or repair options. In the event that a part is determined in need of replacement, upon receipt of the part by Smooth Fitness, Smooth Fitness may send out the part by UPS ground or another such carrier directly to the customer’s home.
  • Page 45 mooth Fitness 780 5 King of Prussia, PA 19406 Toll Free Customer Service: 1.888.800.1167 Website: www.smoothfitness.com Copyright  2005 Greenmaster Industrial Corp. All rights reserved.
