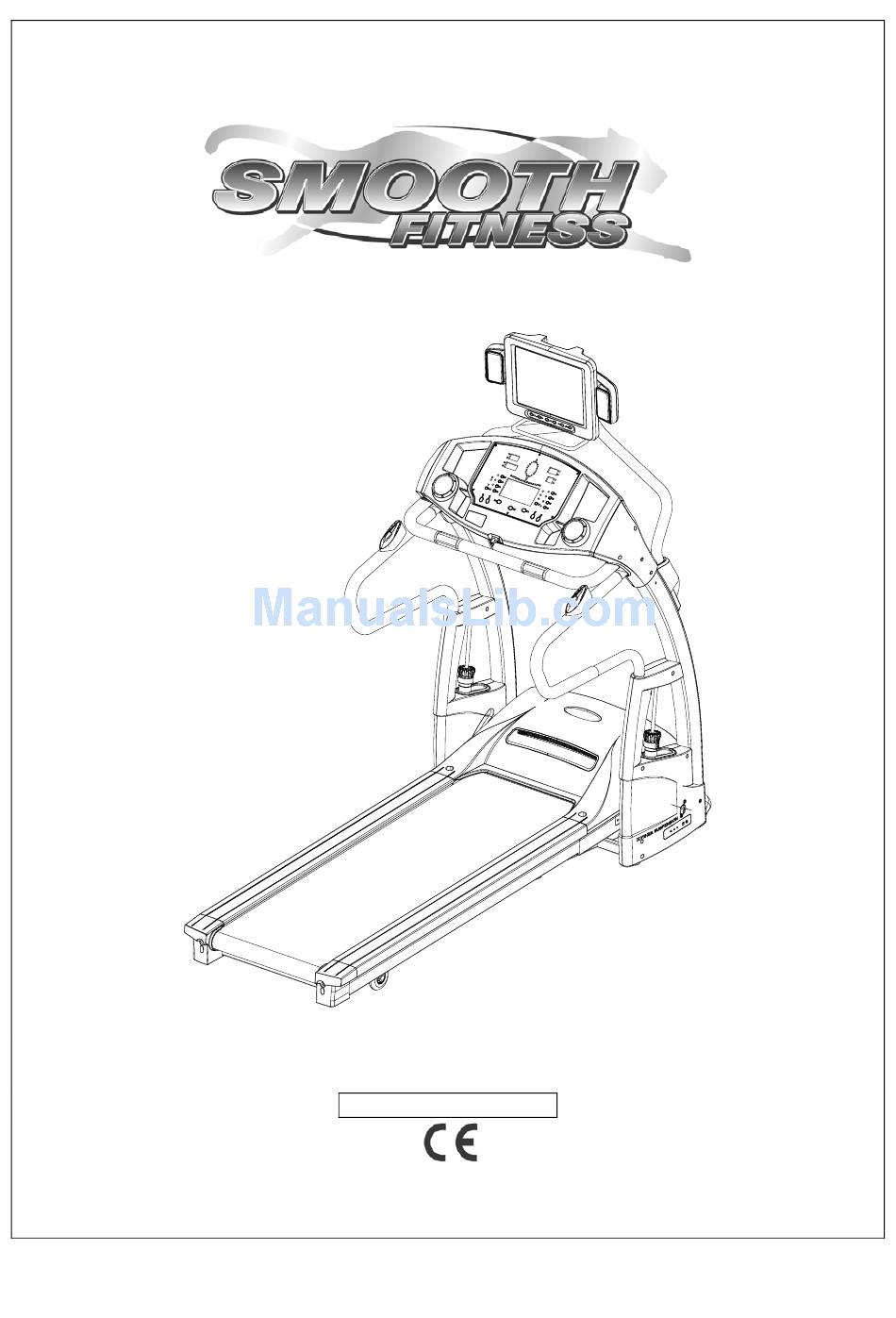

USER'S MANUAL
9.45TV MOTORIZED TREADMILL
USER WEIGHT LIMITATION: 400lbs(182kgs).
SERIAL NUMBER (found on frame):

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9.45TV and is the answer not in the manual?

Questions and answers

Related Manuals for Smooth Fitness 9.45TV

Summary of Contents for Smooth Fitness 9.45TV

  • Page 1 USER’S MANUAL 9.45TV MOTORIZED TREADMILL USER WEIGHT LIMITATION: 400lbs(182kgs). SERIAL NUMBER (found on frame):...
  • Page 2 • Place on a level surface, with 6 feet (2 m) of clearance behind it. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

  • Page 3: Www.smoothfitness.com

    110VAC, 15 amps. This treadmill must be grounded to reduce the risk of electrical shock. Grounding provides a path of least resistance for electric current, should the treadmill malfunction. This treadmill is equipped with an electrical cord that has an equipment-grounding conductor and a grounding plug.

  • Page 4: Before You Begin

    Always check the wear and tear components like pulley, belts, etc.…To prevent injury. There is an emergency stop, in the form of a SAFETY KEY, to prevent injury; you can stop the treadmill immediately y actuating the emergency stop for emergency...

  • Page 5: Supplied Components

    SUPPLIED COMPONENTS This list identifies the major components you will use to assemble this product. Description Computer Front Handlebar Assembly Handlebar Upright Assembly Left Upright Assembly Right Main Frame Assembly Chest Belt Power Cord Running belt Lubrication Adjustable Cylinder Upright Cover - LL Upright Cover - LR Upright Cover - RL Upright Cover - RR...

  • Page 6: Supplied Hardware

    9.45TV TREADMILL SUPPLIED HARDWARE This list identifies the hardware you will use to assemble the product. To help distinguish between the various types of screws and bolts, use the scale below to measure them and compare them to he sizes listed.
  • Page 7 SUPPLIED COMPONENTS These instructions are for the TV attachment. Prior to assembling the TV attachment, lease follow the product assembly instructions to complete the treadmill assembly. TV attachment parts list : Description TV screen TV screen suspension pad M6 × 10 Bolt TV bracket M5 ×...

  • Page 8: Complete Parts List

    9.45TV TREADMILL COMPLETE PARTS LIST Item No. Description Complete Computer Console 9.45TV-100 Overlay Computer Insert Console PC Board Console Housing – Upper Console Housing – Bottom Safety Key Base Safety Key Safety Key Wire – Upper Computer Wire – Upper Computer Ground Wire Hand Pulse Wire –...
  • Page 9 Upright Plastic Shroud – LR Upright Plastic Shroud – RL Upright Plastic Shroud – RR Adjustable Cylinder Cover - Upper Fixing Inserts Complete Base Frame Components 9.45TV-400 Base Frame Safety Key Wire – Lower Computer Wire –Lower Power Switch Plate Cover Power Switch Plate...
  • Page 10 9.45TV TREADMILL COMPLETE PARTS LIST Item No. Description Elevation Support Tube Elevation Support Tube Cover - LEFT Motor Bottom Cover Deck Frame Side Cover - LEFT Plastic Clamp - TOP Plastic Clamp - BOTTOM Elevation Support Deck Rubber Cushion Rear Vent Cover Elevation Support Tube Cover - RIGHT Deck Frame Side Cover –...
  • Page 11 M6 × 10mm Screws M10 × 30mm Allen Head Bolt M8 × 15mm Allen Head Bolt 13 × 42mm Shaft #8 × 23mm Washer M5 x 12mm Flat Head Bolt www.smoothfitness.com Qty. Part No. 9.45TV-804 9.45TV-805 9.45TV-806 9.45TV-807 9.45TV-808 9.45TV-809 9.45TV-813 9.45TV-814 9.45TV-816 9.45TV-817...

  • Page 12: Parts Diagram

    9.45TV TREADMILL PARTS DIAGRAM MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED...
  • Page 13 www.smoothfitness.com PARTS DIAGRAM MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
  • Page 14 9.45TV TREADMILL PARTS DIAGRAM A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.
  • Page 15 www.smoothfitness.com PARTS DIAGRAM MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
  • Page 16 9.45TV TREADMILL PARTS DIAGRAM MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
  • Page 17 www.smoothfitness.com PARTS DIAGRAM MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
  • Page 18 9.45TV TREADMILL PARTS DIAGRAM MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
  • Page 19 (B)Remove the treadmill and all the components and hardware from the box. (C)Check the quantities of all components and hardware with the component and hardware lists on pages 5-6 (D) After verifying inventory if there are any missing parts please contact Smooth fitness at 1-888-800-1167. www.smoothfitness.com...
  • Page 20 9.45TV TREADMILL ASSEMBLY STEP 2:Assemble Upright Frame NOTE: Make sure all wires are recessed into the frame. DO NOT trap or pinch DO NOT tighten bolts until STEP13 (A) Connect the Lower and middle section wire as seen below (307 to 402)(308 to 403) (B) Insert any extra cable length into the Left Upright (301).
  • Page 21 www.smoothfitness.com ASSEMBLY STEP 3: Assemble the TV Left Support tube (A) Loose the M5 x 12mm Screws(847) and remove the TV support tube cover(16) (B) Loose the M8 x50mm bolts(805) and remove the TV Support bracket(21) (C) Attach the TV bracket support tube(15) to the Left and Right Upright. (D) Attach one TV support bracket(21) onto the left upright and Secure with the two M8 x50mm bolts (805) (E) Find the 8pins wire(18) and the TV cable wire(19) from TV bracket support...
  • Page 22 9.45TV TREADMILL ASSEMBLY STEP 4:Connect the TV wire and assemble I/O Console (A) Pull out the Left Upright(301) and put the TV 8pin wire(18) and TV Cable wire(19) out from the lower hole on Base Frame(401) (B) Connect the TV 8pin wire(18) and TV Cable wire(19) to the I/O console(425).
  • Page 23 ASSEMBLY STEP 5: Attaching the Support Tube Cover (A) Attach the Right TV support bracket and Secure the TV support bracket with two M8 x 50mm(805) (B) Attach the TV support tube cover(16) and Secure them with the M5 x 12mm bolt(847) www.smoothfitness.com...
  • Page 24 9.45TV TREADMILL ASSEMBLY Assemble the Side Handlebars STEP 6: NOTE: Side rails are interchangeable for use on both right and left sides. Make sure all wires recessed into the frame. DO NOT trap or pinch. (A) Connect the Left Motion Control lower wire to the middle wire (207 to 309 ).
  • Page 25 www.smoothfitness.com ASSEMBLY STEP 7: Assemble Front Handlebar (A) Place the front handlebar (203) on top of the left and right uprights (301) (B) Now secure the front handle bar with four M8 x 50mm bolts(805) (C) Tighten all handlebar hardware (be sure not to pinch wires).
  • Page 26 9.45TV TREADMILL ASSEMBLY Attaching the Upright Cover and connect Computer Cable STEP 8: NOTE: BE CAREFUL NOT TO DAMAGE THE WIRES WHEN SECURING THE UPRIGHT COVERS. (A) Attach the Right Upright Cover (304) to the Right Upright (301). (B) Secure the Right Upright Cover with two 4 × 15mm Thread Cutting Screw (807).
  • Page 27 ASSEMBLY STEP 9: Attach the Outside Upright Covers NOTE: CAREFULLY FOLD THE COMPUTER CABLES AND TUCK THEM BETWEEN THE PLASTIC RIDGES OF PARTS 304 AND 305 SO THEY WILL NO BE PINCHED. (A) Secure the ground wire(110) onto the Right upright with one 4 × 15mm Thread Cutting Screw(807).

  • Page 28: Adjustable Cylinder

    9.45TV TREADMILL ASSEMBLY STEP 10: Attach Adjustable Cylinder to treadmill frame WARNING: THE PATENTED HYDRASUSPENSION SYSTEM REQUIRES THE ADJUSTABLE CYLINDER TO BE TIGHT FITTING. PLEASE BE PATIENT WITH THIS ASSEMBLY STEP. (A) Put Adjustable Cylinder Cover-Upper (315) into Adjustable Cylinder (310).

  • Page 29: Upright Plastic Shroud - Ll

    ASSEMBLY STEP 11: Assembly the Front Plastic Shrouds (A) Attach the outer Left Upright Plastic Shroud - LL (311) , the inner Left Upright Plastic Shroud - LR (312) and the Adjustable Cylinder Cover – Upper（315）to the Left Upright - L (301) and secure with five M8 x 20mm Screws (806) and five Thread Cutting Screw (807).
  • Page 30 9.45TV TREADMILL ASSEMBLY STEP 12: TV Screen Assemble the NOTE: READ THE TFT LCD MONITOR USER MANUAL ON PAGE 6 BEFORE ACCEMBLE TV SCREEN. (A) Place the TV Screen on top of the TV bracket (B) Secure the TV screen with two M5 x 10 mm (5)
  • Page 31 www.smoothfitness.com ASSEMBLY Securing of the Upright Tubes STEP 13: NOTE: ONLY TURN BOLTS CLOCKWISE. The Allen Bolt Sets (412) have been pre-assembled in the Base Frame(401). (A) Secure The Upright Tubes by tightening the Allen Bolt (412), located in the Upright Tube, clockwise.

  • Page 32: Stabilizer Adjustment

    FOLLOW THESE INSTRUCTIONS TO LEVEL YOUR TREADMILL: An uneven floor or improper stabilizer level can cause the treadmill to wobble during use as well as the incline adjustment to function incorrectly. Please follow the procedure described below to make sure the treadmill stabilizer is adjusted correctly prior to use.

  • Page 33: Www.smoothfitness.com

    Serial Number Location Insert safety key The safety key must be inserted for the treadmill to function. The safety key clip should be worn at all times when the treadmill is in use. This safety feature is designed to prevent injury.

  • Page 34: Motion Control

    9.45TV TREADMILL MOTION CONTROL OPERATION MOTION CONTROL: Walking belt speed can be increased, decreased or stopped using the Motion Control sensors on the handlebars. To do this follow the instructions below: Press the button on the console to switch the motion control function on and off: •...

  • Page 35: Www.smoothfitness.com

    , 1/2 turn in the clockwise direction. Plug the power cord back into the surge protector and run the treadmill at 2.5 mph. You should now walk on the belt to determine if the belt is still slipping.
  • Page 36 While lifting the side of the walking belt, position the spray nozzle between the walking belt and the board approximately 6" from the front of the treadmill and as far to the center as possible. Apply the silicone spray to the walking board, moving from the front of the treadmill to the rear.

  • Page 37: Important Steps

    IMPORTANT STEPS Warning: Before using this product, please consult your personal physician for a complete physical examination. Frequent and strenuous exercise should be approved by your doctor first. If any discomfort should result from your use of this product, stop exercising and consult your doctor.

  • Page 38: Target Heart Rate

    9.45TV TREADMILL TARGET HEART RATE Finding your pulse: To make sure your heart is beating in its target zone, you’ll need to know how to monitor your heart rate. The easiest way is to feel the pulse in the carotid artery on either side of your neck, between the windpipe and the large neck muscles. Count the number of beats in ten seconds, and then multiply that number by six.

  • Page 39: Muscle Chart

    MUSCLE CHART Targeted muscle groups: The exercise routine that is performed on this product will develop primarily lower body muscle groups. These muscle groups are shown in gray color on the chart below. Shoulder muscles Pectoral muscles Bicep muscle Abdominal muscles Forearm muscles Quadricep muscles www.smoothfitness.com...

  • Page 40: Stretching Routine

    9.45TV TREADMILL STRETCHING ROUTINE Warm up and cool down: A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down. Do the entire program at least two and preferably three times a week, resting for a day between workouts. After several months, you can increase your workouts to four or five times per week.

  • Page 41: Power Switch

    Treadmill will not start: Symptom Treadmill will not power up Treadmill stops operation during use Treadmill will not incline(Power fold models only) Treadmill will not unfold Treadmill running belt moves slower than speed displayed on computer Treadmill running belt moves slower than speed...
  • Page 42 Smooth Fitness 780 Fifth Avenue, Suite 200 King of Prussia, PA 19406 Toll Free Customer Service: 1.888.800.1167 Website: www.smoothfitness.com...
