USER'S MANUAL

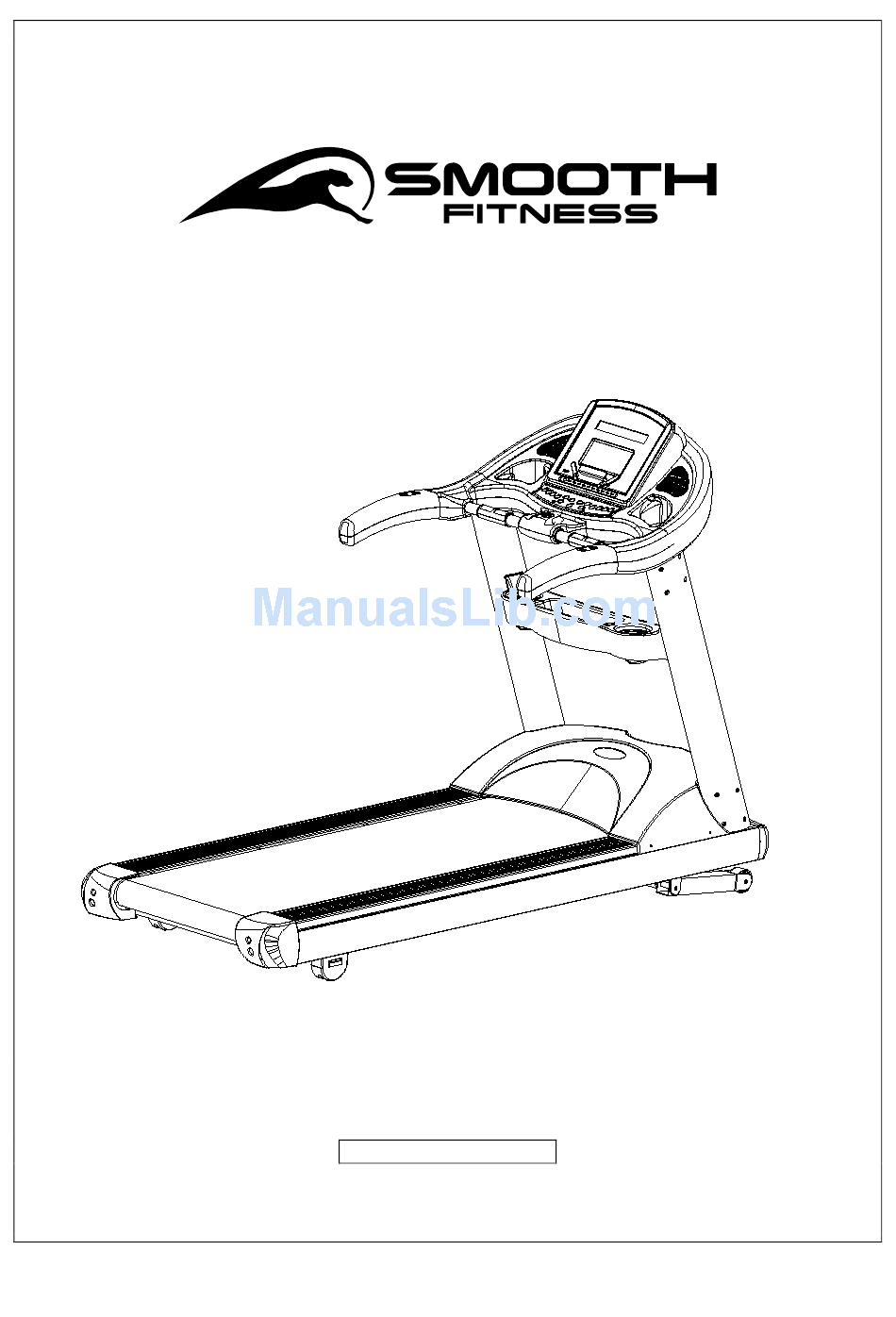

9.65LC MOTORIZED TREADMILL
User Weight Limitation: 400lbs(180kgs).
SERIAL NUMBER (found on frame):

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9.65LC and is the answer not in the manual?

Questions and answers

Валерий
May 20, 2025

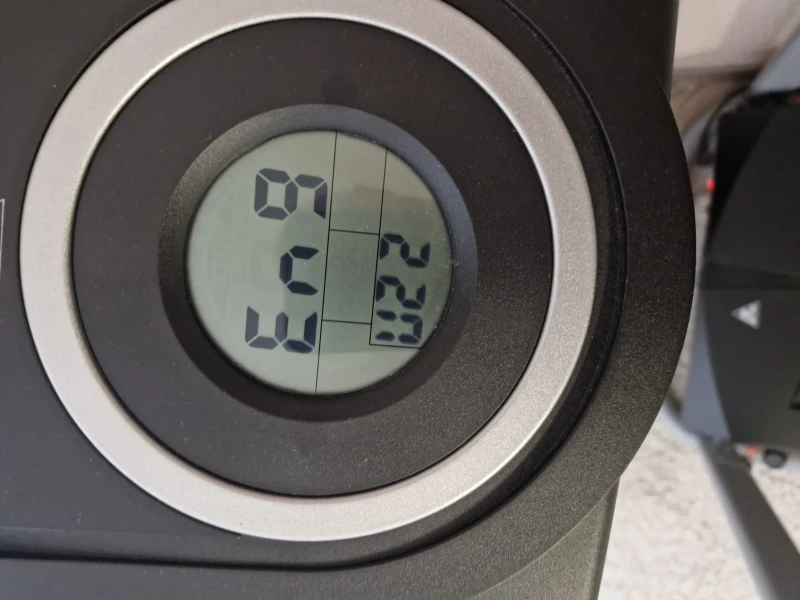

Не включается лента дорожки. При включении выплывает значек "En9"

User image 682c4c33ad38d
0
1 comments:
Mr. Anderson
May 24, 2025

The meaning of the "En9" error message for the Smooth Fitness 9.65LC treadmill is not provided in the given context.

This answer is automatically generated

0
Scott
June 24, 2025

What is the total weight of the treadmill?

0

Related Manuals for Smooth Fitness 9.65LC

Summary of Contents for Smooth Fitness 9.65LC

  • Page 1 REV 11011 USER’S MANUAL 9.65LC MOTORIZED TREADMILL USER WEIGHT LIMITATION: 400lbs(180kgs). SERIAL NUMBER (found on frame):...
  • Page 2 9.65 LC TREADMILL PRECAUTIONS For future service or related questions: Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your treadmill. Name: ______________________________ Phone Number: ___________________ Receipt: ______________________ Precautions: WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and information before operating the treadmill.
  • Page 3 www.smoothfitness.com PRECAUTIONS Pour réparations futures ou questions connexes : Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your treadmill. Name: ______________________________ Phone Number: ___________________ Receipt: ______________________ Précautions: AVERTISSEMENT : Pour réduire les risques de brûlures, d’incendie, de choc électrique ou de blessures aux personnes, lire les précautions importantes et l’information suivantes avant de se servir du tapis roulant.

  • Page 4: Power Requirements

    9.65 LC TREADMILL POWER REQUIREMENTS Power Requirements: IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN THE RISK OF AN ELECTRIC SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS TO WHETHER THE PRODUCT IS PROPERLY GROUNDED.
  • Page 5 www.smoothfitness.com POWER REQUIREMENTS Alimentation : UN MAUVAIS BRANCHEMENT DU CONNECTEUR DE MISE À LA TERRE DE L’ÉQUIPEMENT POURRAIT PROVOQUER UN CHOC ÉLECTRIQUE. EN CAS DE DOUTE, CONSULTER UN ÉLECTRICIEN OU UN RÉPARATEUR QUALIFIÉ POUR SAVOIR SI LE PRODUIT EST CORRECTEMENT MIS À LA TERRE. NE PAS MODIFIER LA FICHE FOURNIE AVEC LE PRODUIT. SI ELLE N’ENTRE PAS DANS LA PRISE, FAIRE INSTALLER UNE PRISE APPROPRIÉE PAR UN ÉLECTRICIEN PROFESSIONNEL.
  • Page 6 9.65 LC TREADMILL BEFORE YOU BEGIN Open the boxes: Open the boxes of your new equipment. Inventory all parts included in the boxes, and Supplied Hardware lists on page 7 for a full count of the parts included. If you are missing any parts or have any questions contact us directly at 888-800-1167 Gather your tools: Before you begin, make sure that you have gathered all the necessary tools you may require to assemble the unit...

  • Page 7: Hardware Kit

    www.smoothfitness.com SUPPLIED COMPONENTS / SUPPLIED HARDWARE This list identifies the major components you will use to assemble this product. Console crossbar Bottle Holder CONSOLE MAST MAIN BODY CONSOLE HARDWARE KIT GPIB HARDWARE KIT M4x15 Cross self-tapping M10x15 HEX HEAD BOLT20pcs screws 8pcs washer 20pcs Allen wrench 1 pcs...
  • Page 8 9.65 LC TREADMILL COMPLETE PARTS LIST ITEM DESCRIPTION ITEM DESCRIPTION 9.65LCi-01 main frame 9.65LCi-48 Nut 10 9.65LCi-02 transformer 9.65LCi-49 bolt M10*115mm 9.65LCi-03 filter 9.65LCi-50 washer 9.65LCi-04 Control pcb 9.65LCi-51 incline frame 9.65LCi-05 screw M4*10mm 9.65LCi-52 bushing 9.65LCi-06 Nut 4 9.65LCi-53 Moving wheel 9.65LCi-07 screw M4*14mm...
  • Page 9 www.smoothfitness.com COMPLETE DIAGRAM Console Handle pulse Handle Console mast Bottle holder Motor cover Running belt Rear roller Transportation wheel Rear roller cover...
  • Page 10 9.65 LC TREADMILL COMPLETE PARTS DIAGRAM 2...
  • Page 11 www.smoothfitness.com ASSEMBLY – PLEASE READ ALL STEPS BEFORE BEGINNING YOUR WORK. STEP1: Assemble Console Mast to Base Frame. NOTE: Make sure all wires are recessed into the frame. DO NOT trap or pinch. DO NOT tighten bolts until STEP2. When attaching the Right upright (59) first feed the Lower Console Wire through the upright.
  • Page 12 9.65 LC TREADMILL ASSEMBLY STEP2: Attach Console to Left and Right Uprights 1). Connect the Upper Console Wire (38) from the console set to Lower Console Wire (44) in the right upright, Then place the excess wire and the connectors into right upright.
  • Page 13 www.smoothfitness.com ASSEMBLY STEP3: Fasten protective cover on the upright 1) Attach the crossbar (84) between the left and right upright then secure using 4 x M8x20mm Bolts () and 4 x M8 washers (). 2) Tighten all bolts and fasteners now Console crossbar Tighten all bolts and fasteners now...
  • Page 14 9.65 LC TREADMILL ASSEMBLY STEP4: Assembly of the bottle holder to the cross bar Attach the Bottle holder to the crossbar, and secure using 8 x M4x15mm screws Tighten all bolts and fasteners now...
  • Page 15 www.smoothfitness.com ASSEMBLY STEP 5: 1) Turn power switch on 2) Insert the Safety Key (70) into the Bottom Center of Console prior to operation. Note:Your treadmill will not Function without the safety key. Power Switch...
  • Page 16 To set up your account, refer to the instructions in the Getting Started Guide contained in your Smooth Fitness customer care kit or visit www.my smoothtrainer.com *Not all Smooth Fitness products include the Smooth Customer Care Kit...
  • Page 17 www.smoothfitness.com COMPUTER OPERATION Computer Display Time 00:00-99:59 Min Speed 0.5-12.5 mile/h incline 0-15% Distance 0.00-99.9 mile Calories 0-999 KCAL Pulse 70-200 / Min Goal 0-100% 15-80 years Weight 88-400 lbs Level L1-L10 Mode P1-P14 Height 4.0-7.2ft Male ,female Target HR 50-190...
  • Page 18 9.65 LC TREADMILL COMPUTER OPERATION START (Quick Start): Press the “START “to begin your exercise PAUSE: Press the “STOP” button to pause the training. RESET: Press the “ STOP ” button for a few seconds to reset the computer to its default values.
  • Page 19 www.smoothfitness.com COMPUTER OPERATION ▲ / ▼ KEYS: Use to adjust the incline level up or down during the workout QUICK SPEED KEY: Use the quick speed keys to achieve the predetermined speed with the push of one button. QUICK INCLINE KEY: Use the quick incline keys to achieve the predetermined incline with the push of one button.

  • Page 20: Computer Operation

    9.65 LC TREADMILL COMPUTER OPERATION TIME LEVEL CARDIO FATBUN WEIGHT-LOSS INTERVAL RUNNING 28: 52 DISTANCE 9: 00 8. 0 12. 0 INCLINE MODE CALORIES WEIGHT SPEED GOAL PLUSE SPEED TIME Displays minutes and seconds of the elapsed or remaining time. DISTANCE Displays the completed or remaining distance in miles.
  • Page 21 MY Smooth Virtual Fitness Trainer USB device. Once complete simply plug in the MY Smooth Virtual Fitness Trainer USB device to you compatible Smooth Fitness exercise machine. Displayed on the equipment will be , your name, weight height and age. Press “START” button to begin your workout, the console will record your exercise data automatically, every 20 seconds, to your MY Smooth Virtual Fitness Trainer USB device.
  • Page 22 9.65 LC TREADMILL COMPUTER OPERATION Quick START: Press START,and the belt will begin to move. This program is a manual program, the user must adjust the speed and incline 1. The speed will begin at the lowest speed(0.5mph/0.8kph), the Incline will begin at Level 0, and all data will begin to count up.
  • Page 23 www.smoothfitness.com COMPUTER OPERATION P3 HILL This program is designed to provide varied hill programs that will automatically control the speed and incline. The program profile is pictured on page 23 P3 Hill Program Press Speed + / - until P2 is displayed in the computer window. Press select to confirm. Hill Program Selection To enter L1~L10 press the speed + /- until preferred program is displayed.
  • Page 24 9.65 LC TREADMILL COMPUTER OPERATION SPEED INCLINE...
  • Page 25 www.smoothfitness.com COMPUTER OPERATION P5 60% MAX HEART RATE This program is designed to interact with your heart rate based on 60% of you max heart rate using the 220-age-40%.. P5 60% MHR Program Press Speed + / - until P5 is displayed in the computer window. Press select to confirm. Enter Time To enter the time press the speed + /- until preferred time is displayed.
  • Page 26 9.65 LC TREADMILL COMPUTER OPERATION P6 75% MAX HEART RATE The program will begin at 1mph. Adjust the speed by using the speed + or – button to a comfortable rate as the treadmill will adjust the incline to help you achieve the target heart rate. The computer will read your heart rate and compare it to the preset target rate and adjust the incline up one level if the actual heart rate is 6 or more beats below the preset target.
  • Page 27 www.smoothfitness.com COMPUTER OPERATION P8 BODY FAT This program is designed to measure your BMI. NOTE: The below test results are estimated and are only meant to provide an estimated fitness keystone. Consult your health provider for accurate testing. P8 Body Fat Press Speed + / - until P8 is displayed in the computer window.
  • Page 28 9.65 LC TREADMILL COMPUTER OPERATION P9 FITNESS TEST GENDER VERY GOOD AVERAGE VERY BAD GOOD ＞1.74Mile ＜1.37Mile Male 1.55~1.74Mile 1.43~1.55Mile 1.37~1.43Mile 15~16 ＞1.30Mile ＜0.99Mile Female 1.24~1.30Mile 1.18~1.24Mile 0.99~1.18Mile ＞1.86Mile ＜1.43Mile Male 1.68~1.86Mile 1.55~1.68Mile 1.43~1.55Mile 17~20 ＞1.43Mile ＜1.06Mile Female 1.30~1.43Mile 1.12~1.30Mile 1.06~1.12Mile ＞1.74Mile ＜0.99Mile...
  • Page 29 The walking belt has been pre-lubricated at the factory. However, it is recommended that the walking board be checked periodically for lubrication to ensure optimal treadmill performance. Your treadmill should not have to be lubricated usually within 3 months. Smooth Fitness recommends lubricating the walking deck every 3 months Please visit www.smoothfitness.com...
  • Page 30 9.65 LC TREADMILL MAINTENANCE To apply lubricant to the walking belt: 1. Position the walking belt so that the seam is located on top and in center of the walking board. 2. Insert the nozzle of the lubricant container under the belt 3.
  • Page 31 www.smoothfitness.com IMPORTANT STEPS Warning: Before using this product, please consult your personal physician for a complete physical examination. Frequent and strenuous exercise should be approved by your doctor first. If any discomfort should result from your use of this product, stop exercising and consult your doctor. Proper usage of this product is essential. Please read your manual carefully before exercising.
  • Page 32 9.65 LC TREADMILL MUSCLE CHART Targeted muscle groups: The exercise routine that is performed on this product will develop primarily lower body muscle groups. These muscle groups are shown in gray color on the chart below. MUSCLE GROUPS Shoulder muscles Calf muscles Pectoral muscles Trapezius muscles...

  • Page 33: Stretching Routine

    www.smoothfitness.com STRETCHING ROUTINE Warm up and cool down: A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down. Do the entire program at least two and preferably three times a week, resting for a day between workouts. After several months, you can increase your workouts to four or five times per week.
  • Page 34 9.65 LC TREADMILL STRETCHING ROUTINE Read carefully the following before using your treadmill ♦ Always stretch your muscles before exercise program. Warm up slowly by walking at a slow incline. Increase workout intensity gradually until you reach your desired workout pace. Decrease workout intensity gradually to an easy walk, allowing your heart rate to decrease to a normal situation.

  • Page 35: Trouble Shooting Guide

    www.smoothfitness.com TROUBLESHOOTING TROUBLE SHOOTING GUIDE: SYMPTOM CAUSE SOLUTION Place the safety key into the operation Show E0 Safety key not in place position Please check Speed sensor and 10-pin Show E1 Speed signal error cable or contact your retailer Check the 10-pin cable or contact you Show E2 Motor or motor drive system error retailer...

  • Page 36: Limited Warranty

    Procedure for Obtaining Your Remedy Under This Warranty: To obtain service on a Smooth Fitness product, call Smooth Fitness. In the instance that service is not available in an area, Smooth Fitness, at its discretion, can either 1) find a service technician in your area to perform warranty service, 2) have a local dealer perform warranty service, or 3) send the warranty parts to you and reimburse as described above.
  • Page 37 mooth Fitness 780 5 King of Prussia, PA 19406 Toll Free Customer Service: 1.888.800.1167 Website: www.smoothfitness.com Copyright  2005 Greenmaster Industrial Corp. All rights reserved.
