USER'S MANUAL
9.65TV MOTORIZED TREADMILL
USER WEIGHT LIMITATION: 400lbs (180kgs).
SERIAL NUMBER (found on frame):

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9.65TV and is the answer not in the manual?

Questions and answers

Related Manuals for Smooth Fitness 9.65TV

Summary of Contents for Smooth Fitness 9.65TV

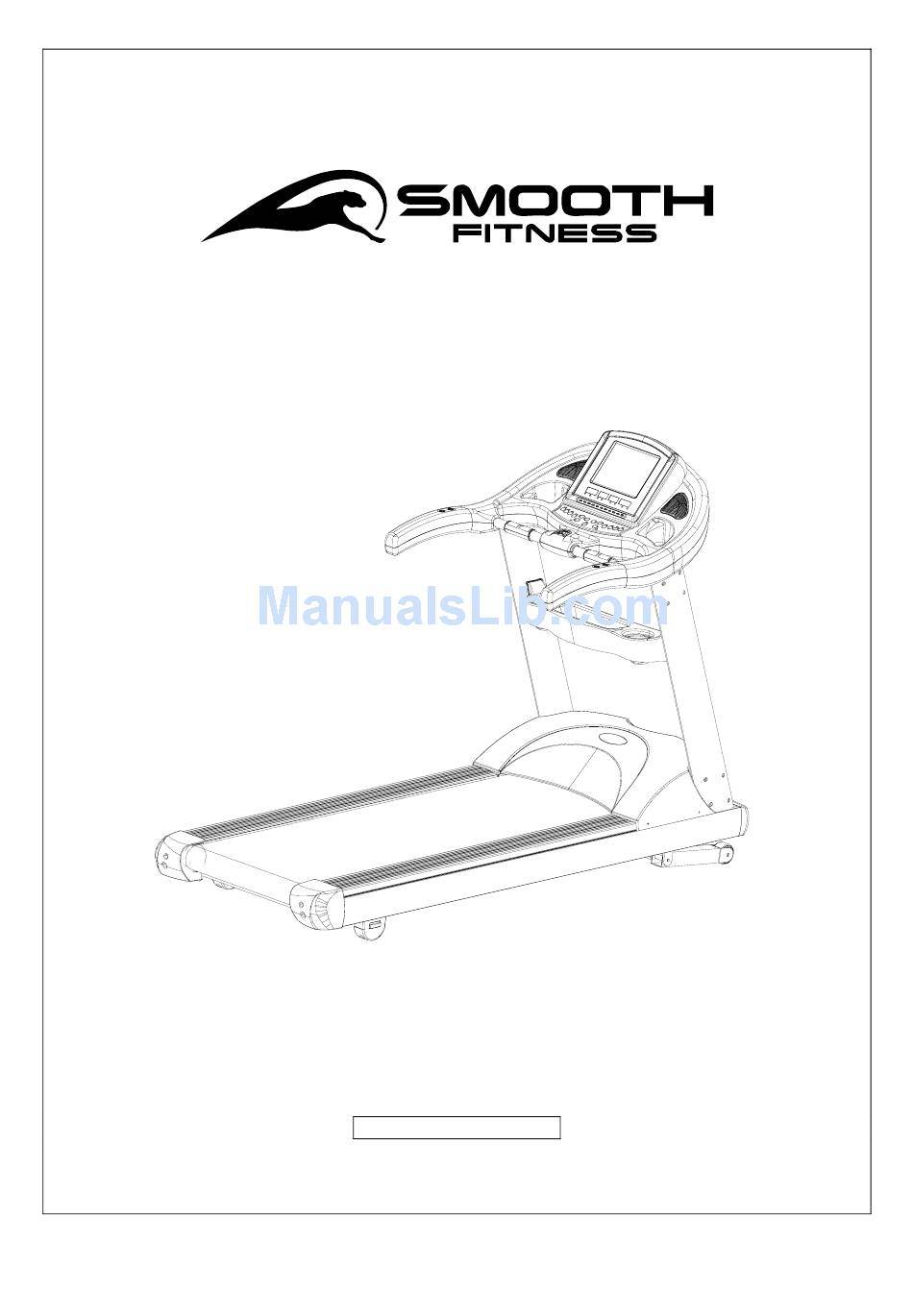

  • Page 1 Meijer.com REV 11011 USER’S MANUAL 9.65TV MOTORIZED TREADMILL USER WEIGHT LIMITATION: 400lbs (180kgs). SERIAL NUMBER (found on frame):...
  • Page 2 Meijer.com 9.65 TV TREADMILL PRECAUTIONS For future service or related questions: Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your treadmill. Name: ______________________________ Phone Number: ___________________ Receipt: ______________________ Precautions: WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and information before operating the treadmill.
  • Page 3 Meijer.com www.smoothfitness.com PRECAUTIONS Pour réparations futures ou questions connexes : Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your treadmill. Name: ______________________________ Phone Number: ___________________ Receipt: ______________________ Précautions: AVERTISSEMENT : Pour réduire les risques de brûlures, d’incendie, de choc électrique ou de blessures aux personnes, lire les précautions importantes et l’information suivantes avant de se servir du tapis roulant.

  • Page 4: Power Requirements

    Meijer.com 9.65 TV TREADMILL POWER REQUIREMENTS Power Requirements: IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN THE RISK OF AN ELECTRIC SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS TO WHETHER THE PRODUCT IS PROPERLY GROUNDED.
  • Page 5 Meijer.com www.smoothfitness.com POWER REQUIREMENTS Alimentation : UN MAUVAIS BRANCHEMENT DU CONNECTEUR DE MISE À LA TERRE DE L’ÉQUIPEMENT POURRAIT PROVOQUER UN CHOC ÉLECTRIQUE. EN CAS DE DOUTE, CONSULTER UN ÉLECTRICIEN OU UN RÉPARATEUR QUALIFIÉ POUR SAVOIR SI LE PRODUIT EST CORRECTEMENT MIS À LA TERRE. NE PAS MODIFIER LA FICHE FOURNIE AVEC LE PRODUIT. SI ELLE N’ENTRE PAS DANS LA PRISE, FAIRE INSTALLER UNE PRISE APPROPRIÉE PAR UN ÉLECTRICIEN PROFESSIONNEL.

  • Page 6: Before You Begin

    Meijer.com 9.65 TV TREADMILL BEFORE YOU BEGIN Open the boxes: Open the boxes of your new equipment. Inventory all parts included in the boxes and Supplied Hardware lists on page 7 for a full count of the parts included. If you are missing any parts or have any questions contact us directly at 888-800-1167 Gather your tools: Before you begin, make sure that you have gathered all the necessary tools you may require to assemble the unit...

  • Page 7: Hardware Kit

    Meijer.com www.smoothfitness.com SUPPLIED COMPONENTS / SUPPLIED HARDWARE This list identifies the major components you will use to assemble this product. Console crossbar BOTTLE HOLDER CONSOLE MAST MAIN BODY CONSOLE HARDWARE KIT GPIB HARDWARE KIT M10x15 HEX HEAD M8x20 HEX HEAD ∮...

  • Page 8: Complete Parts List

    Meijer.com 9.65 TV TREADMILL COMPLETE PARTS LIST ITEM DESCR IPTION ITEM DESC IPTION ITEM DESCR IPTION main fr Left e d cover screw M 6*9mm transfo rmer righ t en d cover NUT M filter bolt M6 *10mm ing br acket of motor Contro l pcb...
  • Page 9 Meijer.com www.smoothfitness.com COMPLETE DIAGRAM Console Handle pulse Handle Console mast Bottle holder Motor cover Running belt Rear roller Rear roller cover...
  • Page 10 Meijer.com 9.65 TV TREADMILL COMPLETE PARTS DIAGRAM 2...

  • Page 11: Assembly - Please Read All Steps Before Beginning Your Work

    Meijer.com www.smoothfitness.com ASSEMBLY – PLEASE READ ALL STEPS BEFORE BEGINNING YOUR WORK. STEP1: Assemble Console Mast to Base Frame. NOTE: Make sure all wires are recessed into the frame. DO NOT trap or Pinch. DO NOT tighten bolts until after STEP3. When attaching the Right and Left upright (59, 60) first feed the 4 Lower wires through the uprights.
  • Page 12 Meijer.com 9.65 TV TREADMILL ASSEMBLY STEP2: Attach Console to Left and Right Uprights (This step is easier with 2 people) 1). Connect the Upper Console Wire (38) from the console set to Lower Console Wire (44) in the right upright and the TV power and signal wire in the left upright. Then place the excess wire and the connectors into right uprights.
  • Page 13 Meijer.com www.smoothfitness.com ASSEMBLY STEP3: Fasten protective cover on the upright 1) Attach the crossbar (84) between the left and right upright then secure using 4 x M8x20mm Bolts () and 4 x M8 washers (). 2) Tighten all bolts and fasteners now Console crossbar Tighten all bolts and fasteners now...
  • Page 14 Meijer.com 9.65 TV TREADMILL ASSEMBLY STEP4: Assembly of the bottle holder to the cross bar Attach the Bottle holder to the crossbar, and secure using 8 x M4x15mm screws Tighten all bolts and fasteners now...
  • Page 15 Meijer.com www.smoothfitness.com ASSEMBLY STEP 5: 1) Turn power switch on 2) Insert the Safety Key (70) into the Bottom Center of Console prior to operation. Note: Your treadmill will not Function without the safety key. Power Switch SLECET FAST 10% 5% 0% STRAT DOWN STOP SLOW...

  • Page 16: Computer Operation

    Meijer.com 9.65 TV TREADMILL COMPUTER OPERATION Computer Display Time 00:00-99:59 Min Speed 0.5-12 mile/h incline 0-15% Distance 0.00-99.9 mile Calories 0-999 KCAL Pulse 70-200 / Min Program P1-P7 Weight 88-400 lbs. 15-80 years Height 4.0-7.2ft Target HR 50-190...
  • Page 17 Meijer.com www.smoothfitness.com COMPUTER OPERATION START (Quick Start): Press the “START “to begin your exercise PAUSE: Press the “STOP＂ button to pause the training. RESET: Press the “ STOP ＂ button for a few seconds to reset the computer to its default values.

  • Page 18: Speaker Port

    Meijer.com 9.65 TV TREADMILL COMPUTER OPERATION ▲ / ▼ KEYS: Use to adjust the incline level up or down during the workout QUICK SPEED KEY: Use the quick speed keys to achieve the predetermined speed with the push of one button.
  • Page 19 Meijer.com www.smoothfitness.com COMPUTER OPERATION TV POWER KEY: Use the “POWER” KEY to power or P O W E R M E N U C H - / + shut off the TV. A V / T V V O L - / + MENU KEY: Press the Menu key to view the various menus, continue pressing...
  • Page 20 Meijer.com 9.65 TV TREADMILL COMPUTER OPERATION TIME Displays minutes and seconds of the elapsed or remaining time. LEVELS Displays the selected training level. WEIGHT Displays the weight when you set the program SPEED Displays the current running speed. 12 0 PULSE To show the current heart rate, touch both pulse sensors with your palms.
  • Page 21 Meijer.com www.smoothfitness.com COMPUTER OPERATION Quick START: Press START, and the belt will begin to move. This program is a manual program, the user must adjust the speed and incline 1. The speed will begin at the lowest speed (0.5mph/0.8kph), the Incline will begin at Level 0, and all data will begin to count up.
  • Page 22 Meijer.com 9.65 TV TREADMILL COMPUTER OPERATION P3 Speed This program is designed to provide varied speed programs. The program profile is pictured on page 24 P3 Speed Program Press Speed + / - until P3 is displayed in the computer window. Press select to confirm. Speed Program Selection To enter L1~L10 press the speed + /- until preferred program is displayed.
  • Page 23 Meijer.com www.smoothfitness.com COMPUTER OPERATION H1 Target Heart Rate H1 THR Program Press Speed + / - until H1 is displayed in the computer window. Press select to confirm. Enter Age To enter your age press the speed + / - until your age is displayed. Press select to confirm. Enter Time To enter the time press the speed + /- until preferred time is displayed.
  • Page 24 Meijer.com 9.65 TV TREADMILL COMPUTER OPERATION...
  • Page 25 Meijer.com www.smoothfitness.com COMPUTER OPERATION I N C L I N E L 1 0...
  • Page 26 The walking belt has been pre-lubricated at the factory. However, it is recommended that the walking board be checked periodically for lubrication to ensure optimal treadmill performance. Your treadmill should not have to be lubricated usually within 3 months. Smooth Fitness recommends lubricating the walking deck every 3 months Please visit www.smoothfitness.com...

  • Page 27: Maintenance

    Meijer.com www.smoothfitness.com MAINTENANCE To apply lubricant to the walking belt: 1. Position the walking belt so that the seam is located on top and in center of the walking board. 2. Insert the nozzle of the lubricant container under the belt 3.

  • Page 28: Important Steps

    Meijer.com 9.65 TV TREADMILL IMPORTANT STEPS Warning: Before using this product, please consult your personal physician for a complete physical examination. Frequent and strenuous exercise should be approved by your doctor first. If any discomfort should result from your use of this product, stop exercising and consult your doctor.

  • Page 29: Muscle Chart

    Meijer.com www.smoothfitness.com MUSCLE CHART Targeted muscle groups: The exercise routine that is performed on this product will develop primarily lower body muscle groups. These muscle groups are shown in gray color on the chart below. MUSCLE GROUPS Shoulder muscles Calf muscles Pectoral muscles Trapezius muscles Bicep muscle...

  • Page 30: Stretching Routine

    Meijer.com 9.65 TV TREADMILL STRETCHING ROUTINE Warm up and cool down: A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down. Do the entire program at least two and preferably three times a week, resting for a day between workouts. After several months, you can increase your workouts to four or five times per week.
  • Page 31 Meijer.com www.smoothfitness.com STRETCHING ROUTINE Read carefully the following before using your treadmill ♦ Always stretch your muscles before exercise program. Warm up slowly by walking at a slow incline. Increase workout intensity gradually until you reach your desired workout pace. Decrease workout intensity gradually to an easy walk, allowing your heart rate to decrease to a normal situation.

  • Page 32: Troubleshooting Guide

    Meijer.com 9.65 TV TREADMILL TROUBLESHOOTING TROUBLE SHOOTING GUIDE: SYMPTOM CAUSE SOLUTION Place the safety key into the operation Show E0 Safety key not in place position Please check Speed sensor and 10-pin Show E1 Speed signal error cable or contact your retailer Check the 10-pin cable or contact you Show E2 Motor or motor drive system error...

  • Page 33: Limited Warranty

    Procedure for Obtaining Your Remedy Under This Warranty: To obtain service on a Smooth Fitness product, call Smooth Fitness. In the instance that service is not available in an area, Smooth Fitness, at its discretion, can either 1) find a service technician in your area to perform warranty service, 2) have a local dealer perform warranty service, or 3) send the warranty parts to you and reimburse as described above.
  • Page 34 Meijer.com mooth Fitness 780 5 King of Prussia, PA 19406 Toll Free Customer Service: 1.888.800.1167 Website: www.smoothfitness.com...
