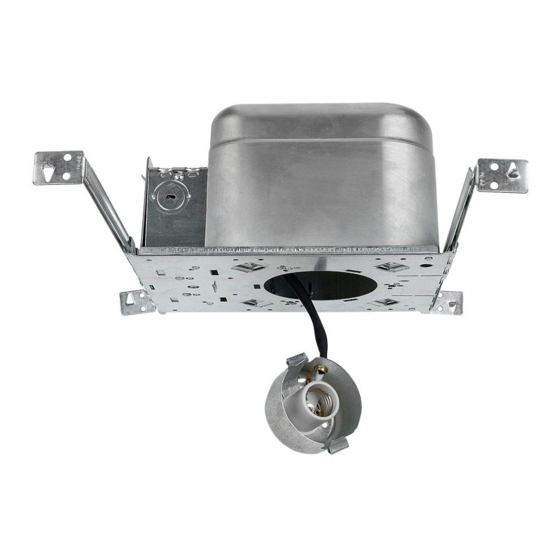

Lightolier Lytecaster 2000AIC Specification

Page 1 of 1
5 1/2"
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets
2000AIC
Features
1. Housing: .032" aluminum. UL Listed for direct contact with thermal
insulation. AirSeal Housing minimizes air leakage to less than 2 CFM at
®
1.57 PSF, which complies with Model Energy Code (Section 602.3.3) and the
Washington State Energy Code (Section 502.4) and reduces heat loss and
condensation on ceiling. Access door for inspection of junction box.
2. Mounting Frame: .036" (#20 ga.) galvanized steel. Accommodates all
ceilings up to 1" thick. Push-in/twist-out rotoclips hold reflector flush to
ceiling.
3. Junction Box: 4" X 3 1/2" X 2"; .063" (#14 ga.) galvanized steel. UL listed
for maximum of 4 No. 12 ga. 90° C through branch circuit conductors. Access
door inside of housing allows easy inspection of wiring without removal of
housing. Integral cable clamps permit attachment of nonmetallic Romex
armored cable without need of additional connectors.
4. Mounting Bars: .059" (#16 ga.) galvanized steel. 13" long bars extend
to 27" with integral nailing tabs. Attaches to wood joist without need of
accessories.
5. Socket Housing: .036" (#20 ga.) galvanized steel.
6. Socket: Porcelain medium base; nickel plated screw shell. Pre-wired with
#18 ga. SF1 leads to junction box.
7. Thermal Protector: Meets NEC and UL requirements. Located inside
housing

Options and Accessories

Mounting Bars:
T-Bar Ceiling Clips:
Plaster Ceiling Ring:
277V Remote Step
Down Transformer:
Extra Thick Ceiling
Mounting Ring:
Lightolier is a Philips group brand
7 1/2" 9 5/8"
Open Downlight
Aperture Cone Baffles
2012 2005
2012NM 2005BNM
2013 2005WH
2013NM 2005NM
2013BK
2013BKNM
2013CD
2013CDNM
2013WH
2013WD
2013WDP
1964 - 20" set of (2)
1956 - set of (4)
1959 - 7/8"depth for wet plaster ceilings
7997 - 277V down to 120V
300W max. load.
1967C
Lytecaster Recessed Downlighting
®
3 3/4" Aperture Incandescent Insulated Ceiling AirSeal
Recessed
Adjustable
Satin Cone
2008 2027
2008NM 2027BNM
2010 2027NM
2010NM 2027WH
2029WH
2029BK
2029BKNM
2029CD
2029CDNM
2029CLNM
2029GD
2029GDNM
2029CL
Labels
UL (Suitable for Damp Locations) I.B.E.W.
Complies with Air Leakage Requirements as stated in the Model Energy Code
and the Washington State Energy Code.
AirSeal is a registered trademark of Lightolier.
®
or
®
Romex is a registered trademark of General Cable Industries Inc.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2012 Philips Group • L0112
Frame-in Kit
Reflector Trim
Enclosed
Eyeball Diffuser
2022 2090
2022WH
Type:
2000AIC
Frame-In Kit
®
Open Wet
Location
2084WH
2084CD
