Lightolier Lytecaster 309X Specification

Page 1 of 2

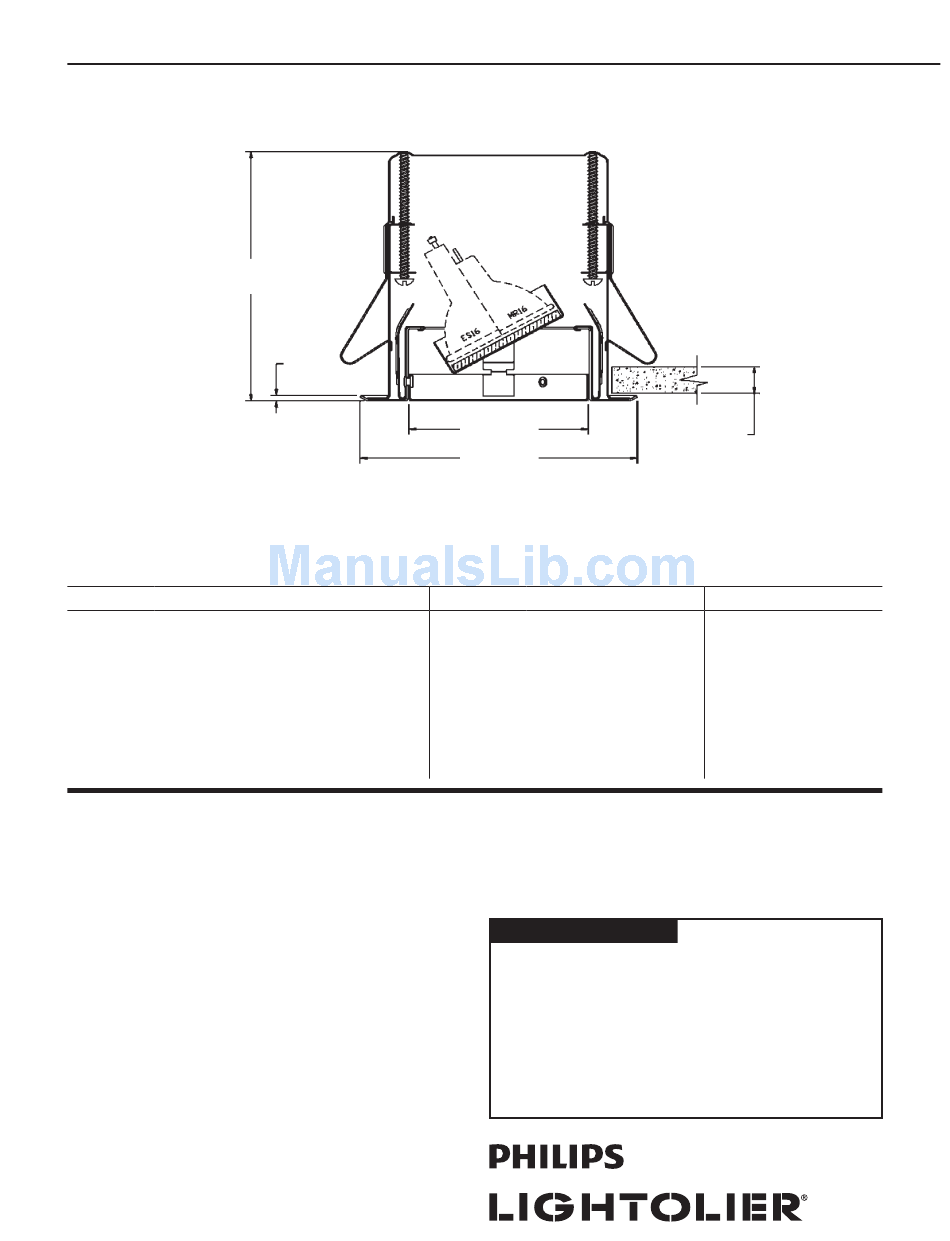

4 1/2"
Complete fixture consists of Reflector Trim & Frame-In Kit. Select each separately

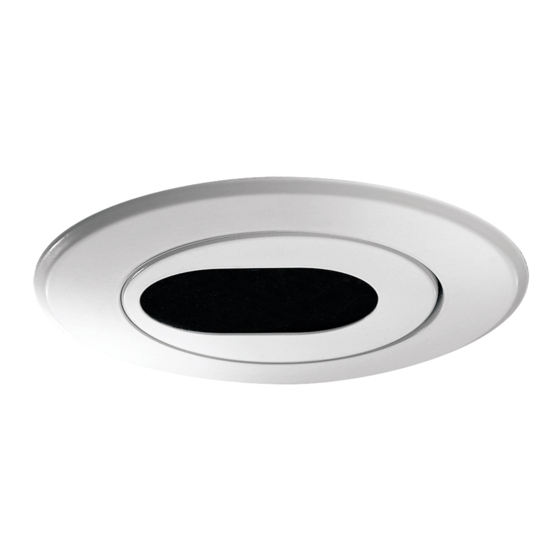

Reflector Trim
309STX Stainless Steel Plated
309WHX White Paint
Features
1. Housing: 25ga galvanized steel.
2. Residence Mounting Clip: Factory-installed; zinc plated spring steel;
free-hand installation.
3. Aperture Plate: Die-formed 24 ga. steel. Inner shield,
welded to aperture plate; black finish.
4. Adjustable Lampholder Support: 27ga. steel ;
Rotates 358˚ horizontally and 0° to 40° vertically.
5. Mounting Clips (2): 24ga. spring steel, zinc plated.
Provide easy snap-in / snap-out action.
6. Lamp Guard: 2" (51mm) dia. borosilicate glass.
Frame-In Kit
Note: For complete Frame-In Kit specifications,
see 300 frame specification sheets.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2012 Philips Group • C0212
Lytecaster Recessed Downlighting
3 3/4" (95mm) Aperture Adjustable Slot Aperture MR16 & ES/ESD16
1/8"
Frame-In Kit
Remodeler
Remodeler
Remodeler
Non-IC
Non-IC
Non-IC
IC
IC
Air Seal/IC
2 7/8"
4 1/2"
300MRSPX
3401MREX
300ESX
302MRSPX
302MREX
302ESX
302MRIC9SPX
302ESICX
302MRAICEX/302MRAICSPX
Labels:
CSA , UL Suitable for damp locations.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
309X
1" MAX
Lamp
50W MR16
42W MR16
50W ES/ESD16 (GZ10)
50W MR16
50W MR16
50W ES/ESD16 (GZ10)
50W MR16
50W ES/ESD16 (GZ10)
37W MR16
Type:
