Page 1 of 2
2 1/2" WIDE x 1 13/16" DEEP x 18", 24", 36", 48", 72", 96" LENGTHS, ONE LAMP, T8 OR T12
Features
• Fixtures suitable for individual, row, surface, or
suspension mounting.
• Efficiency 94% (T8).
• Quarter turn latch secures channel cover for easy
wireway access.
• Heavy duty channel of code gauge die formed
steel.
• Only 2-1/2" wide.
• Fully enclosed wiring.
• U.L. Listed snap-on end caps.
• Combination end cap for continuous row mounting.
• Green grounding screw installed in channel.
• UL listed for direct mounting on low density
ceilings and damp locations.
Dimensions
SN SERIES
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte Thomas Company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division)
A0902

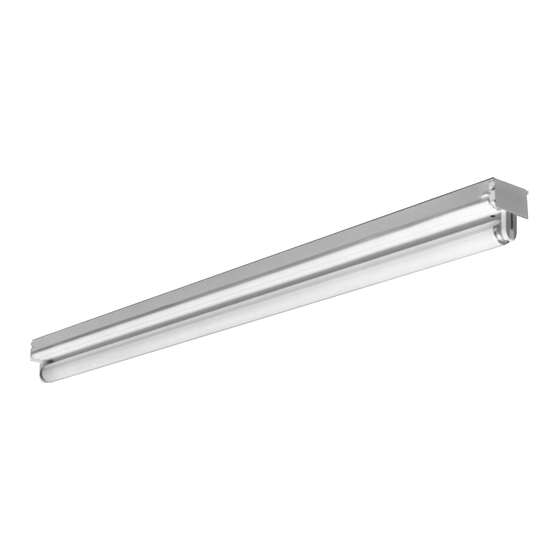

SN STRIP
NARROW WIDTH CHANNEL
Type:
www.lightolier.com
SECTION 3A/Folio H110-40
