Lightolier Calculite C7E17OVM Specification

Page 1 of 2
20" (508 mm) to 30" (762 mm)
8 1/4"
(210 mm)
Top View
(Magnetic Ballast)
20" (508 mm) to
30" (762 mm)
9-3/4"
(248 mm)
11" (280 mm)
(100/150W)
Top View
(Electronic Ballast)
Ceiling Cutout: 8" (203 mm) Dia.
Reflector Trim
C7E170VM CLW Specular Clear, White Painted Flange.
CLP Specular Clear, Matching Flange.
CCDW Comfort Clear Diffuse, White Painted Flange. C715MHOE1 Electronic 120V / C715MHOE2 Electronic 277V
CCDP Comfort Clear Diffuse, Matching Flange.
CCZW Champagne Bronze, White Painted Flange.
CCZP Champagne Bronze, Matching Flange.
MG Black Multi-Groove, White Trim Ring
Features
1. Reflector: Clear anodized aluminum, 0.040" (16-ga.). Provides wide beam
distribution. Provides 50° visual cut-off to lamp and lamp image;
self-flange in painted white or aperture-matching polished flange. Consult
factory for other finishes.

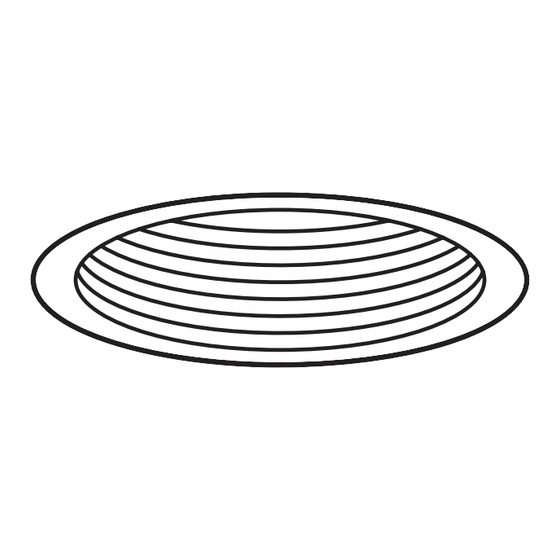

2. Multi-Groove Baffle: One piece seamless aluminum. Sharply detailed con-
centric rings, black finish. Permanently fastened to specular clear reflector.
3. Socket Housing: Galvanized steel, pre-wired with medium base pulse rated
socket. Snaps onto upper reflector for secure attachment without tools; uni-
tized construction assures proper lamp position for consistent performance.
4. Mounting Ring 0.048" (18-ga.) galvanized steel. Designed for vertical
adjustment from above or below. For ceilings from 0" to 2" thick. Center
line notches allow consistent alignment of multiple fixtures.
5. Mounting Frame: 0.048" (18-ga.) Galvanized steel includes pre-installed
mounting bars.
6. Retention Springs: Rust resistant springs secure reflector in place for quick,
tool-less installation.
7. Frame Vertical Adjustment Mechanism: Vertical adjustment mechanism
accommodates mounting to virtually any ceiling system using pre-installed
mounting bars, or 1/2" EMT tubing (by others). Single locking feature secures
all adjustments. Alignment holes and markings allow fixture to be pre-set
prior to installation.
8. Mounting Bars: 0.048" (18-ga.) Pre-installed, telescoping bars extend to
30" long; lock securely into position. Built-in locking tabs provide positive
attachment to common T-bar systems. Self-centering feature simplifies
installation in 24" O.C. grid systems. Attaches to steel or wood joists
without accessories.
9. Ballast: Electronic 120V or 277V. Magnetic dual voltage (120V & 277V).
Accessible from below for inspection and/or replacement without tools.
10. Junction Box: 0.048" (18-ga.) galvanized steel. UL listed for 8 No. 12 AWG,
90°C through branch circuit conductors; allows inspection from below.
11. Thermal Protector: (Not Shown) Meets NEC and UL requirements. Do not
install insulation above nor within 3" (76mm) of any part of the luminaire.
Electrical
Electronic Ballast: 120V or 277V, 50/60 Hz., encased, high-power factor, T.H.D.
<15%, thermally and transient protected, RMI / RFI complies with FCC Part 18
non-consumer equipment, shut-down circuit at end of lamp life, sound rating "A",
-5°F minimum starting temperature, Type 1 outdoor rating.
Calculite
7" Aperture, ED17 (Open Rated), Ceramic Metal Halide, Medium Beam
9-3/4"
(248 mm)
9-7/8"
(251 mm)
Frame-In Kit
C770MHOE1 Electronic 120V / C770MHOE2 Electronic 277V
C710MHOE1 Electronic 120V / C710MHOE2 Electronic 277V
C770MHOU Magnetic 120V/277V
C710MHOU Magnetic 120V/277V
C715MHOU Magnetic 120V/277V
® HID Downlight
9 7 1 3
7-3/8" (187 mm) Dia.
7-1/8" (181 mm) Dia.
8-5/8" (200 mm) Dia.
Electrical (cont)
Ballast ANSI Code Voltage
70W MH M98/M139
100W MH M90/M140
150W MH M102
Magnetic Ballast: 120/277V dual voltage, 60 Hz., encased and potted,
HX-HPF circuit type, high power factor, sound rating "B", -20°F minimum starting
temperature, Type 1 Outdoor rating.
Ballast ANSI Code Voltage
70W MH M98/M143
100W MH M90/M140
150W MH M102

Options and Accessories

Auxiliary: Add suffix A to Frame-In Kit and Reflector Trim. See Spec.Sheet "A".
Emergency Lamp: Add suffix E to Reflector Trim and Frame In Kit. See Spec.
Sheet "E".
Slope Ceiling Adapters: See Specification Sheet SCA.
Fuse: Add suffix F1 or F2 to Frame In Kit (F1=120V, F2=277V)
Chicago Plenum: Consult Factory.
Labels
UL (Suitable for Damp Locations), CSA, I.B.E.W. For 150W, install fixtures with
minimum spacing: 3 feet from center-to-center of adjacent luminaries; 3 inch
from top of luminaire to overhead building member;1 1/2 feet from luminaire
center to side building member.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2004 Genlyte Thomas Group LLC (Lightolier Division) • A0504
C7E170VM
2 4 6 5 9 10 8
2" (50 mm) max.
Ceiling Thickness
Lamp
(Coated, Ceramic MH)
70W E17, ED17, BD17 (Open Rated)
100W E17, ED17, BD17 (Open Rated)
150W E17, ED17, BD17 (Open Rated)
70W E17, ED17, BD17 (Open Rated)
100W E17, ED17, BD17 (Open Rated)
150W E17, ED17, BD17 (Open Rated)
Max. Amps Input Watts
120/277 0.67/0.29 78
120/277 0.90/0.43 110
120/277 1.40/0.61 167
Max. Amps Input Watts
120/277 1.90/0.80 94
120/277 2.40/1.10 125
120/277 3.70/1.60 180
Type:
www.lightolier.com
Flangless Trim with
Vertical Adjustment:
5/8" (16 mm) to
2 7/8" (73 mm)
