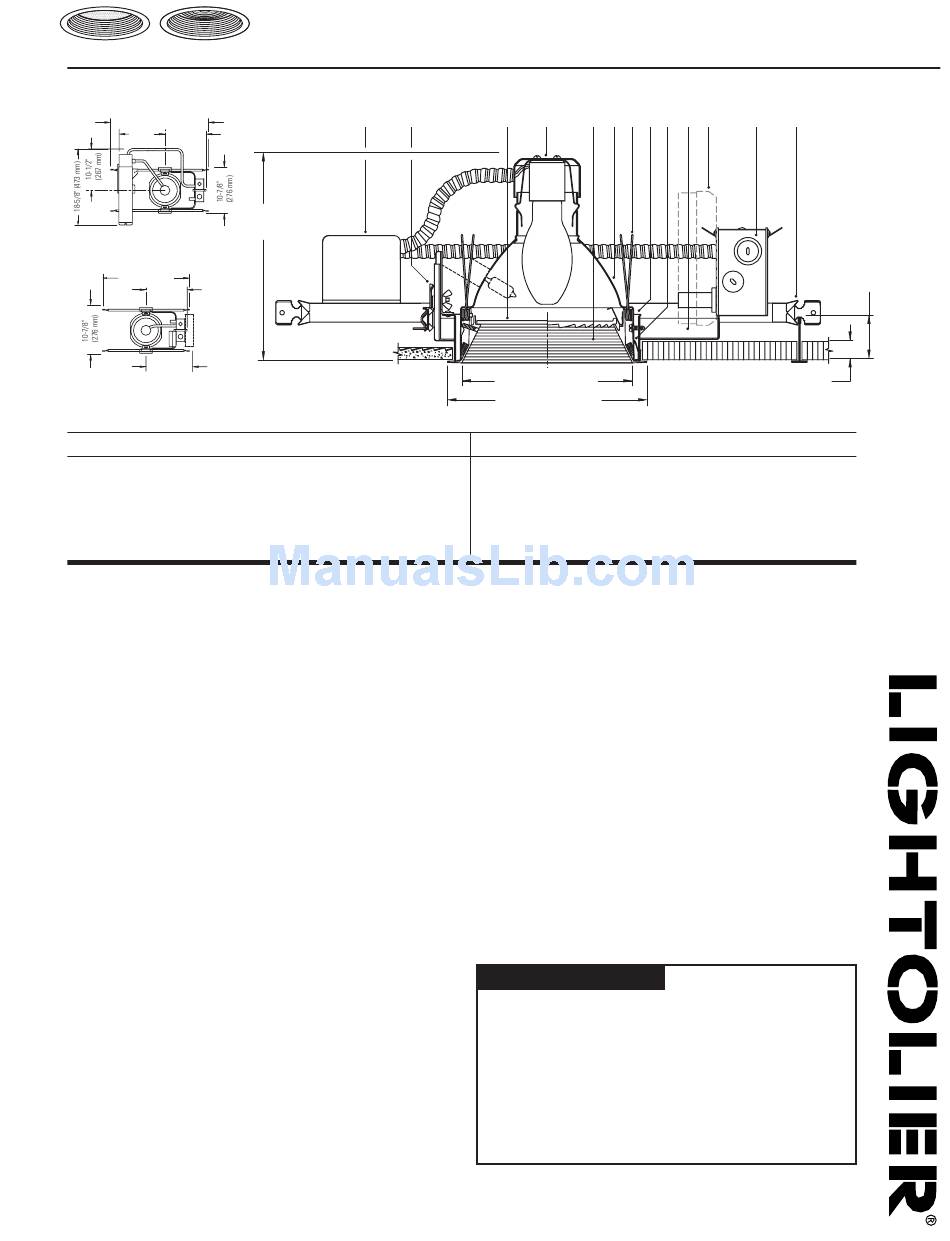

Lightolier Calculite C7E17FL-PL Specification

Prismatic Lens
Fresnel Lens
Page 1 of 2
20" (508 mm) to 30" (762 mm)
8-1/4"
9-3/4"
(210 mm)
(248 mm)
Top View
(222 mm)
(Magnetic Ballast)
20" (508 mm) to
30" (762 mm)
9-3/4"
(248 mm)
11" (280 mm)
(100W)
Top View
(Electronic Ballast)
Ceiling Cutout: 8" (203mm) dia.
Reflector Trim
C7E17FLWHW Fresnel Lens, White Step Baffle, White Flange
C7E17PLWHW Prismatic Lens, White Step Baffle, White Flange
Features
1. Reflector: Semi-Specular anodized aluminum, 16 ga. Removable from inside
fixture for access to splices and ballast.
2. Lens: Prismatic (C7E17PLWHW) or Fresnel (C7E17FLWHW) lens. Regressed
1 3/4" from ceiling line.
3. Die-Cast Baffle: Painted white, self flange, deep conical step baffle for
low brightness, supports lens. Small Allen-head set screw provides secure
attachment for use where vandal resistant luminaires are required.
4. Torsiontite Springs: Permit removal of lens assembly without tools.
5. Socket Cup: Galvanized steel, pre-wired with medium base pulse rated
socket. Snaps onto upper reflector for secure attachment without tools;
unitized construction assures proper lamp alignment to optics for consistent
performance.
6. Mounting Frame: 0.048"(18-ga.) galvanized steel includes pre-installed
mounting bars.
7. Mounting Ring: 0.048"(18-ga.) galvanized steel. Designed for vertical
adjustment from above or below for ceilings from 0" to 2" thick. Center-line
notches allow consistent alignment of multiple fixtures.
8. Retaining Springs: Rust resistant simplify reflector housing removal for
inspection and maintenance.
9. Vertical Adjustment Mechanism: Accommodates mounting to virtually
any ceiling system using mounting bars (provided, or 1/2" EMT tubing (by
others). Single locking feature secures all adjustments. Alignment holes and
markings allow fixture to be preset prior to installation.
10. Mounting Bars: 0.048" (18-ga.) pre-installed, telescoping bars extend to 30"
long and lock securely into position. Built-in locking tabs provide positive
attachment to common T-bar systems. Self-centering feature simplifies instal-
lation in 24" O.C. grid systems. Attaches to steel or wood joists without
accessories.
11. Ballast: Electronic 120V or 277V or dual voltage (120V/277V) magnetic.
Assembly is accessible from below without tools for inspection and
replacement.
12. Junction Box: 0.048" (18-ga.) galvanized steel. UL listed for 8 No. 12 AWG,
90°C through branch circuit conductors; allows inspection from below.
13. Thermal Protector: (not shown) Meets NEC and UL requirements. Do not
install insulation above nor within 3" (76mm) of any part of the luminaire.
Calculite
®
7" Aperture, ED17 (Enclosed), Ceramic Metal Halide, Fresnel or Prismatic Lens
11 9
8-3/4"
HID Lensed Downlight
2 5 3 1 4
7-5/16" (187 mm) Dia.
8-5/8" (200 mm) Dia.
Frame-In Kit
C770MHE1 Electronic, 120V
C770MHE2 Electronic, 277V
C710MHE1 Electronic, 120V
C710MHE2 Electronic, 277V
C770MHU Magnetic, 120V/277V 70W
C710MHU Magnetic, 120V/277V 100W ED17, BD17 (Enclosed)
Electrical
Electronic Ballast: 120V or 277V, 50/60 Hz., encased, high-power factor, T.H.D.
<15%, thermally and transient protected, RMI / RFI complies with FCC Part 18
non-consumer equipment, shut-down circuit at end of lamp life, sound rating
"A", -5° F minimum starting temperature, Type 1 outdoor rating.
Ballast ANSI Code
70W MH M98/M143
100W MH M90/M140
Magnetic Ballast: 120V/277V dual voltage, 60 Hz., encased and potted,
HX-HPF circuit type, high power factor, sound rating "B", -20° F minimum
starting temperature, Type 1 Outdoor rating.
Ballast ANSI Code
70W MH M98/M143
100W MH M90/M140
Options and Accessories
Auxiliary: Add suffix A to Frame-In Kit and Reflector Trim. See Spec.Sheet "A/E"
Emergency Lamp: Add suffix E to FIK and Reflector Trim. See Spec.Sheet "A/E"
Slope Ceiling Adapters: See Specification Sheet SCA.
Fuse (magnetic ballast): Add suffix F1 or F2 to FIK (F1=120V F2=277V)
Chicago Plenum: Consult Factory.
Labels
UL (Suitable for Wet Locations), CSA, I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte LLC • B0809
C7E17FL-PL
7 8 6 11 12 10
2" (50 mm) max.
Ceiling Thickness
Lamp (Coated, Ceramic MH)
70W ED17,BD17 (Enclosed)
70W ED17, BD17 (Enclosed)
100W ED17, BD17 (Enclosed)
100W ED17 BD17 (Enclosed)
ED17, BD1 (Enclosed)
Voltage Max. Amps Input Watts
120/277 0.67/0.28 78
120/277 0.90/0.43 110
Voltage Max. Amps Input Watts
120/277 1.90/0.80 94
120/277 2.40/1.10 125
Type:
www.lightolier.com
Vertical Adjustment:
5/8" (16 mm) to
2 7/8" (73 mm)
