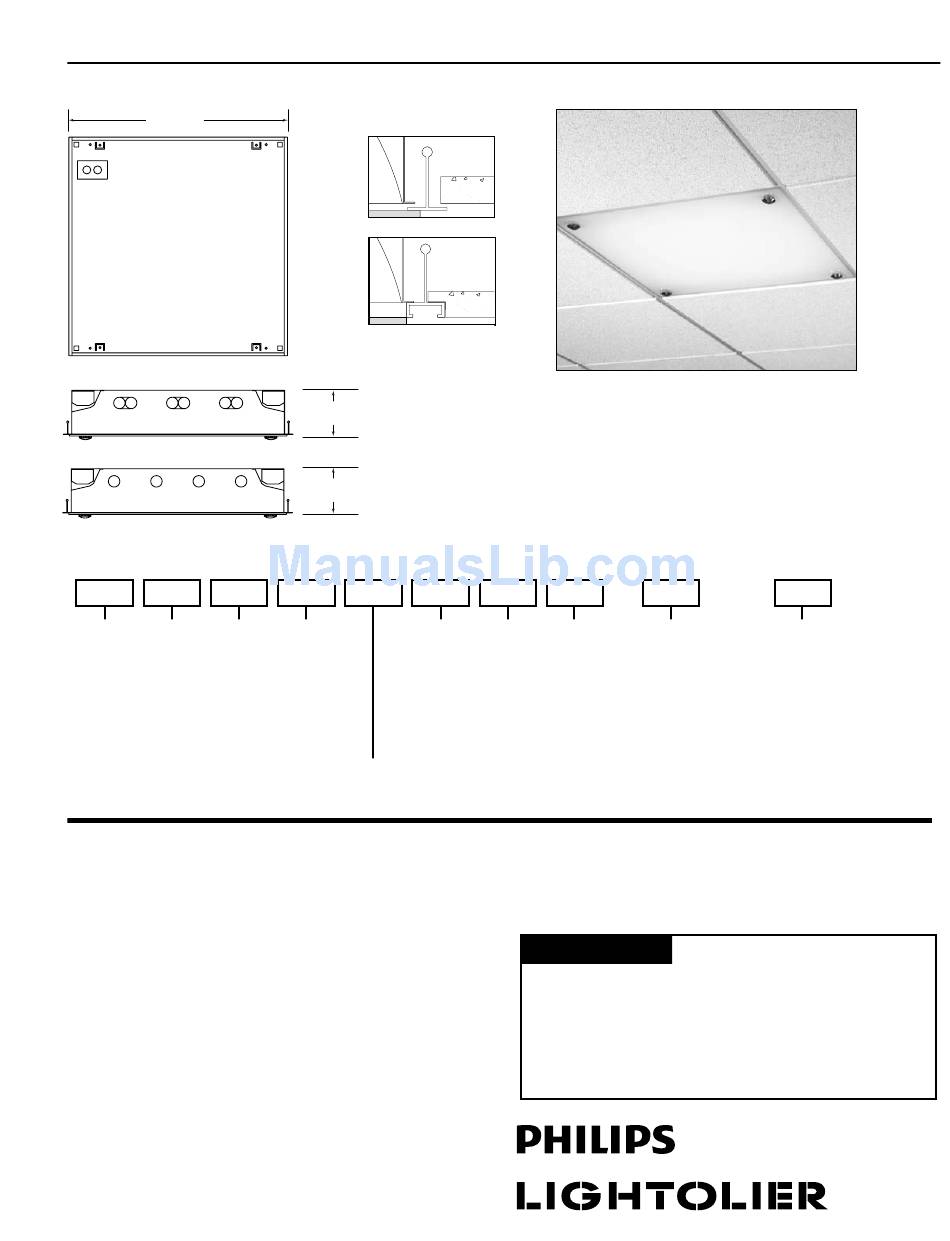

Lightolier Alter Tilelyte QVD Specification

Page 1 of 2
24" (610mm)
Ordering information
QVD 2 G
Quality Luminaire Ceiling
Visual Width Type
Recessed direct 2' G = Standard
indirect soft light exposed
optical system T-Grid,
Slim/
Narrow-
T Grid,
Slot-T
Grid or
drywall
ceilings
Features
• Efficiency 48.9%
• Decorative glass Lens with chamfered edges which blends in with regular flat-edge
and recessed-edge ceiling tiles
• Easy-to-remove thumbscrews for easy access to lamp/ballast compatment
• Fully recessed luminaire and lamp compartment
• One piece body for easy installation
• Easy access to ballast through lamp compartment
• Fits standard T-Grid, Slim/Narrow-T Grid, Slot-T Grid or drywall ceilings
Material
One piece chassis constructed from die formed 20 gauge cold rolled steel.
Reflectors - Pre-paint finish. Soft white acrylic film on inside of lamp shield conceals
lamp image.
Finish
Chassis exterior - phosphate undercoating, baked white acrylic matte high reflec-
tance paint finish.
For Factory Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © Philips Group
Ceiling compatibility
5"
(127mm)
5"
(127mm)
OP
Lamp Lamp
Shield Quantity
GL = Decorative 3 = 3 Lamp
glass with
4 = 4 Lamp
opal acrylic
(T5/T5HO
film
only)
AL = Acrylic
Lamp Shield Details
OP = One piece (no center slot) lamp shield
Section 5/Folio L10-10 Rev. A
Alter Tilelyte QVD
2' x 2' Recessed Direct/Indirect Fluorescent
Suited to
standard
exposed
T-grid
ceilings
Suited to
standard
exposed
Slot T-grid
ceilings
Lamp Voltage
24 = 24WT5HO UNV T5/T5HO
PG = Electronic Linear T5/T5HO
FT = TT5 Bi-Tube 120
Program Start (<10% THD)
277 TT5
I3 = 40W 3 Lamp Electronic
TT5 Instant Start or Rapid
Start (<10% THD)
For Dimming Ballast
Suffix, please consult your
Lightolier Representative.
Electrical
Thermally protected class "P" ballast. If K.Os are within 3" of ballast use wire suitable
for at least 90C. Suitable for damp location.
Labels
Listed by CSA, UL.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
11/10
Ballast Options
Type
A = Internal fast blow fusing.
C = Internal slow blow fusing.
FK92X2 = Drywall Kit for
plaster frames
Type:
2 x 2
