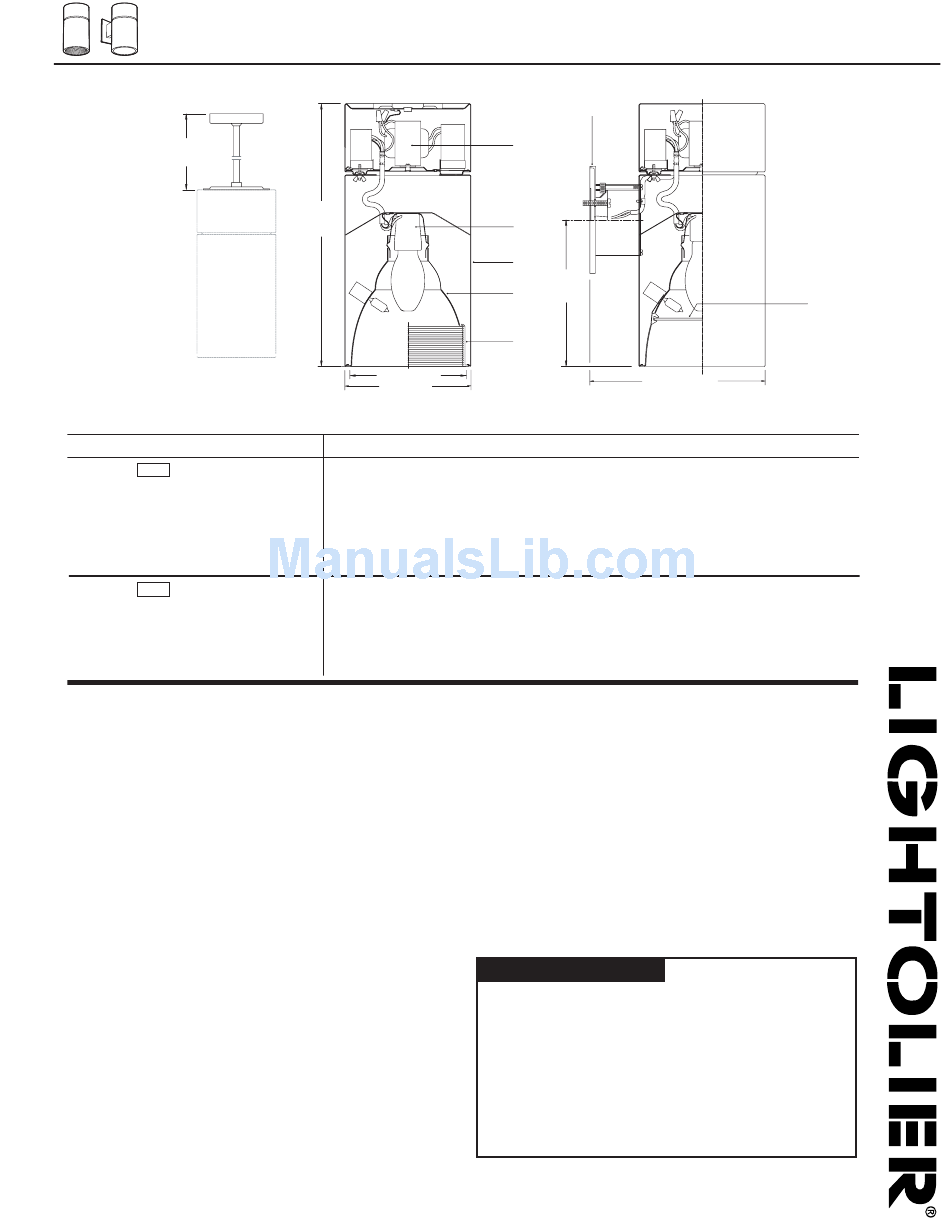

Lightolier Calculite HID Surface Cylinder C7CS-E17VM-OVM Specifications

Calculite
Page 1 of 2
37-3/4"
(959 mm)
Stem Kit
Reflector Trim
C7E17VM
(Enclosed)
CL Specular Clear, Flangeless
CCD Comfort Clear Diffuse, Flangeless
CCZ Champagne Bronze, Flangeless
C7E17OVM
(Open Rated)
CL Specular Clear, Flangeless
CCD Comfort Clear Diffuse, Flangeless
CCZ Champagne Bronze, Flangeless
MG Black Multi-Groove, Flangeless
Features
1. Reflector: Low brightness with 50° cut-off to lamp and lamp image. Anodized
aluminum, 0.040" (16ga.") with minimal flange fits precisely into Cylinder hous-
ing. Available in either C7E7OVM open rated series for use in open rated cylin-
ders or C7E17VM series for use in enclosed type cylinders (both above).
2. Multi-groove Baffle: One piece seamless aluminum, sharply detailed
concentric rings, black finish. Permanently fastened to specular clear reflector.
3. Lamp Shield: (Enclosed rated fixtures only). High-temperature clear glass as
required by code.
4. Cylinder Housing: White painted seamless aluminum with groove designed
to minimize visual appearance. Returned edge precisely seats reflector without
visible hardware.
5. Socket: Medium base pulse rated socket with nickel plated screw shell.
Special socket design in open rated fixtures accepts only open rated lamps.
Snaps onto upper reflector for secure attachment without tools. Unitized con-
struction assures proper lamp alignment to optics for consistent performance.
6. Ballast: Electronic or magnetic. Accessible for service and replacement.
7. Back Plate: Cast aluminum, suitable for mounting over 4" octagon outlet box.
Electrical
Electronic Ballast: 120V or 277V. Encased, high power factor, T.H.D. <15%,
thermally and transient protected, RMI/RFI complies with FCC part 18 non-
consumer limits, shut-down circuit at end of lamp life, sound rating "A", -5° F
minimum starting temperature, Type 1 outdoor rating.
Ballast ANSI Code Voltage
70W MH M98/M143 120/277
100W MH M90/M140 120/277
Magnetic Ballast: 120/277V dual voltage, 60 Hz., core and coil, HX-HPF
circuit type, high power factor, -20° F minimum starting temperature, Type 1
Outdoor rating.
® HID Surface Cylinder
7" Aperture, ED17 (Open or Enclosed) Ceramic Metal Halide Downlight
16-5/8"
(422 mm)
7-3/8" (187 mm) Dia.
8" (203 mm) Dia.
Ceiling-Mount
with Open Rated Trim
Cylinder Housing
Ceiling-Mount Wall-Mount
C7CS70MHE1 C7CW70MHE1
C7CS70MHE2 C7CW70MHE2
C7CS10MHE1 C7CW10MHE1
C7CS10MHE2 C7CW10MHE2
C7CS70MHU C7CW70MHU
C7CS10MHU C7CW10MHU
C7CS70MHOE1 C7CW70MHOE1
C7CS70MHOE2 C7CW70MHOE2
C7CS10MHOE1 C7CW10MHOE1
C7CS10MHOE2 C7CW10MHOE2
C7CS70MHOU C7CW70MHOU
C7CS10MHOU C7CW10MHOU
Max. Amps Input Watts
0.67/0.28 78
0.90/0.43 110
C7CS-E17VM-OVM
7
6
5
4
9-1/4"
1
(235 mm)
2
11 1/8" (283 mm) Dia.
Wall Mount Kit
with Enclosed Trim
Lamp, (Coated, Ceramic MH)
Electronic, 120V 70W ED17, BD17 (Enclosed)
Electronic, 277V 70W ED17, BD17 (Enclosed)
Electronic, 120V 100W ED17, BD17 (Enclosed)
Electronic, 277V 100W ED17, BD17 (Enclosed)
Magnetic, 120V/277V 70W ED17, BD17 (Enclosed)
Magnetic, 120V/277V 100W ED17, BD17 (Enclosed)
Electronic, 120V 70W E17, ED17, BD17 (Open Rated)
Electronic, 277V 70W E17, ED17, BD17 (Open Rated)
Electronic, 120V 100W E17, ED17, BD17 (Open Rated)
Electronic, 277V 100W E17, ED17, BD17 (Open Rated)
Magnetic, 120V/277V 70W E17, ED17, BD17 (Open Rated)
Magnetic, 120V/277V 100W E17, ED17, BD17 (Open Rated)
Electrical (Cont.)
Ballast ANSI Code Voltage
70W MH M98/M143 120/277
100W MH M90/M140 120/277

Options and Accessories

C4CSW: Stem Kit – White (45° Swivel, 37" long)
Provided with 5/8" dia. Stem and 5 1/2" dia. Canopy. Self-aligning
swivel provides max. 45° vertical tilting. Installs over 4" octagonal
outlet box. Stem can be cut to length on site.
Auxiliary Lighting: Add suffix A to Cylinder Housing and Reflector Trim
(Not applicable with 277V Electronic).
Labels
UL (Suitable For Damp Locations), CSA (Not applicable in enclosed rated trim
with electronic ballast), I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2004 Genlyte Thomas Group LLC (Lightolier Division) • A0504
3
Max. Amps Input Watts
1.90/0.80 94
2.40/1.10 125
Type:
www.lightolier.com
