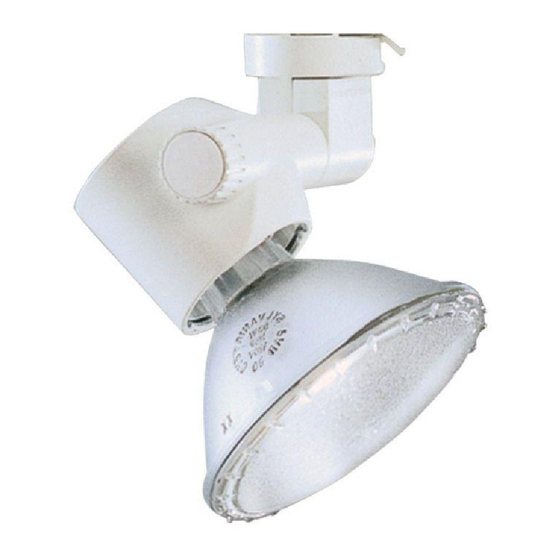

Lightolier Lytespan 8201WH Specification

Page 1 of 2

Ordering Information

Catalog No. Finishes
8201WH Matte White
8201BK Matte Black

Features

1. Lytespan Attachment Fitting: Molded polycarbonate. Integral color. Fitter
twists into track and locks in.
2. Movable Brass Contact: Extends for connection to 2nd circuit in Advent
Lytespan Track.
3. Bayonet Receptacle: To receive optional shade attachment.
4. Rear Vents: For heat removal.
5. Fitting Housing: Die-cast aluminum.
6. Pivot Mounting: Permanently tensioned; 350° stop for horizontal
adjustment.
7. Socket Housing: Die-cast aluminum.
8. Trunion Mounting: Tensioned with internal spring washer, 90° stop for
vertical adjustment.
9. Push Tab: Detaches unit.
10. Screw Cover: Molded Valox integral color.
®

Electrical

Porcelain socket, medium base, nickel plated screw shell. No. 18 braided SF-1
leads.
Options & Accessories
Accepts PAR16, 20 or 30 shades. (See Lightolier Specification Sheets
8215, 8216, 8217, 8225, 8226, 8227, 8235, 8236 and 8237).

Finish

All painted finishes baked enamel.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • C0711
Mounting Lamps
All Lytespan Track Systems R20 75W Max., R30 100W Max., PAR16 75W Max. (T-H), PAR20 50W Max. (T-H),
PAR30 75W Max. (T-H), PAR38 150W Max.
Lytespan Track
Labels
UL; I.B.E.W.
Valox is a registered trademark of General Electric.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
8201WH
PAR-Tech Low Profile
Type:
