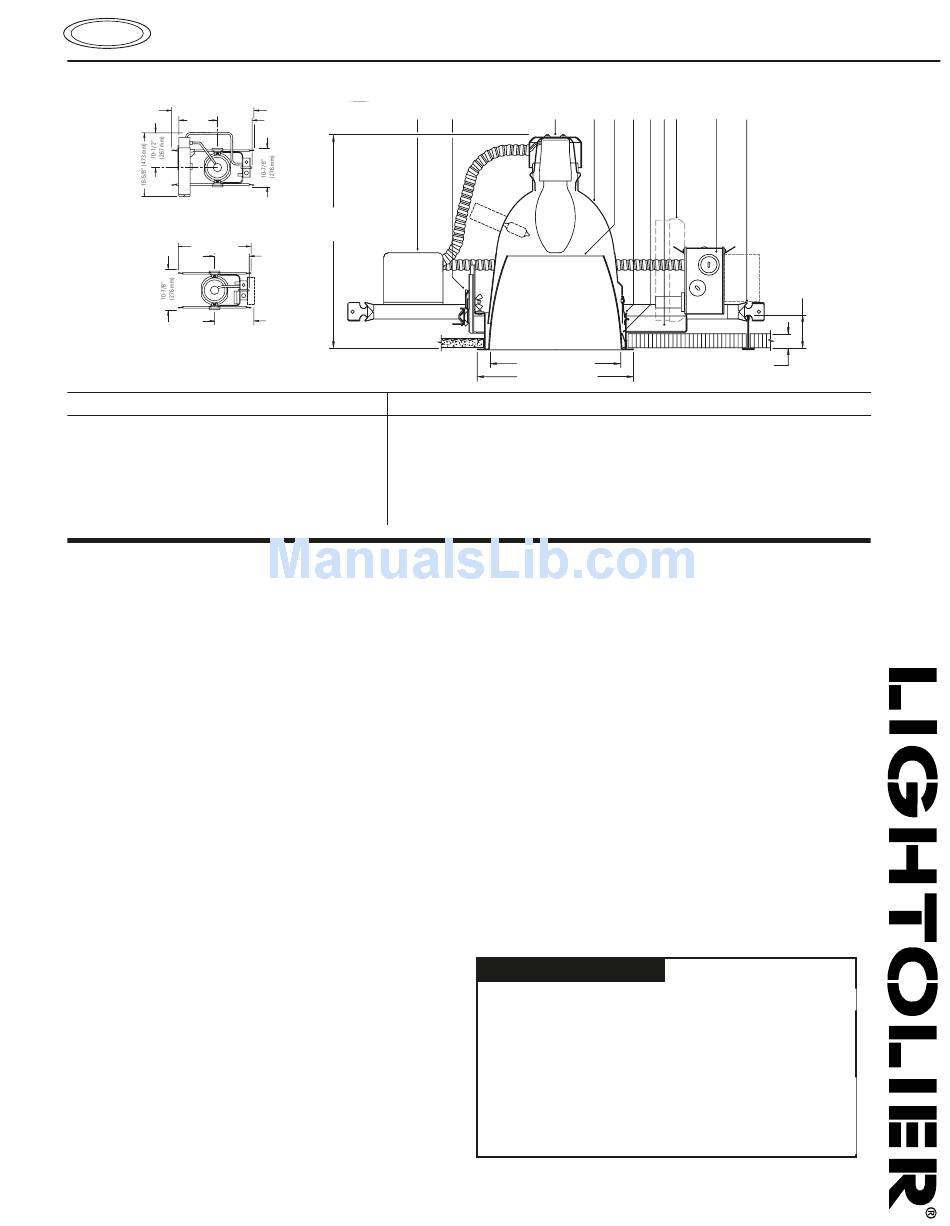

Lightolier Calculite C7E170VW Specification

Page 1 of 2
20" (508 mm) to 30" (762 mm)
8-1/4" 9-3/4"
(210 mm) (248 mm)
Top View
(Magnetic Ballast)
20" (508 mm) to
30" (762 mm)
9-3/4"
(248 mm)
11" (280 mm)
(100/150W)
Top View
(Electronic Ballast)
Ceiling Cutout: 8" (203 mm) Dia.
Reflector Trim
C7E170VW CLW Specular Clear, White Painted Flange.
CLP Specular Clear, Matching Flange.
CCDW Comfort Clear Diffuse, White Painted Flange. C715MHOE1 Electronic 120V / C715MHOE2 Electronic 277V 150W E17, ED17, BD17 (Open Rated)
CCDP Comfort Clear Diffuse, Matching Flange.
CCZW Champagne Bronze, White Painted Flange.
CCZP Champagne Bronze, Matching Flange.
Features
1. Upper Reflector: Clear anodized aluminum, 0.040" (16-ga.). Provides wide
beam distribution.
2. Aperture Cone: Provides 50° visual cut-off to lamp and lamp image;
self-flange in painted white or aperture-matching polished flange. Consult
factory for other finishes.
3. Socket Cup: Galvanized steel, pre-wired with medium base pulse rated
socket. Snaps onto upper reflector for secure attachment without tools; uni-
tized construction assures proper lamp alignment to optics for consistent
performance.
4. Mounting Ring: 0.048" (18-ga.) galvanized steel. Designed for vertical
adjustment from above or below. For ceiling from 0" to 2" thick. Center line
notches allow consistent alignment of multiple fixtures.
5. Mounting Frame: 0.048" (18-ga.) galvanized steel includes pre-installed
mounting bars.
6. Aperture Cone Retention Springs: Rust resistant springs secure cone in
place for quick, tool-less installation.
7. Frame Vertical Adjustment Mechanism: Vertical adjustment mechanism
accommodates mounting to virtually any ceiling system using pre-installed
mounting bars, or 1/2" EMT tubing (by others). Single locking feature secures
all adjustments. Alignment holes and markings allow fixture to be pre-set
prior to installation.
8. Mounting Bars: 0.048" (18-ga.) Pre-installed, telescoping bars extend to 30"
long and lock securely into position. Built-in locking tabs provide positive
attachment to common T-bar systems. Self-centering feature simplifies instal-
lation in 24" O.C. grid systems. Attaches to steel or wood joists without acces-
sories.
9. Ballast: Electronic 120V or 277V. Magnetic dual voltage (120V & 277V).
Accessible from below for inspection and/or replacement without tools.
10.Junction Box: 0.048" (18-ga.) galvanized steel. UL listed for 8 No. 12 AWG,
90°C through branch circuit conductors; allows inspection from below.
11.Thermal Protector: (Not Shown) Meets NEC and UL requirements. Do not
install insulation above nor within 3" (76mm) of any part of the luminaire.
Electrical
Electronic Ballast: 120 or 277V, 50/60 Hz., encased, high power factor, T.H.D.
<15%, thermally and transient protected, RMI/RFI complies with FCC Part 18
non-consumer limits, shut-down circuit at end of lamp life, sound rating "A",
-5°F minimum starting temperature, Type 1 Outdoor rating.
Calculite
7" Aperture, ED17 (Open Rated) Ceramic Metal Halide, Wide Beam
9 7
11-7/8"
(301 mm)
Frame-In Kit
C770MHOE1 Electronic 120V / C770MHOE2 Electronic 277V 70W E17, ED17, BD17 (Open Rated)
C710MHOE1 Electronic 120V / C710MHOE2 Electronic 277V 100W E17, ED17, BD17 (Open Rated)
C770MHOU Magnetic 120V/277V
C710MHOU Magnetic 120V/277V
C715MHOU Magnetic 120V/277V
Electrical (cont.)
Ballast
70W MH
100W MH M90/M140
150MH
Magnetic Ballast: 120/277V dual voltage, 60 Hz., encased and potted, HX-HPF
circuit type, high power factor, sound rating "B", -20°F minimum starting
temperature, Type 1 Outdoor rating.
Ballast
70W MH
100W MH M90/M140
150MH

Options and Accessories

Auxiliary: Add suffix A to Frame-In Kit and Reflector Trim. See Spec. Sheet "A/E"
Emergency Lamp: Add suffix E to Frame-In Kit and Reflector Trim. See Spec.
Sheet "A/E"
Slope Ceiling Adapters: See Specification Sheet SCA.
Fuse (magnetic ballast): Add suffix F1 or F2 to Frame-In Kit (F1=120V, F2=277V)
Chicago Plenum: Consult Factory.
Labels
UL (Suitable for Damp Locations), CSA, I.B.E.W. For 150W, install fixtures with
minimum spacing: 3 feet from center-to-center of adjacent luminaries; 3 inch from
top of luminaire to overhead building member;1 1/2 feet from luminaire center to
side building member.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2004 Genlyte Thomas Group LLC (Lightolier Division) • A0504
® HID Downlight
3 1 2 4 6 5 9
7-3/8" (187 mm) Dia.
8-5/8" (200 mm) Dia.
Lamp
70W E17, ED17, BD17 (Open Rated)
100W E17, ED17, BD17 (Open Rated)
150W E17, ED17, BD17 (Open Rated)
ANSI Code Voltage Max. Amps Input Watts
M98/M139 120/277 0.67/0.29
120/277 0.90/0.43
M102 120/277 1.40/0.61
ANSI Code Voltage Max. Amps Input Watts
M98/M143 120/277 1.90/0.80
120/277 2.40/1.10
M102 120/277 3.70/1.60
Type:
a Genlyte Thomas Company
C7E170VW
10 8
Vertical Adjustment:
5/8" (16 mm) to
2 7/8" (73 mm)
2" (50 mm) max.
Ceiling Thickness
(Coated, Ceramic MH)
78
110
167
94
125
180
