Lightolier Calculite CS8142 Specification

Calculite
Page 1 of 2
2
3
4
1
8 3/4" Dia. (222 mm)
11 1/4" Dia. (286 mm)
Complete Fixture Ceiling Mount
CS8142HUCL
Clear Iridescence Free Reflector,
White Housing
Complete Fixture Wall Mount
CW8142HUCL
Clear Iridescence Free Reflector,
White Housing

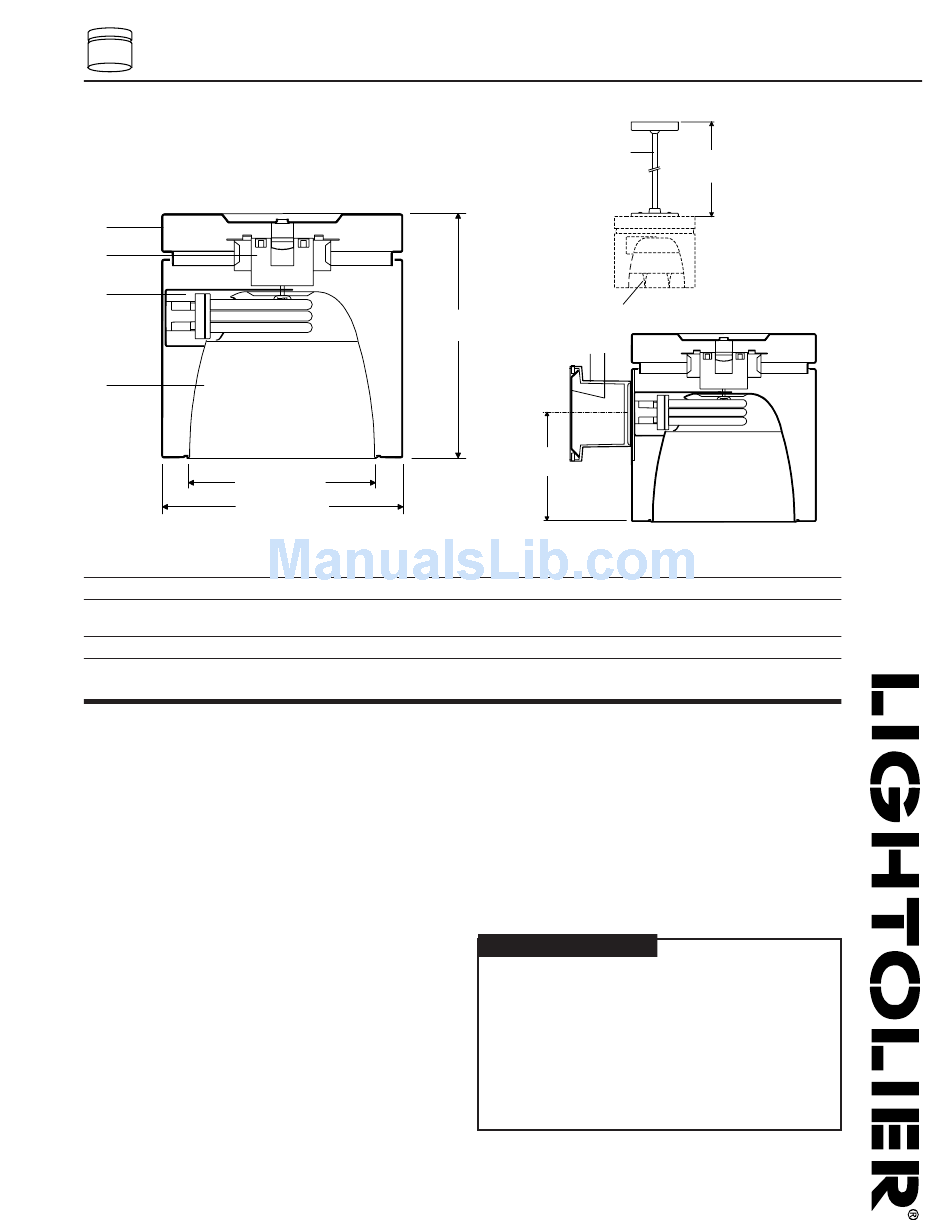

Features
1. Reflector: 16 ga. Specular Alzak
® aluminum, 55° visual cutoff to lamp and
lamp image, wide distribution. Iridescence Free finish.
2. Housing: Seamless, heavy-gauge aluminum. Two part construction provides
ventilation. Returned edge precisely seats reflector. Matte white finish.
3. Ballast: Mounted on support bracket, can be easily removed for service.
4. Socket Bracket: Die-formed steel. Attaches to reflector for correct optical
alignment.
5. Stem Kit: Cat. No. FA CSA36: Provided with 1/2" dia. stem and 4 1/2" dia.
canopy. Self aligning swivel provides maximum 38° vertical adjustment.
Installs over 4" octagonal outlet box. Stem can be cut to length on site.
Matte white baked enamel finish. Sold separately.
6. (Optional) Turbo Louver: (not shown) Specular clear Alzak
reflector with removable radial louver assembly combines good efficiency
with a shield aperture, 50° cutoff to lamp.
7. Crossbar: Install over 4" octagonal or rectangular outlet box.
8. Bracket: One piece cast aluminum with integral backplate.
Electrical
Note: For complete ballast electrical data and latest lamp/ballast compatibility
refer to "Ballast" specification sheet.
UL listed for 90°C supply conductors.
Compact Fluorescent Surface Cylinder
®
11 1/2"
(292 mm)
Lamp
26W/32W/42W Triple Tube
120V - 277V 4-Pin (Amalgam)
Lamp
26W/32W/42W Triple Tube
120V - 277V 4-Pin (Amalgam)

Options and Accessories

Other Housing and Reflector Finishes
Consult Factory
Frame & Mounting
Dimming
Fuse (Slow Blow)
Turbo Louver
Labels
UL listed for damp locations, I.B.E.W.
Alzak
aluminum deep ®
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
