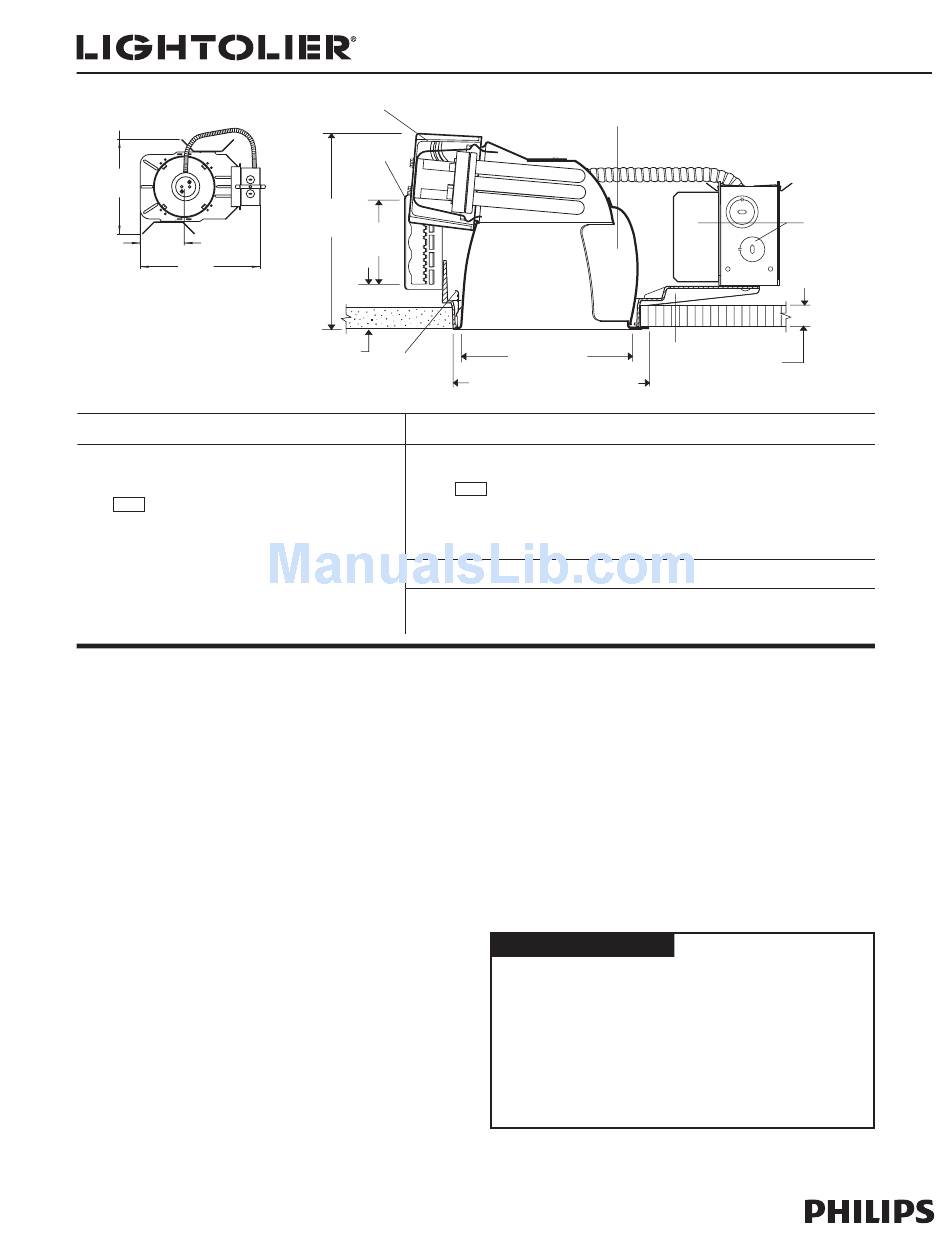

Lightolier Calculite 8081 Specification

Page 1 of 2
13-5/8"
10"
(346 mm)
(254mm)
4 5/8"
(117mm)
12 3/4"
(324mm)
Reflector Trim
8081CLW Clear Iridescence Free, White Flange
8081CLP Clear Iridescence Free, Polished Flange
8081CL Clear Iridescence Free, Molded Trim Ring
8081 Add suffix. See options for other finishes
Features
1. Downlight Wall Washer Reflector: 16 ga. Alzak
cutoff to lamp and lamp image. Provides vertical surface wall wash and
downlighting. Iridescence Free finish. Self-flanged or flangeless with molded
white trim ring (field paintable).
2. Socket Cup: Effectively dissipates heat and positions lamp holder.
Snaps onto reflector neck to assure consistently correct optical alignment
without tools.
3. Mounting Frame: Galvanized steel for dry or plaster ceilings. Accepts other
6" Triple Tube reflectors (see S6132BU Spec Sheet).
4. Retaining Springs: Precision-tooled steel friction springs secure reflector
to mounting frame for quick, tool-less installation.
5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4"
or 1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
6. Ballast/J-Box: Electronic 120V-277V. UL listed for through branch circuit
wiring with max of (8) No. 12AWG, 90°c supply conductors. Outboard
mounted to reduce heat transfer and maintain lamp efficacy and life.
Service from below without tools.
Electrical
Note: For ballast electrical data and latest lamp/ballast compatibility refer to
"Ballast" specification sheet for complete electrical data.
UL Listed for through branch circuit wiring with max of (8) No. 12 AWG, 90°C
supply conductors.

Options and Accessories

Comfort Clear Finishes
™
Clear CCL
Diffuse CCD
Champagne Bronze CCZ
Specify desired flange. W White, P Polished, Blank - Molded Ring
1
Lightolier is a Philips group brand
2
5
6 5/8"
(179 mm)
3"
10"
(76 mm)
(254 mm)
11-1/8"
(283 mm)
Top View
1" (25 mm) min.-
2-1/8" (54 mm) max.
aluminum, 55° lamp
®
Other Finishes
1
White WH
Calculite CFL Open Wall Washer
®
4
6" (152 mm) Dia.
6-1/2" Trimless
7-1/4" Self-Flanged
Trim (184 mm)
(165 mm)
Frame-In Kit
S6132BU 6" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Dimming Options:
S6132B
CU3 Lightolier PowerSpec 3% Dimming (120/277V) J1LD3 Lutron 5% Dimming (120V)
J2LD3 Lutron 5% Dimming (277V)
J1MX Mark 10 Dimming (120V)
Other dimming product available, please consult factory
Remodeler Frame-In Kits
6126BURM 6" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
6132BURM 6" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Options and Accessories (continued)
Emergency
Chicago Plenum
Existing/Thk. Ceiling
Emergency Ltg. Kit
Fuse (Slow Blow)
*See Spec. Sheets: FAEC, FAEM
Mounting Bars & Accessories; see Specification Sheet MBA.
Sloped Ceiling Adapters; see Specification Sheet SCA.
Labels
UL listed for damp locations.
Alzak is a registered trademark of ALCOA.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • C0711
6" Aperture Triple Tube Horizontal Lamp
1
3
1-1/8" (29 mm) max.
Ceiling Thickness
JUM7 Mark 7 Dimming (120/277V)
J2MX Mark 10 Dimming (277V)
Add suffix EM*
Use 6132BULC
FA EC6*
FA EM3E*
FA EM4E*
Add suffix F
Type:
8081
6
