Lightolier Calculite 8047 Specification

Page 1 of 2

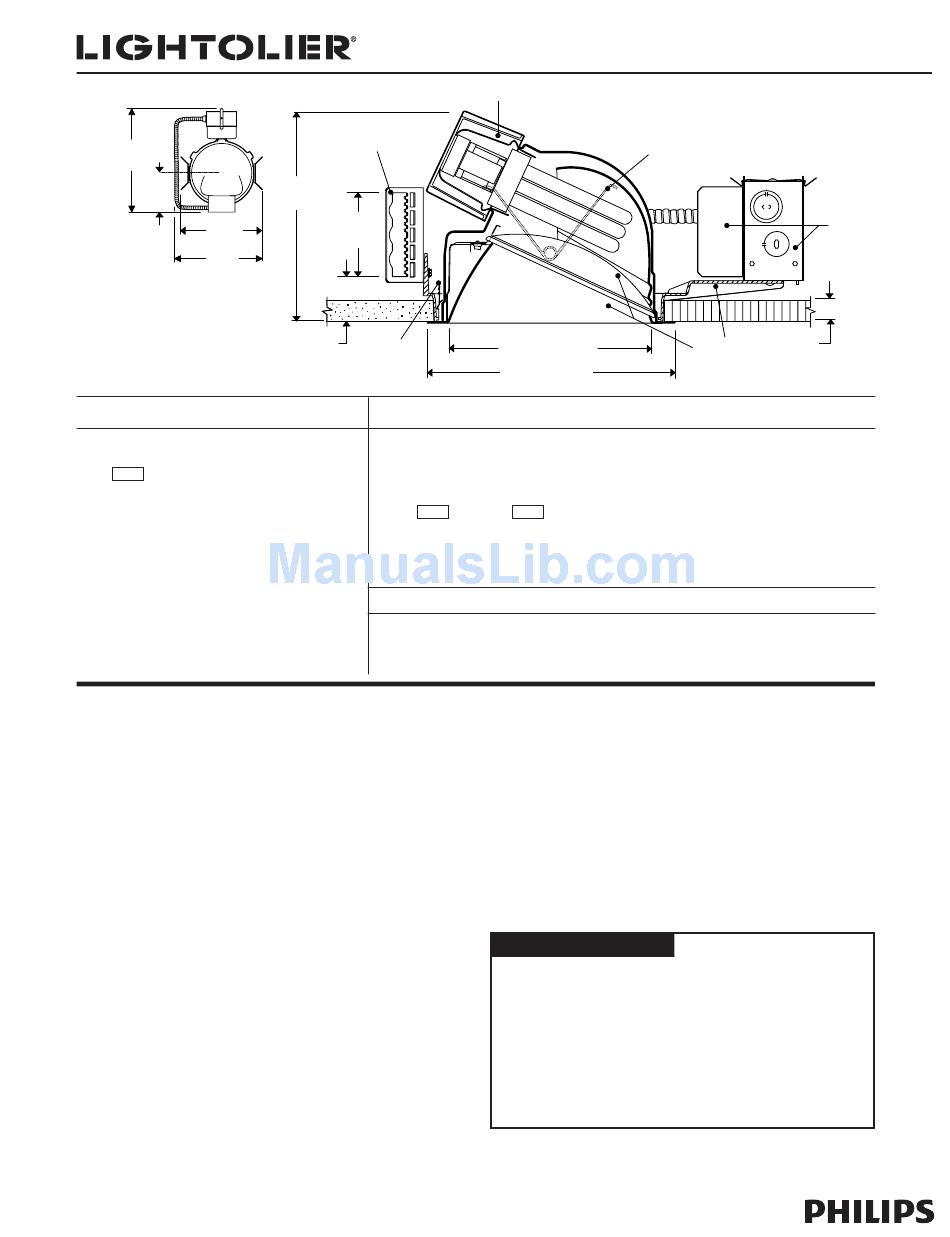

14-1/4"
(362 mm)
5-3/4"
(146 mm)
Top View
Ceiling Cutout: 8" (203 mm) Dia.
Reflector Trim
8047 CLW Clear Iridescence Free, White Flange
8047 CLP Clear Iridescence Free, Polished Flange
8047 Add Suffix. See options for other finishes.
Features
1. Optics: Directional prismatic glass spread lens and Alzak
direct light smoothly across and down wall. Rotates for correct orientation.
Aperture cone with Iridescence Free finish.
2. Socket Cup: Snaps onto reflector neck to assure consistently correct optical
alignment without tools.
4. Retaining Springs: Precision-tooled steel friction springs secure reflector
to mounting frame for quick, tool-less installation.
5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or
1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
6. Ballast/J-Box: Outboard mounted to reduce heat transfer and maintain
lamp efficacy and life. Service from below without tools.
7. Torsiontite Springs: Wire formed steel holds reflector/spread lens
assembly snug to housing.
Electrical
Note: For ballast electrical data and latest lamp/ballast compatibility refer to
"Ballast" specification sheet for complete electrical data.
UL listed for through branch circuit wiring with max of (8) No. 12 AWG, 90° C
supply conductors.

Options and Accessories

Comfort Clear™ Finishes
Clear CCL
Diffuse CCD
Champagne Bronze CCZ
Specify desired flange
1
W White, P Polished
Blank - Molded Ring
Lightolier is a Philips group brand
5
7-3/8"
(187 mm)
3"
11-3/8"
(289 mm) (76 mm)
12-1/2"
(318 mm)
1" (25 mm) min.-
2-1/8" (54 mm) max.
Frame-In Kit
S7126BU 7" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
S7132BU 7" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
S7142BU 7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Dimming Options:
S7132B
CU3
J2LD3
J1MX
Other dimming product available, please consult factory
Remodeler Frame-In Kits
7126BURM
7132BURM
7142BURM
"kick" reflector
®
Other Finishes
1
White WH
Specular Clear CL
Calculite CFL Lensed Wall Washer
®
2
7-1/8" (181 mm) Dia.
4
8-3/8" (213 mm)
Self-Flanged Trim
or S7142B
Lightolier PowerSpec 3% Dimming (120/277V) J1LD3 Lutron 5% Dimming (120V)
Lutron 5% Dimming (277V)
Mark 10 Dimming (120V)
7" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam))
7" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)
Options and Accessories (continued)
Emergency
Chicago Plenum
Existing/Thk. Ceiling
Emergency Ltg. Kit
Fuse (slow blow)
*See Spec. Sheets: FAEC, FAEM
Mounting Bars & Accessories; see Specification Sheet MBA.
Sloped Ceiling Adapters; see Specification Sheet SCA.
Labels
UL listed for damp locations, I.B.E.W.
Alzak is a registered trademark of ALCOA.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • C0711
