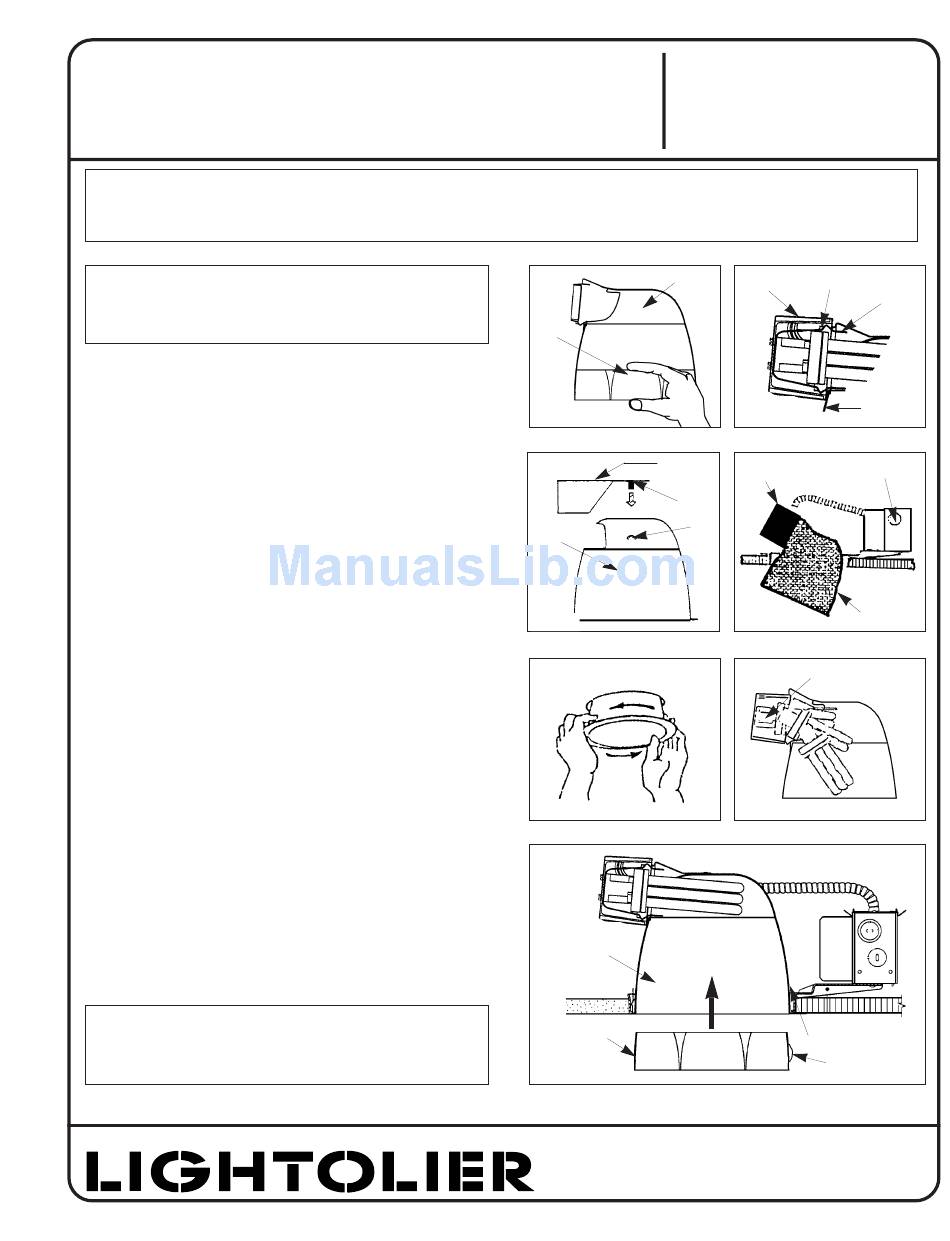

Lightolier CALCULITE 8037TB SERIES Instruction Sheet

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE
This fixture is intended for installation in accordance with the National Electrical Code and local regula-
tions. To assure full compliance with local codes and regulations, check with your local electrical inspector
before installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.
INSTALLATION PROCEDURE FOR CALCULITE
REFLECTOR TRIMS LOUVERED: 8037TB, 8038TB AND 8069 (TRIPLE TUBE) SERIES
WARNING: (RISK OF FIRE) DO NOT INSTALL INSULATION
WITHIN 3" OF FIXTURE SIDES OR WIRING COMPARTMENT,
NOR ABOVE FIXTURE IN SUCH A MANNER SO AS TO
ENTRAP HEAT.
A. Remove Louver (Fig. 1)
Pull LOUVER down from REFLECTOR.
B. INSTALL SOCKET CUP OR BRACKET (Fig. 2a)
Align tabs on SOCKET CUP with openings in REFLECTOR and
push in SOCKET CUP until RETAINING SPRING snaps in. Place
SOCKET BRACKET STUDS through holes in REFLECTOR. Secure
BRACKET from inside REFLECTOR with two supplied nuts.(Fig. 2b)
C. Push-Up Reflector Housing (Fig. 3)
Tilt REFLECTOR and insert SOCKET CUP into ceiling opening on
side opposite JUNCTION BOX. Pivot REFLECTOR and push it up
into ceiling.
NOTE: To remove REFLECTOR disengage the SOCKET
CUP by depressing the RETAINING SPRING. (Fig. 2) Turn
REFLECTOR counterclockwise while pulling downward.
After starting, use both hands to remove, if desired. (Fig. 4)
D. Lamping (Fig. 5)
Note: See SOCKET CUP for lamping information.
Tilt lamp base to engage, line up LAMP PINS with SOCKET. Bring
lamp to horizontal position and push into SOCKET. (Fig. 5) To
relamp, carefully pull straight out of SOCKET with one finger
place on the tip of the lamp to prevent hitting the REFLECTOR.
E. Attach Louver (Fig. 6)
Align SPRINGS in LOUVER with SLOT in REFLECTOR. Gently
push LOUVER straight up until SPRINGS snap into SLOTS in
REFLECTOR.
WARNING: USE ONLY WITH FRAME-IN KITS PROVIDED BY
LIGHTOLIER. USE OF OTHER MANUFACTURERS' FRAME-IN
KITS VOIDS THE UNDERWRITERS LABORATORIES LISTING
AND COULD CONSTITUTE A FIRE HAZARD.
INSTRUCTION SHEET NO.
IS:8037TB
0597
® COMPACT FLUORESCENT
REFLECTOR
LOU-
Fig. 1
SOCKET
BRACKET
STUD
REFLECTOR
Fig. 2b
TO REMOVE
Fig. 4
REFLECTOR
LOUVER
Fig. 6
®
®
FALL RIVER, MASSACHUSETTS 02720
Page 1 of 2
SLOT
SOCKET
RETAINING
CUP
SPRING
REFLEC-
Fig. 2a
JUNCTION
SOCK-
BOX
ET
REFLECTOR
Fig. 3
SOCKET
Fig. 5
SLOT IN REFLECTOR
SPRIN
