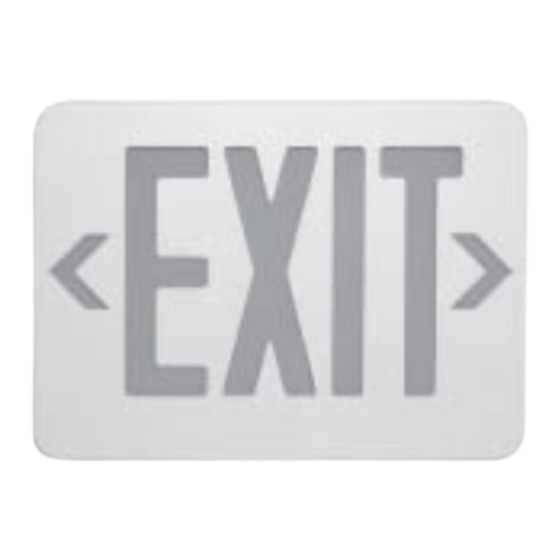

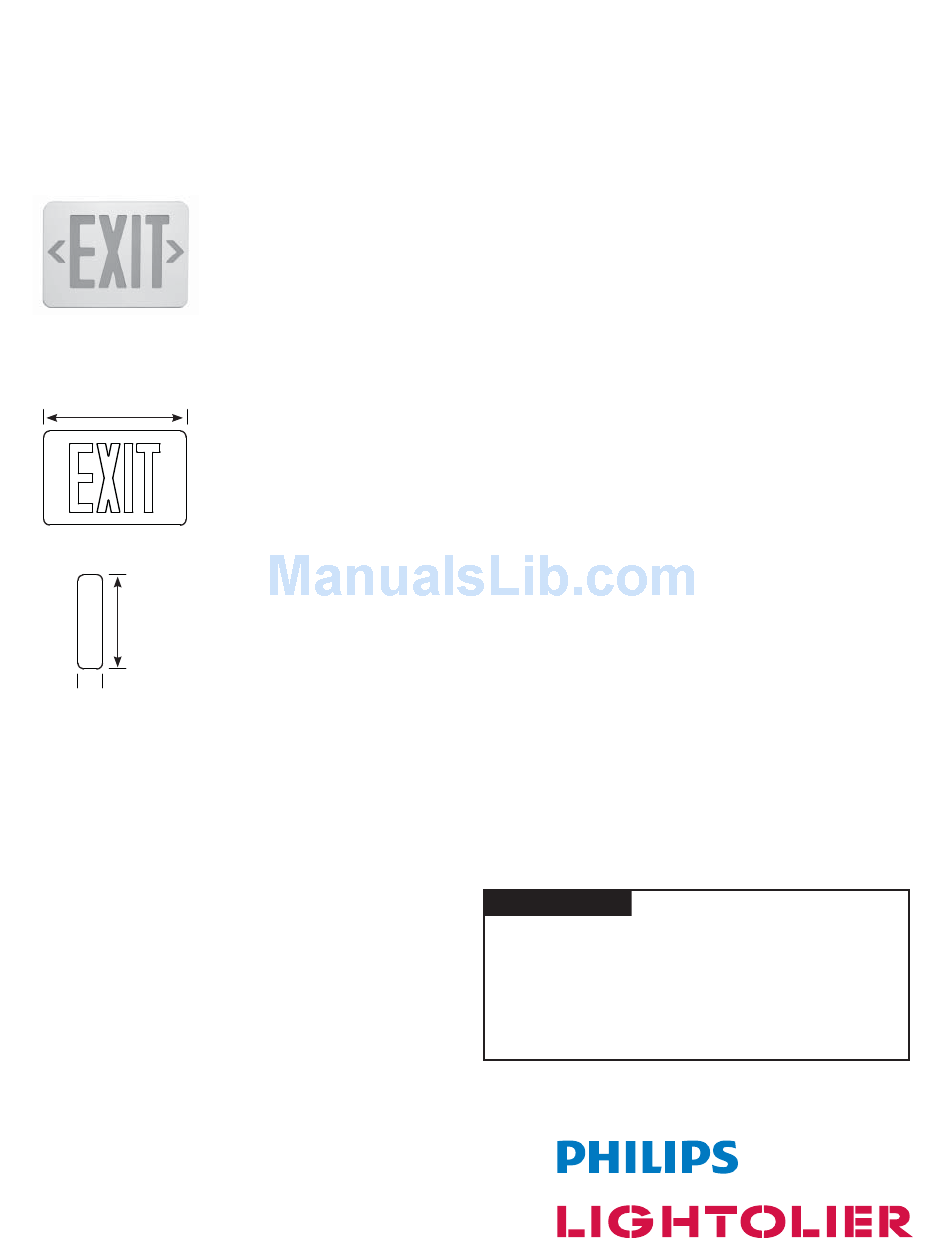

LLNURW
12.25"
(31.11 cm)
8.25"
(20.95 cm)
1.75"
(4.5 cm)
Features
Illumination: Illumination
of the exit stencil face is
accomplished with long-lasting,
high-output Light Emitting
Diodes (LEDs). Hot spots and
striations are eliminated by
the internal "light chamber"
specially designed around the
high-performance LED array.
Housing: Impact-resistant, UL
94, 5 VA thermoplastic housing
with NFPA-complaint, field-
selectable chevrons. Chevrons
can be easily removed and
re-installed. White housing
is standard, black housing is
available as an option. Stencil
face is easily removed for
installation, maintenance and
inspection. Housing design
simplifies installation, and
does not require hard wire
terminations inside of the
exit housing. The installation
process enables the installer
to easily make all wiring
connections in the junction
box, while all mechanical
connections between the exit
housing and canopy are made
tool free. Universal top, side,
or back mounting. Canopy
furnished with all models. No
canopy needed for back-to-wall
mounting.
T
HERMOPLASTIC
Operating Temperature
Range: Damp Location
68°F (20°C) to 104°F (40°C)
Electronics: AC Only -
120/277 VAC dual voltage
input. Self-Powered - 120/277
VAC dual voltage input with
surge-protection, solid-state
circuitry provides for a reliable
charging system. Standard
features include low voltage
disconnect, AC lockout and
brownout protection.
Electrical Specifications:
AC Only Red and Green:
0.026 A (120 VAC)
0.012 A (277 VAC)
Self-Powered Red and Green:
0.033 A (120 VAC)
0.017 A (277 VAC)
Job Information
Type:
Job Name:
Cat. No.:
Notes:
LL Series
LED E
Page 1 of 2
Battery
Maintenance free, sealed nickel
cadmium battery supplies
90 minutes of emergency
power, and has an operating
temperature range of 68°F
(20°C) to 104°F (40°C).
Code Compliance
UL 924 and UL damp location
listed. NFPA 101, NEC, BOCA,
OSHA and IBC illumination
standards
Warranty
Five year full electronics
warranty. Five year full plus
five year prorated battery
warranty.
XIT
