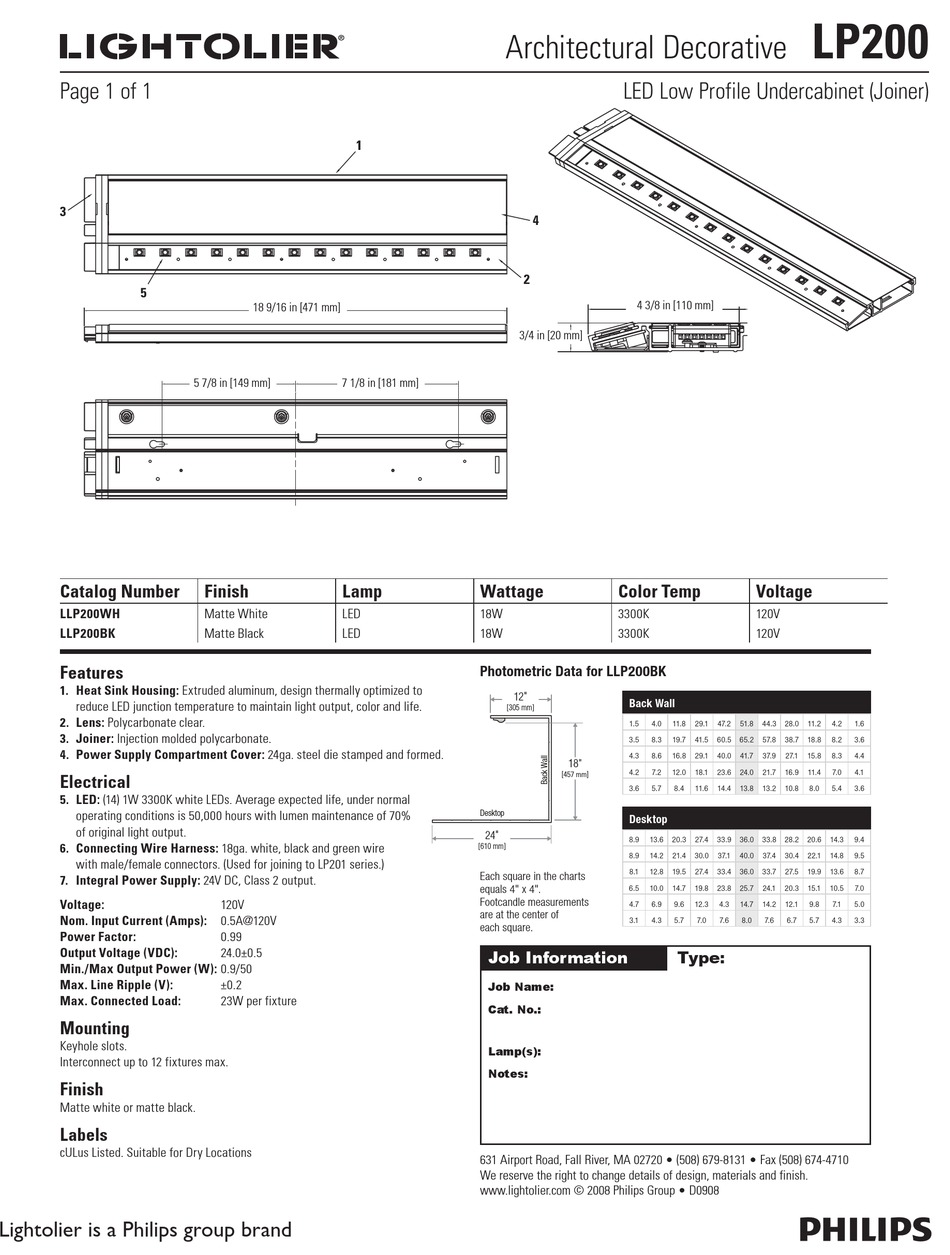

Lightolier LP200 Specification

Page 1 of 1
3
5
Catalog Number
LLP200WH
LLP200BK
Features
1. Heat Sink Housing: Extruded aluminum, design thermally optimized to
12"
reduce LED junction temperature to maintain light output, color and life.
[305 mm]
2. Lens: Polycarbonate clear.
45°
3. Joiner: Injection molded polycarbonate.
4. Power Supply Compartment Cover: 24ga. steel die stamped and formed.
18"
[457 mm]
Electrical
5. LED: (14) 1W 3300K white LEDs. Average expected life, under normal
Desktop operating conditions is 50,000 hours with lumen maintenance of 70%
of original light output.
24"
6. Connecting Wire Harness: 18ga. white, black and green wire
[610 mm]
with male/female connectors. (Used for joining to LP201 series.)
7. Integral Power Supply: 24V DC, Class 2 output.
Voltage:
J100 (angled 45 deg)
Nom. Input Current (Amps):
Power Factor:
Output Voltage (VDC):
Min./Max Output Power (W): 0.9/50
Max. Line Ripple (V):
Max. Connected Load:
Mounting
Keyhole slots.
Interconnect up to 12 fixtures max.
Finish
Matte white or matte black.
Labels
cULus Listed. Suitable for Dry Locations
Lightolier is a Philips group brand
18 9/16 in [471 mm]
5 7/8 in [149 mm]
Finish
Matte White
Matte Black
12"
[305 mm]
90°
18"
[457 mm]
Desktop Desktop
24" 24"
[610 mm] [610 mm]
120V
0.5A@120V
0.99
24.0±0.5
±0.2
23W per fixture
Architectural Decorative
1
2
3/4 in [20 mm]
7 1/8 in [181 mm]
Lamp Wattage
LED 18W
LED 18W
Photometric Data for LLP200BK
12" 12"
[305 mm] [305 mm]
18"
[457 mm]
Desktop
24"
[610 mm]
Each square in the charts
equals 4" x 4".
Footcandle measurements
MIC100
are at the center of
each square.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • D0908
LED Low Profile Undercabinet (Joiner)
4
4 3/8 in [110 mm]
Color Temp
3300K
3300K
Back Wall
1.5 4.0 11.8 29.1
3.5 8.3 19.7 41.5
4.3 8.6 16.8 29.1
18"
4.2 7.2 12.0 18.1
[457 mm]
3.6 5.7 8.4 11.6
Desktop
8.9 13.6 20.3 27.4
8.9 14.2 21.4 30.0
8.1 12.8 19.5 27.4
6.5 10.0 14.7 19.8
4.7 6.9 9.6 12.3
3.1 4.3 5.7 7.0
Type:
LP200
Voltage
120V
120V
47.2 51.8 44.3 28.0 11.2 4.2 1.6
60.5 65.2 57.8 38.7 18.8 8.2 3.6
40.0 41.7 37.9 27.1 15.8 8.3 4.4
23.6 24.0 21.7 16.9 11.4 7.0 4.1
14.4 13.8 13.2 10.8 8.0 5.4 3.6
33.9 36.0 33.8 28.2 20.6 14.3 9.4
37.1 40.0 37.4 30.4 22.1 14.8 9.5
33.4 36.0 33.7 27.5 19.9 13.6 8.7
23.8 25.7 24.1 20.3 15.1 10.5 7.0
4.3 14.7 14.2 12.1 9.8 7.1 5.0
7.6 8.0 7.6 6.7 5.7 4.3 3.3
