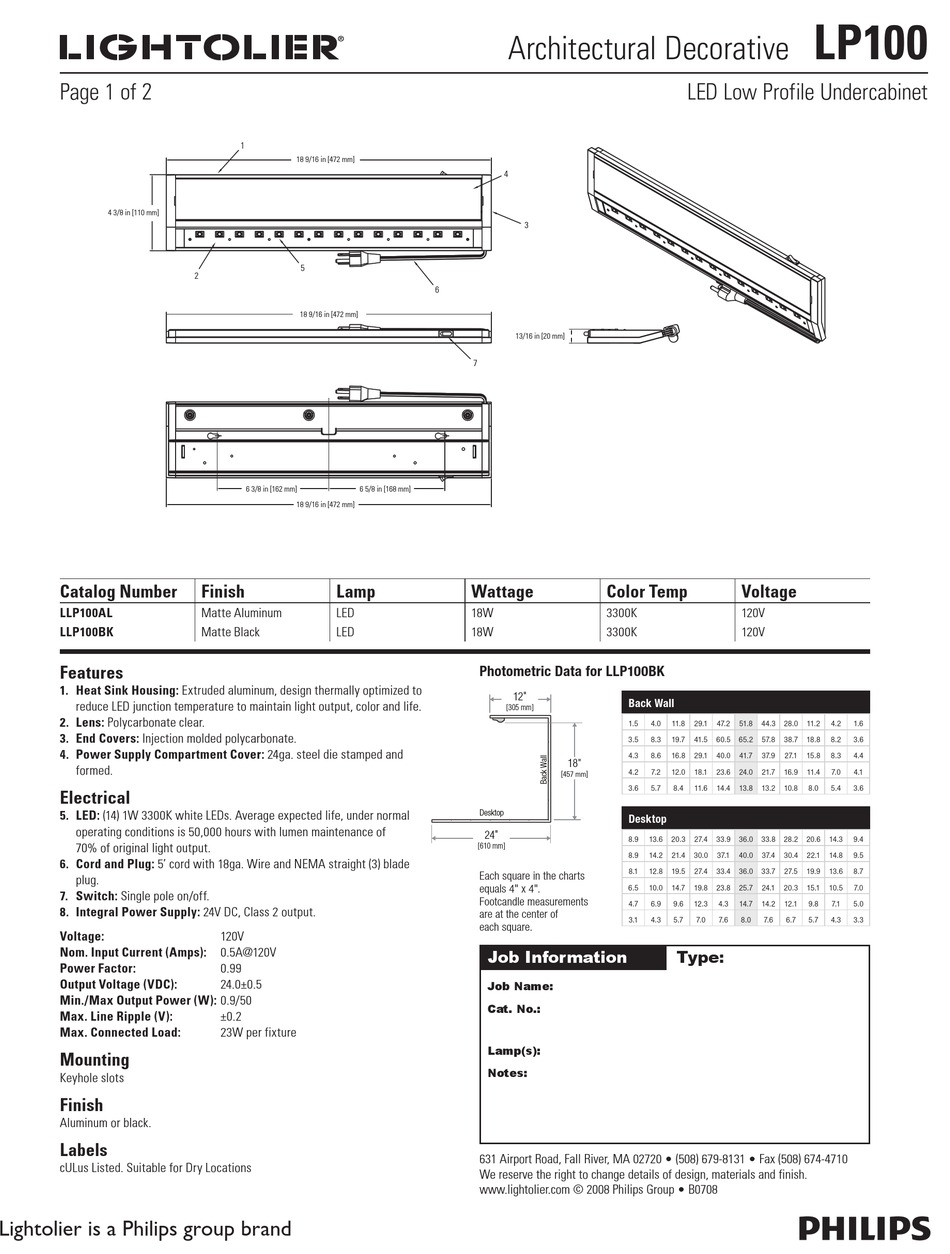

Lightolier LP100 Specification

Page 1 of 2
4 3/8 in [110 mm]
Catalog Number
LLP100AL
LLP100BK
Features
1. Heat Sink Housing: Extruded aluminum, design thermally optimized to
12"
reduce LED junction temperature to maintain light output, color and life.
[305 mm]
2. Lens: Polycarbonate clear.
45°
3. End Covers: Injection molded polycarbonate.
4. Power Supply Compartment Cover: 24ga. steel die stamped and
18"
formed.
[457 mm]
Electrical
5. LED: (14) 1W 3300K white LEDs. Average expected life, under normal
Desktop
operating conditions is 50,000 hours with lumen maintenance of
24"
70% of original light output.
[610 mm]
6. Cord and Plug: 5' cord with 18ga. Wire and NEMA straight (3) blade
plug.
7. Switch: Single pole on/off.
J100 (angled 45 deg)
8. Integral Power Supply: 24V DC, Class 2 output.
Voltage:
Nom. Input Current (Amps):
Power Factor:
Output Voltage (VDC):
Min./Max Output Power (W): 0.9/50
Max. Line Ripple (V):
Max. Connected Load:
Mounting
Keyhole slots
Finish
Aluminum or black.
Labels
cULus Listed. Suitable for Dry Locations
Lightolier is a Philips group brand
1
18 9/16 in [472 mm]
5
2
18 9/16 in [472 mm]
6 3/8 in [162 mm]
18 9/16 in [472 mm]
Finish Lamp
Matte Aluminum LED
Matte Black LED
12"
[305 mm]
90°
18"
[457 mm]
Desktop Desktop
24" 24"
[610 mm] [610 mm]
120V
0.5A@120V
0.99
24.0±0.5
±0.2
23W per fixture
Architectural Decorative
4
3
6
13/16 in [20 mm]
7
6 5/8 in [168 mm]
Wattage
18W
18W
Photometric Data for LLP100BK
12" 12"
[305 mm] [305 mm]
18"
[457 mm]
Desktop
24"
[610 mm]
Each square in the charts
equals 4" x 4".
Footcandle measurements
MIC100
are at the center of
each square.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
