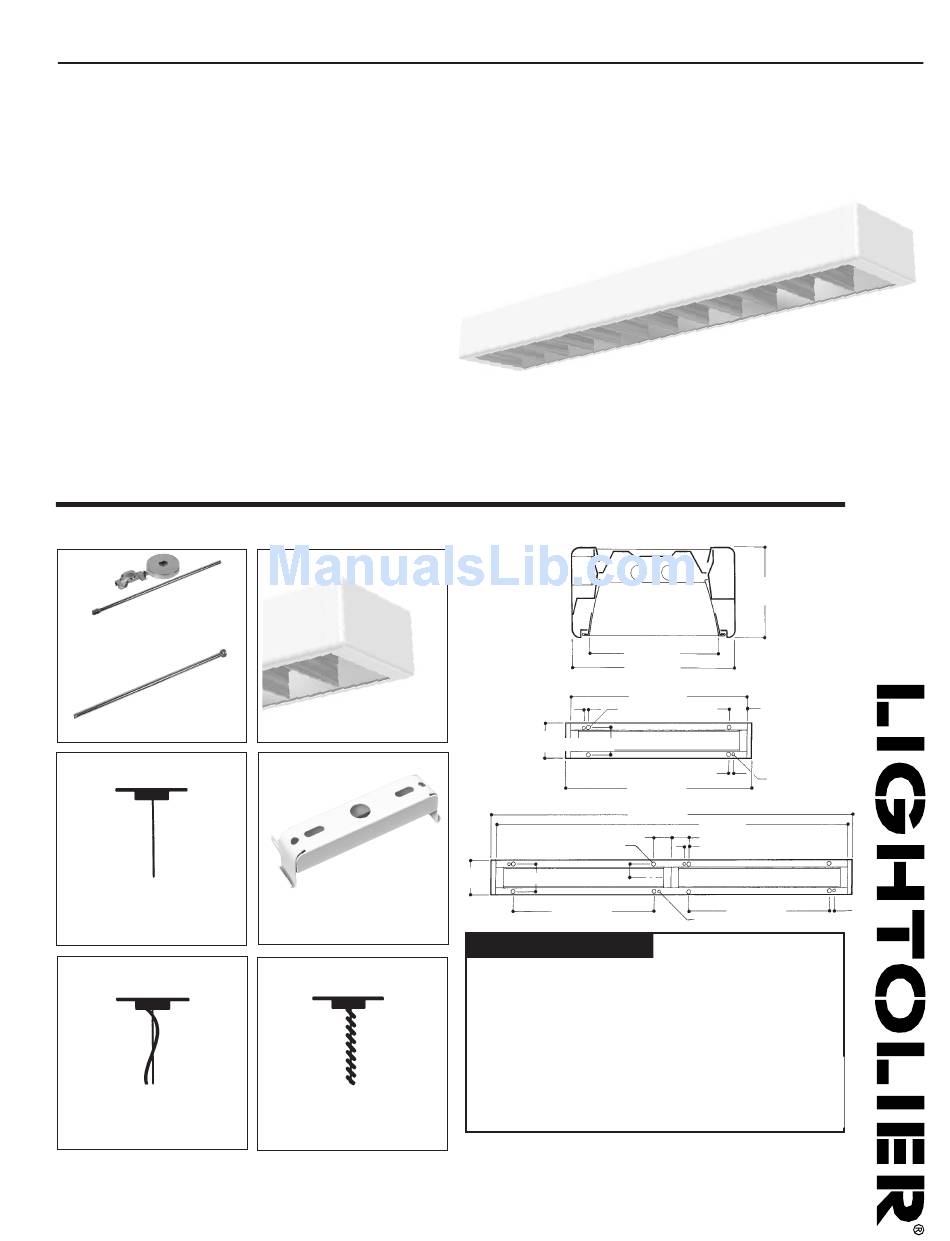

Lightolier Lytecel LL4MF8LR254 Specification

Page 1 of 2
Features
• Downlight surface/pendant.
• Softly rounded corners and edges create a subtle architectural
appearance.
• 48" and 96" modular lengths without end caps.
• 48" long louver gives an uninterrupted louver appearance when row
mounted.
• No visible fasteners.
• Self-aligning ends for hairline joints in continuous row mounting.
• Efficiency 68.7% (8 cell). Efficiency 62.2% (12 cell).
• Spacing ratio 1.5 (8 cell and 12 cell).
• 20 gauge body.
• Die-cast aluminum end caps.
• Pre-anodized low iridescence semi-specular aluminum parabolic
louver with protective film dust bag (standard).
• 95% reflective specular aluminum top reflector.
• Spring-loaded latches.
• Bead safety chain allows louver to be suspended safely for
relamping.
• Meets New York City requirements.
Mounting Methods/Features
Chrome Pendant mounting stem sets
(Optional). Catalog Number: 18048
Chrome Pendant mounting stem extension
(Optional). Catalog Number: 18148.
Canopy and Single Cable, adjustable 6" to 60".
Canopy is white. Catalog Number: WC60.
Canopy, Straight Cord and Single Cable
adjustable 6" to 60". Canopy, Straight Cord is
white. Catalog Number: WCC60.
2/05
End cap, two provided with Individual Fixture
(48") length), none provided with Joiner Fixture
(96" length). Catalog Number: LLF END CAP.
Slide Grip Hanger, two provided with
Individual Fixture (48") length, one provided
with Joiner Fixture (96" length). Catalog
Number: LLF SLIDE GRIP.
Canopy, Coiled Cord, Single Cable adjustable
6" to 60". Canopy, Coiled Cord is white.
Catalog Number: WCCC60.
Lytecel Linear
Downlight, Surface/Pendant, 4-5/8" Deep, 8-9/16" Wide
48" or 96" Nominal Lengths
Dimensions
6-1/2" (165mm)
8-9/16" (217mm)
48" (1219mm)
1" (25.4mm)
7/8" Dia. K.O.s 4 places
8-9/16"
7-1/4" (184mm)
(217mm)
50-3/4" (1289mm)
98-3/4" (2508mm)
4-1/4" (108mm)
7/8" Dia. K.O.s 8 places
8-9/16"
3-5/8" (92mm)
7-1/4" (184mm)
(219mm)
39-1/2" (1003mm)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2005 a Genlyte company
A0902
LL4MF8LR254
, 2 Lamp T5
(Without End Caps)
4-5/8"
(118mm)
4-1/4"
(108mm)
1" (25.4mm)
5/8" Dia.
K.O.s 2 places
96" (2438mm)
4-1/4" (108mm)
1" (25.4mm)
39-1/2" (1003mm)
(25.4mm)
5/8" Dia. K.O.s 4 places
Type:
www.lightolier.com
Section 5/Folio K35-12
1"
