Lightolier 1000AICM Specification

Page 1 of 1
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets
Reflector Cone
1000AICM 1045 1012
1046 1012NM
1046CD 1013
1013CD
1013BK
1013WH
1013NM
1013CDNM
1013BKNM

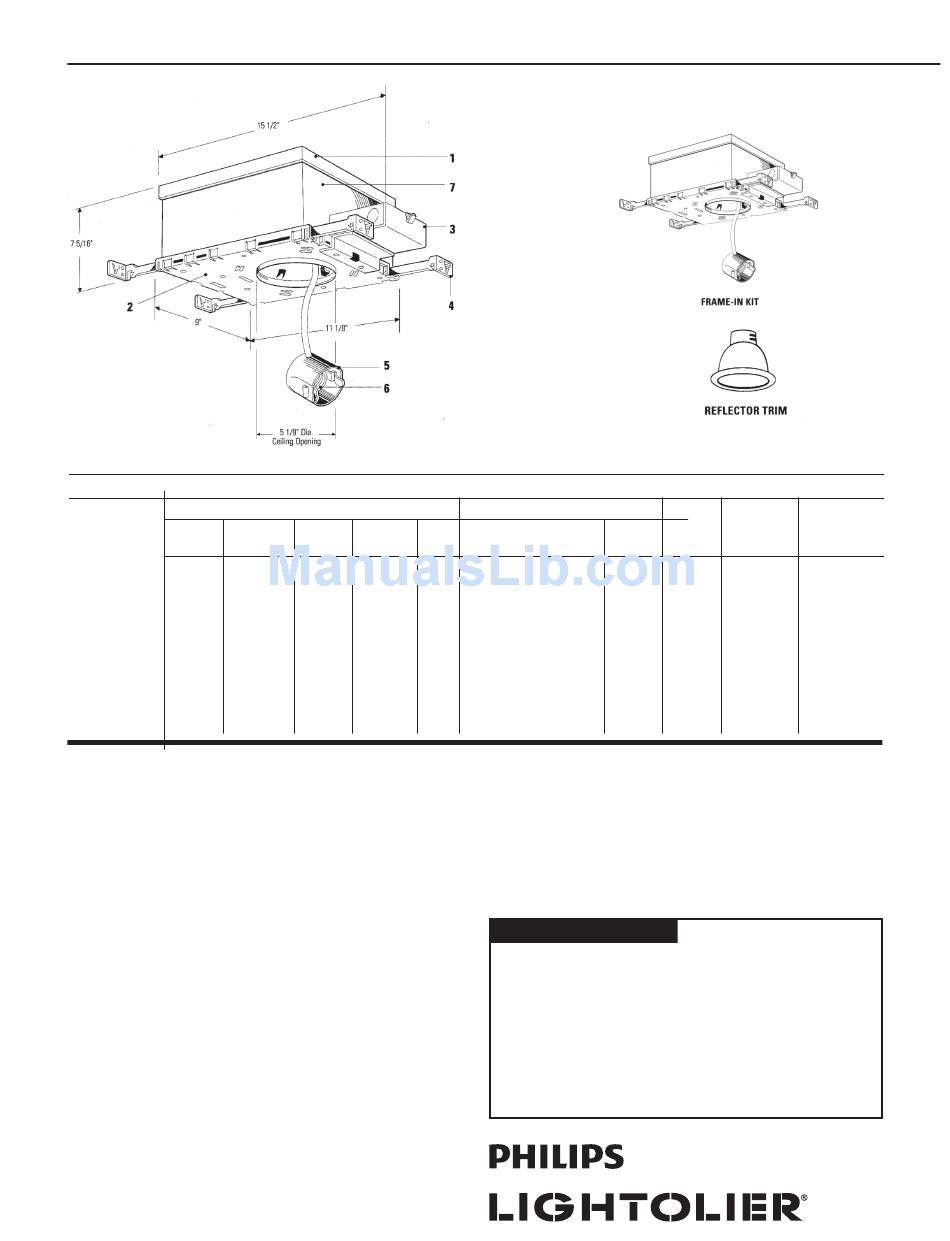

Features
1. Housing: .026" (#20 ga.) galvanized steel. U.L. listed for direct contact with
thermal insulation. AirSeal housing minimizes air leakage to less than 2 CFM at
1.57 psf, which complies with Washington State Energy Code (Section 502.4)
and reduces heat loss and condensation on ceiling. Access door for inspection
of junction box.
2. Mounting Frame: .036" (#20 ga.) galvanized steel. Accommodates all ceilings
up to 1" thick. 3/8" deep integral lip. Four slots are positioned 90º apart to
simplify alignment. Push-in/twist-out rotoclips hold reflector flush to ceiling.
3. Junction Box: 2" x 4" x 4", .060" (#14 ga.) galvanized steel. U.L. listed for,
maximum of 6 No. 12 ga., 90º C through branch circuit conductors. Quick release
"L" shaped cover for outside access to wiring. Access door inside of housing
allows easy inspection of wiring without removal of housing. Integral cable
clamps permit attachment of nonmetallic Romex
need for additional connectors.
4. Mounting Bars: .059" (#16 ga.) galvanized steel. 13" long bars extend to 27",
rotatable and lockable, with integral T-bar tabs.
5. Socket Housing: Impact extruded aluminum or galvanized steel.
6. Socket: Porcelain medium base; nickel plated screw shell. Pre-wired with #18
ga. SF1 leads to junction box.
7. Thermal Protector: Meets NEC and U.L. requirements. Located inside housing
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • G0810
Lytecaster Recessed Downlighting
5" Aperture Incandescent Insulated Ceiling, AirSeal Frame-In Kit
Open Downlight
Satin Basic
Cone Baffles White
1008 1005 1071
1008NM 1005NM
1010 1005BNM
1010NM 1005WH
1076
1076WH
or armored cable without the
®
Recessed
Adjustable Eyeball
1027 1029 1022
1027CD 1029CD 1022WH
1027NM 1029NM 1082
1027CDNM 1029CDNM
1027BKNM 1029BKNM
1027WH 1029GDNM
1038 1029CLNM
1038NM 1029CL
1048 1029GD
1048NM 1029BK
1029BNM 1029WH
Options & Accessories
Mounting Bars:
T-Bar Ceiling Clips:
Extra-Thick Ceiling Mounting Ring:
277V Remote Step-Down Transformer: 7997 - 277V down to 120V 300W max. load.
Labels
UL (Suitable for Damp Locations), I.B.E.W.
Romex is a registered Trademark of General Cable Industries Inc.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
1000AICM
Enclosed Open Wall
Diffusers Wet Location Washer
1021 1084CD 1035
1024 1084WH 1035WH
1090 1085
1964 - 20" set of (2)
1956 - set of (4)
1967B - 1 1/4" to 2" thick ceilings.
Type:
