Ceiling Opening
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit
1000LVR

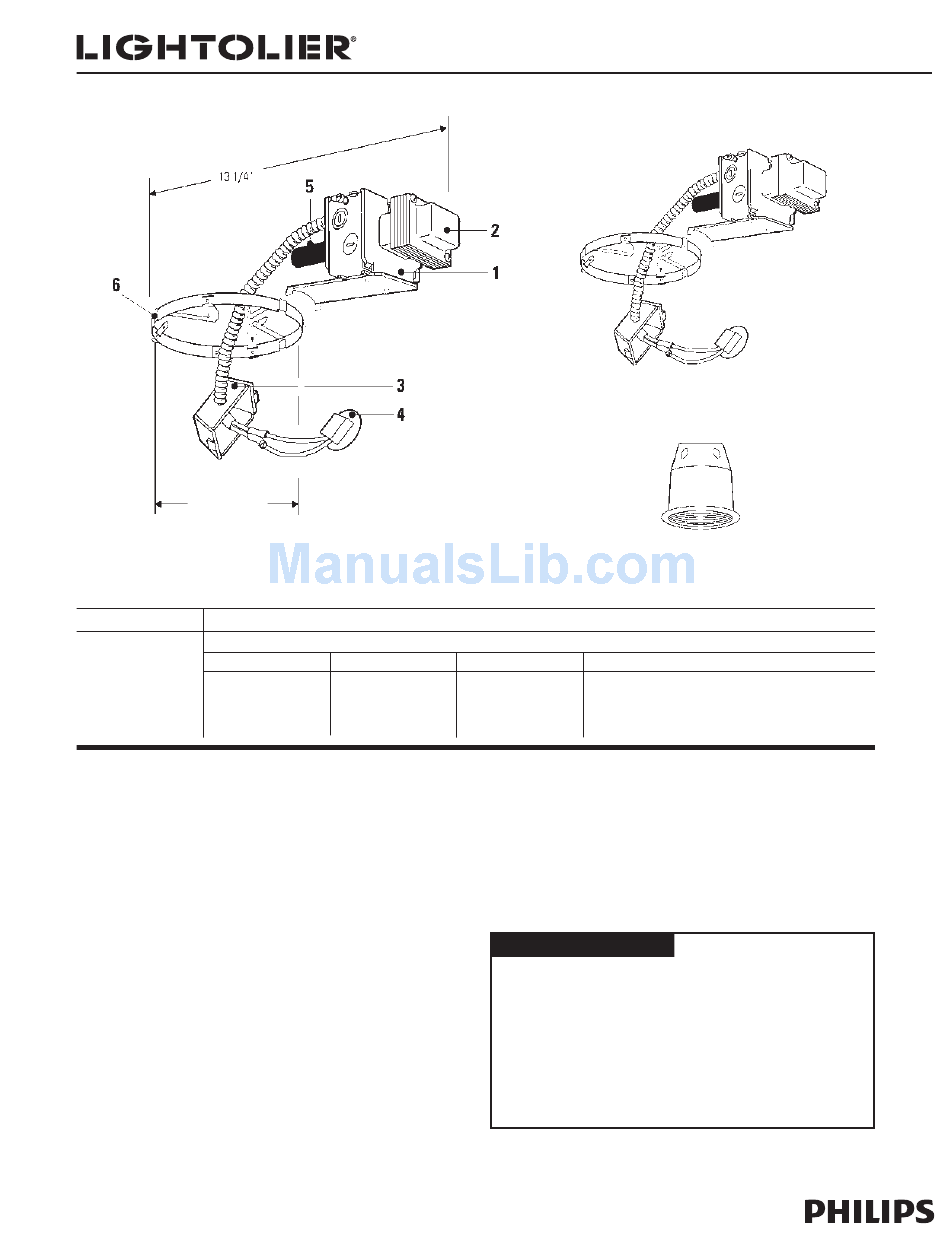

Features
1. Junction Box: 4" x 3 1/2" x 2"; .063" (#14 ga.) galvanized steel. UL listed for
90° C supply wire. Integral cable clamps permit attachment of nonmetallic
Romex
or armored cable without need of additional connectors.
®
2. Transformer: Outboard mounted, magnetic, 120V. primary, nominal 12V.
secondary. Removable from below.
3. Socket Housing: .036" (#20 ga.) galvanized steel.
4. Socket: Field replaceable. Two pin socket, pre-wired with #18 SF1 leads to
junction box.
5. Thermal Protector: Meets NEC and UL requirements. Insulation must be
kept 3" away from fixture sides and wiring compartments and must not be
placed above fixture in a manner which will entrap heat.
6. Mounting Ring: .048 (#18 ga.) galvanized steel. Accommodates existing
ceilings up to 2" thick. Attaches securely to any type of ceiling material
without tools using (3) mounting straps provided. Push-in/twist out clips hold
reflector flush to ceiling. Includes adhesive backed aperture template.
Dimming
Dimming Controls: Use only dimmers specifically designed for use with
transformers, like Lightolier Onset
Lightolier Controls dimming system. Low voltage fixtures may produce audible
sound when used with dimmers, which may be objectionable in acoustically criti-
cal areas.
Lightolier is a Philips group brand
5" Aperture Standard Low Voltage MR16 Non-IC Remodeler Frame-in Kit
5 1/2"
Reflector Trims — See Individual Reflector Trim Specification Sheets
Baffles
Aperture Cone
1055LV
1056LV 1064WDLV
1055WHLV
1063LV 1064WDPLV
1064LV
1064CDLV
, Sunrise
series LV or VA dimmers, or any
®
®
Lytecaster
Recessed Downlighting
®
Adjustable
Pinhole
Elbow
1052LV
1062LV
Options & Accessories
MR16 Socket Replacement:
277V Remote Step
Down Transformer:
Labels
UL (Suitable for Damp Locations), I.B.E.W.
Romex
is a registered Trademark of General Cable Industries Inc.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • H0711
1000LVR
Frame-In Kit
Reflector Trim
1975A
7997 - 277V down to 120V
300W max. load.
Type:
