Lightolier Lytecaster 1004F18ES Specification

Recessed downlighting

Advertisement

Quick Links

Page 1 of 1

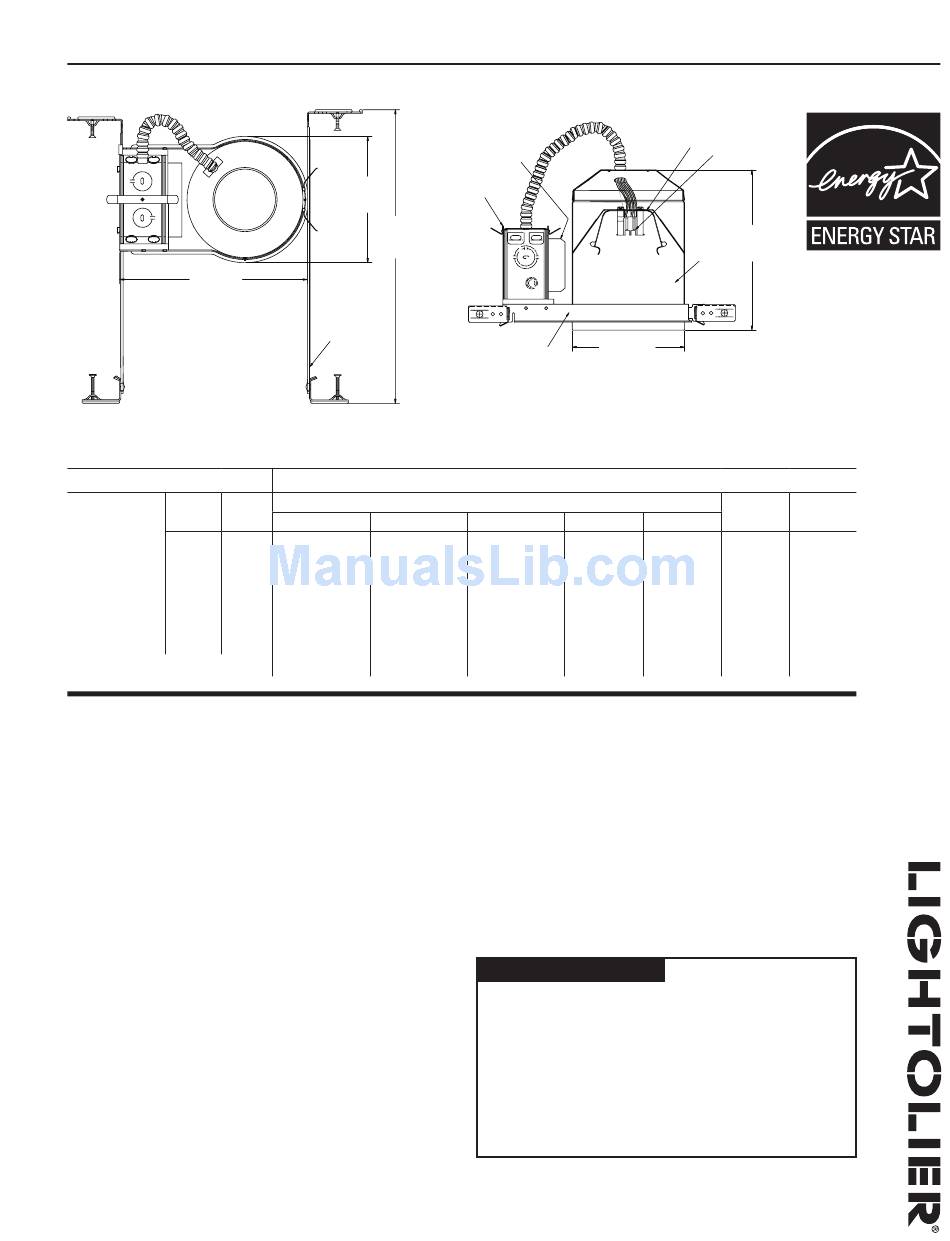

5" Aperture
9"
OVERALL
LENGTH
Ceiling Opening 5 3/8" diameter
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit
Voltage
Lamp
1004F18ES
120V
18W
Quad or
1004F18ESN
Triple
Tube
** Use Triple Tube Lamp Only.
Features
1. Housing: .032" (#20 ga.) UL listed for direct contact with thermal insulation.
Allows installation in ceilings up to 2" thick. Can be removed for access
to junction box, ballast and ceiling plenum. AirSeal
air leakage to less than 2 CFM at 1.57 PSF (or 75pa), which complies with
Model Energy Code (Section 602.3.3) and Washington State Energy Code
(Section 502.4) and reduces heat loss and condensation in ceiling.
2. Mounting Frame: .048" (#18 ga.) galvanized steel. Locks into position along
length of mounting bars with locking spring and bendable slot. (3) slots 90°
apart simplify alignment.
3. Junction Box: 2" X 4" X 3 1/2" (22 cu. in.) .032" (#22 ga.) galvanized steel.
UL listed for branch circuit wiring supplying connected luminaires. Integral
cable clamps permit attachment of non-metallic (#12 or #14 ga.) Romex
cable without tools or additional connectors.
4. Mounting Bars: .059" (#16 ga.) galvanized steel. Bars pivot for easy
attachment and wire-in below ceiling line. Bars extend to accommodate 16"
to 24" O.C. joist spacing. Bars can accommodate 9" O.C. joist spacing after
a slight field modification (see Instruction Sheet). Features integral self-
tapping phillips screws for secure attachment to wood or metal construction.
Attaches to T-bar ceilings without the need of accessories.
5. Socket Housing: Trim retaining spring secures trim to any height on
housing wall.
6. Socket: (4 Pin,GX24q-2) base, molded thermo-plastic. Pre-wired with #18
AWG leads to junction box.
7. Ballast: Electronic 120V, end of life protected, FCC class "B" consumer
limits, class "A" sound rating. Energy Star
Electrical
Input Watts: 19
Amps: .16
Ballast Factor: 1.0
Power Factor: .97
®
Lytecaster
Recessed Downlighting
0
®
1 Lt 18W Quad/Triple Tube Compact Fluorescent IC Frame-In Kit
5 3/4"
OVERALL
WIDTH
13" MIN.
24" MAX.
4
Reflector Trims — See Individual Reflector Trim Specification Sheets
Anodized Reflector Anodized Cone
1045
1012
1046
1012NM
1046CD
1013
1013BK
1013BKNM
1013CD
1013CDNM
1013NM
1013WH
®
housing minimizes
®
®
qualified.
7
3
5"
APERATURE
2
Open Downlight
Satin Cone
Baffles
1008
1005
1008NM
1005BNM
1010
1005NM
1010NM
1005WH
1076
1076WH
Electrical (cont.)
Max THD %: 10
Min Start Temp: 0˚F/ -18˚C
Options & Accessories
®
AirSeal
Kit: LAS56 (optional)
Note: Use only if factory installed tape or knockouts are removed from vertical
adjustment slots in housing wall.
Labels
UL (Type IC Suitable for Damp Locations)
Complies with Air Leakage Requirements stated in the Model Energy Code,
California Title 24 and the Washington State Energy Code.
®
Romex
is a registered trademark of General Cable Industries Inc.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • C0711
1004F18ES
5
6
7 1/2"
OVERALL
HEIGHT
1
Enclosed
Wall
Diffusers
Washer
Basic White
1071
1021
1035
1024
1035WH
1078
1085
1177LX**
1095
1096
1096CD
Type:
www.lightolier.com
