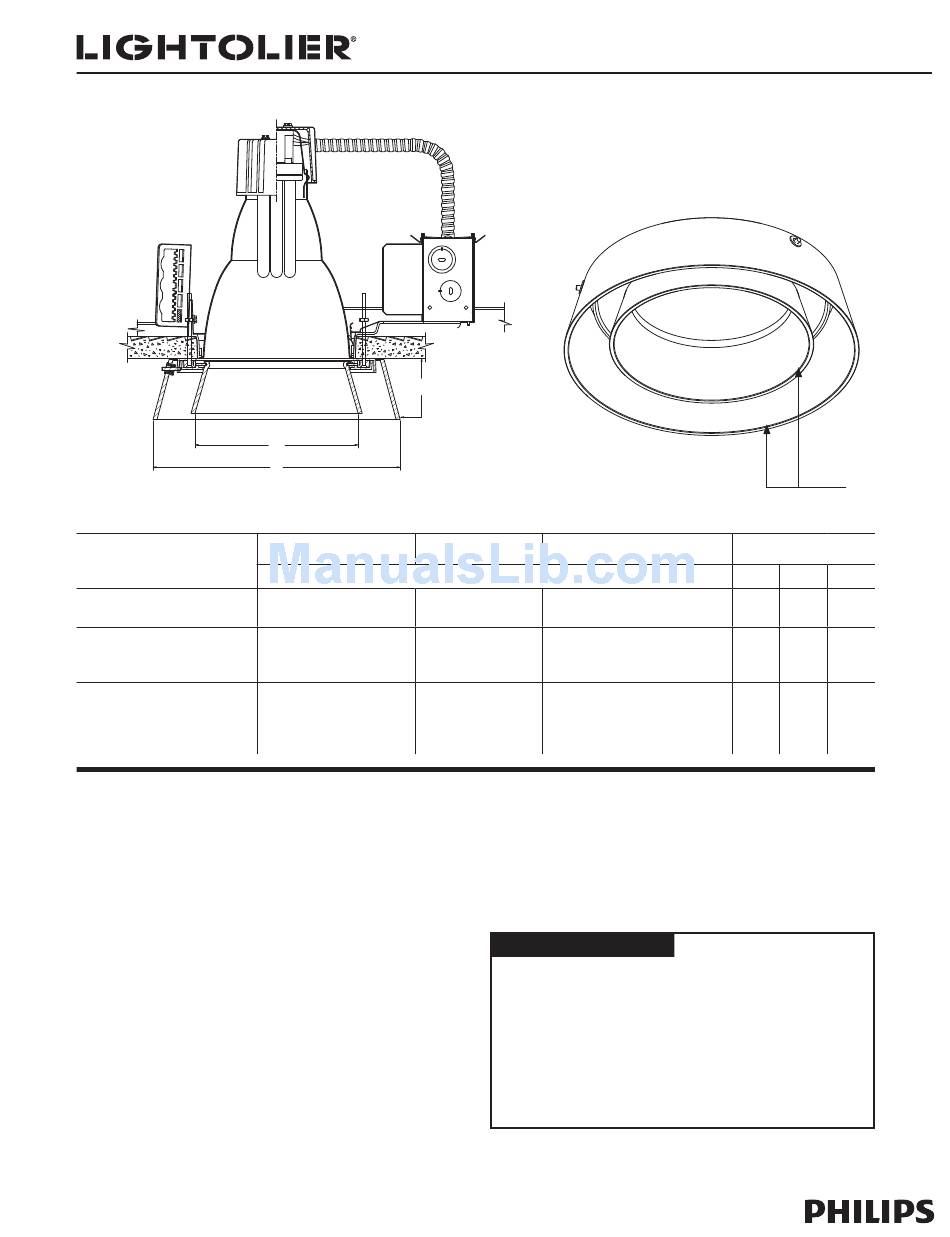

Lightolier D13 Specification

Page 1 of 1
Complete Fixture consists of Decorative Element, Trim-Kit + Frame-In Kit. Each sold seperately.
3 Piece Ordering System, Example: D4A13 + 8011CL + 4118VU
Decorative Element
Catalog No.
D4A13
D6A13
D7A13
Features
1. Decorative Element: Inner: angled hand blown triplex glass carefully
proportioned to each aperture size. Glass is gently and evenly illuminated for
clean brightness recognition. Outer: angled hand bown clear glass.
2. Die Cast Finish Ring: Aluminum Die Cast finish ring with crisp 90 degree
edges conceals all fasteners for a clean finished appearance.
3. Die Cast Construction Ring: Internal die cast construction ring is
mechanically attached to frame in kit and is concealed by finish ring.
4. Mounting Frame Fasteners: Four #8-32 screws and 4 knurled die-cast
thumb screws secure construction ring to frame in kit.
5. Reflector: FLANGELESS TRIM REQUIRED. Specified separately. Use
Specular Clear (CL) finish for best performance and aesthetics.
6. Frame-In Kit: Specified separately. See Trim Kit Specification Sheet for
additional details.
Lightolier is a Philips group brand
C
A
B
Trim- Kit Frame-In Kit
8011CL 4118VU Family
D4132VU Family
8021CL; 8031CL; 8091DCL S6132BU Family
8052CL 6213HU Family
8051CL 6218HU Family
8022CL; 8037CL; 8097DCL S7142BU Family
8056CL; 8096DCL 7218HU Family
8056CL; 8096DCL S7226HU Family
8056CL 7126HU Family
Architectural Decorative Vetro Downlight
Lamping
(1) 18W Triple Tube
(1) 26W, 32W or 42W Triple Tube
(1) 26W or 32W Triple Tube
(2) 13W Quad
(2) 18W Quad
(1) 26W, 32W or 42W Triple Tube
(2) 18W Quad Tube
(2) 26W Quad Tube
(1) 26W Quad Tube
Mechanical
Decorative element is mechanically secured to the die cast construction ring and
the integral reflector from the factory.
Labels
cULus (Damp Location)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • B0408
D13
Compact Fluorescent
1
Dimensions
A B C
5 1/8" 8 1/2" 2 1/4"
6 5/8" 10" 2 1/2"
8 1/8" 11 1/2" 2 1/2"
Type:
