Lightolier D02 Specification

Page 1 of 2
Complete Fixture consists of Decorative Element/Trim-Kit + Frame-In Kit. Each sold seperately.
2 Piece Ordering System, Example: D3MR02 + C3LV
Decorative Element/Trim Kit
Catalog No.
3" Evolution D3MR02
4" Evolution D4MR02
Features
1. Decorative Element: Solid high temp, UV resistant composite with open
aperture; frosted interior diameter, polished exterior and machined facet
along bottom edge.
2. Die Cast Construction Ring: Exterior edge of construction ring is visible,
satin aluminum finish matches diameter of decorative element for a
flangeless appearance.
3. Integral Reflector: 16 ga. aluminum, 50° visual cutoff to lamp and lamp
image. Decorative Element is mechanically attached to reflector via die cast
ring. Reflector is specular clear for best performance and aesthetics.
4. Cover Glass: 3" Evolution contains high temperature soft focus lens. 4"
Evolution contains high temperature perimeter frost.
5. Trim Kit: For 3" and 4" Evolution, trim kit, reflector and decorative element
ship complete.
6. Frame-In Kit: Specified separately. See Frame-In Kit Specification Sheet for
details.
Lightolier is a Philips group brand
C
A
B
Frame-In Kit
C3LV, C3AICLV, C3ALV, C3LVE1, C3LVE2, C3ALVE1, C3AICLVE1, C3ALVE2
C4LV; C4ALV; C4AICLV
Architectural Decorative Vetro Downlight
Mechanical
Decorative element is mechanically secured to the die cast construction ring
and the integral reflector from the factory.
Labels
cULus (Damp Location)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • A0408
Evolution, Low Voltage
2
1

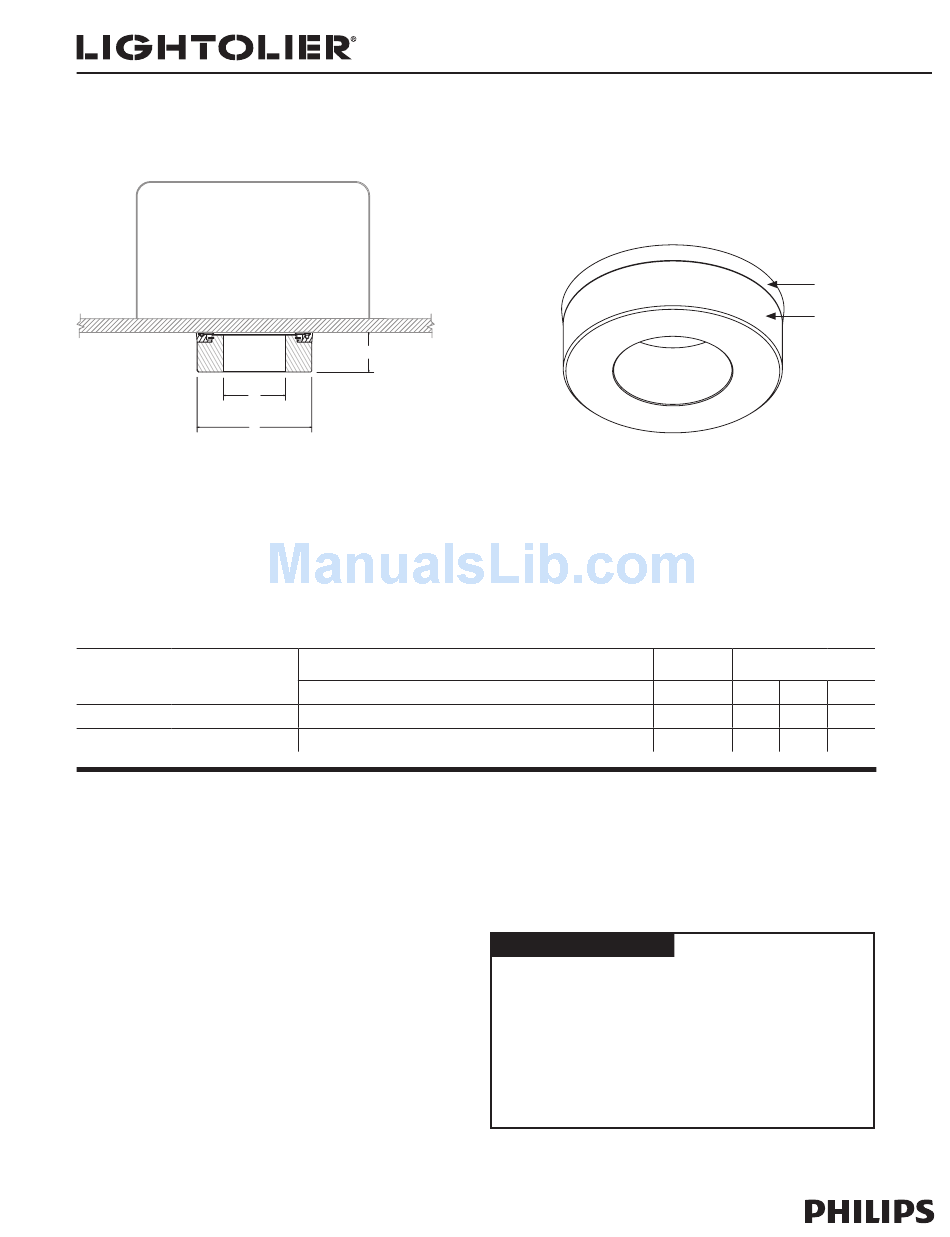

Lamping Dimensions
A B
50W MR16 2 1/4" 4 1/4" 1 1/2"
50W MR16 3" 5 5/8" 1 3/4"
Type:
D02
C
