Lightolier Lytecaster 1128 Specification

Page 1 of 2
1128/1102P1
Standard Incandescent
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets
Frame-In Kit
1101LED
1100LEDREM
L56LED
1128
Frame-In Kit
White
Diffuser
1102P1
1103R
1102P1
1103R
1100IC
1100AICM
1100DICM
1100DAICM
1104ICX/N
1104IC/N
1104ICR

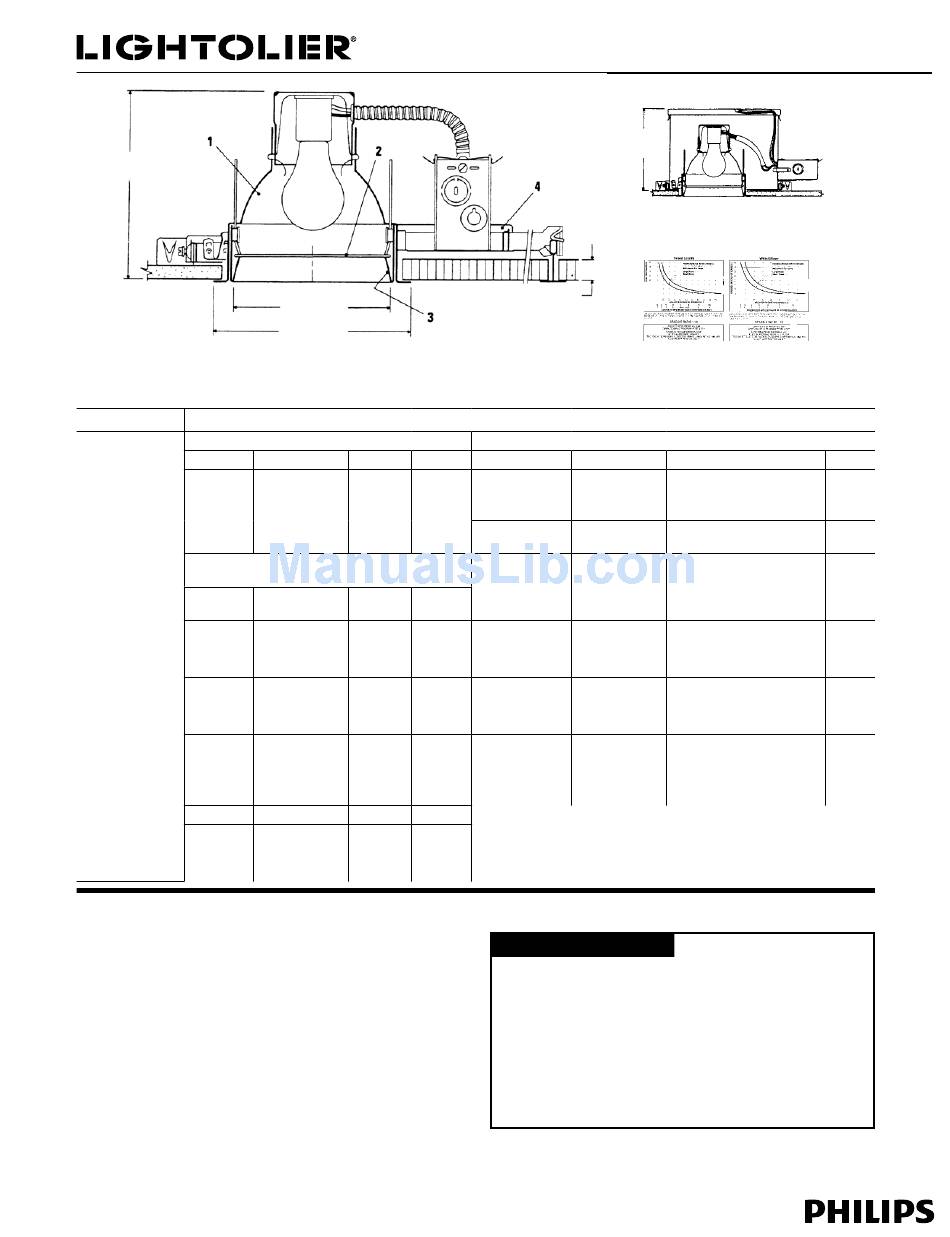

Features
1. Reflector: Hydroformed aluminum, .040 minimum thickness; Anobrite
(anodic-processed) semi-specular finish for permanent reflectivity; matte
white trim flange.
2. White Diffuser: Provides soft, widespread illumination with light bezel to
reduce brightness transition to ceiling.
3. Lens Bezel: Spun aluminum, .040" thick. Matte white finish.
4. Frame-In Kit: (1102P1 standard frame shown). Other frames listed above
and shown on the right. See Frame-In Kit specification sheets for more
details.
Options & Accessories
Retaining Clips: 1955 - For installing in existing ceiling.
Labels
U.L. (Suitable for Wet Locations - Covered Ceiling Only), I.B.E.W.
Lightolier is a Philips group brand
Lytecaster
6 1/2"
7 11/16"
LED
Installation Type Lamping Height
Non-IC LED 6 5/8"
6 5/8"
Non-IC Remodeler LED
6 5/8"
Non-IC Retrofit LED
Incandescent
Installation Type Lamping Height
Non-IC 100W A19 6 5/8"
Non-IC 6 5/8"
Remodeler
Non-IC 100W A19 6 5/8"
Non-IC 6 5/8"
Remodeler
IC 60W A19 7 5/16"
AirSeal IC 7 5/16"
®
Deep IC 9 1/4"
Deep AirSeal IC 9 1/4"
®
AirSeal IC 52W A19 7 1/4"
®
Non-IC 60W A19 7 1/2"
Non-IC 7 1/2"
Remodeler
®
Recessed Downlighting
®

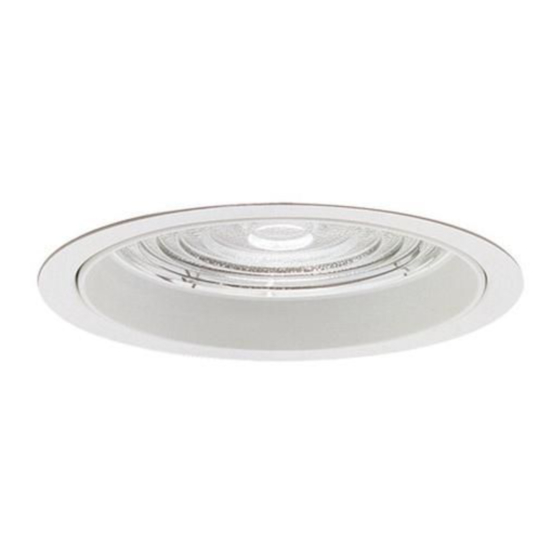

6 3/4" Aperture White Diffuser Reflector Trim
9 1/4"
1128/1100 DEEP IC Series
Incandescent Insulated Ceiling
6 5/8"
1 1/4" Max.
1128/1103R
0
Remodeler Ring
Fluorescent
Frame-In Kit Installation Type
1104F13 Series IC
1104F18 Series
† IC
1100FTU Series Non-IC
1100AICMFT AirSeal IC
®
1910XFH1 Conversion Kit
1910XDH1 Conversion Kit
Use Upper Slot for 18W Triple Tube Lamp.
†
Use upper slot for 26W Triple Tube Lamp.
‡
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • E0209
1128
™
Non-IC
Lamping Height
(1) Triple 13W (GX24q-1) 7 1/2"
(1) Triple 18W (GX24q-2) 7 1/2"
(1) Triple 26/32W (GX24q-3) 6 3/4"
(1) Triple 26W (GX24q-3) 6 3/4"
(1) Quad 13W (GX23-2) 6 3/4"
(2) Quad 13W (GX23-2) 6 3/4"
Type:
