Lightolier Lytecaster 1124 Specification

Page 1 of 2
6 3/4"
2 3/4"
8 1/8"
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets
1124
Doubled
Frame-In Kit
Etched
1101LED
1100LEDREM
L56LED
1102P1
1103R
1100IC
1100AICM
1100DICM
1100DAICM
1104ICX/N
1104IC/N
1104ICR
1104IC/N
1104ICR
1101LED
1100LEDREM
1156LED
Features
1. Reflector: Hydroformed aluminum, .040 minimum thickness; Anobrite
(anodic-processed) semi-specular finish for permanent reflectivity.
2. Diffuser: Textured double etched glass; twist tight to reflector trim.
Neoprene (captive on flange of reflector) seals unit under pressure of twist
lock. Concealed wire-hinge supports glass enclosure for quick servicing.
3. Frame-In Kit: (1102P1 standard frame shown). Other frames listed above
and shown on the right. See Frame-In Kit specification sheets for more
details.
Meets NEC requirements for Spas and Hot Tubs.
®
Options & Accessories
Retaining Clips: 1955 - For installing in existing ceiling.
Labels
UL (Suitable for Wet Locations - Covered Ceiling Only), I.B.E.W.
Lytecaster
9 1/4"
1 1/4" Max.

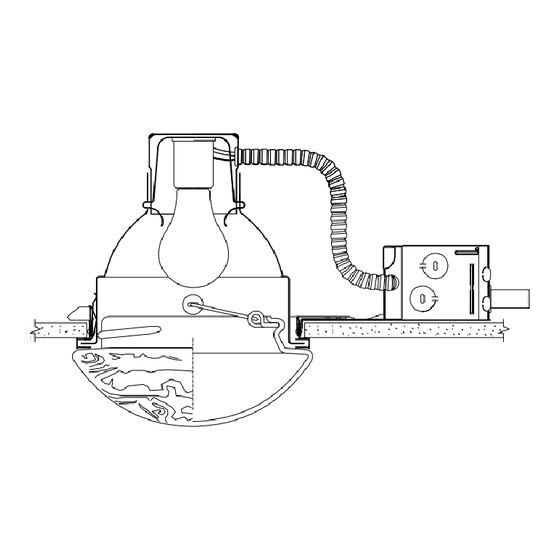

1124/1102P1
Standard Incandescent
LED
Ceiling Type Lamping Height
Non-IC LED 6 3/4"
Non-IC Remodeler LED 6 3/4"
Non-IC Retrofit LED 6 3/4"
Incandescent
Non-IC 100W A19 6 3/4"
Non-IC Remodeler
6 3/4"
IC 60W A19 7 5/16"
AirSeal IC
®
7 5/16"
Deep IC
9 1/4"
Deep AirSeal IC
®
9 1/4"
AirSeal ® IC
7 1/4"
AirSeal IC 40W A19 7 1/4"
®
IC Remodeler 7 1/2"
Non-IC 75W A19 7 1/2"
Non-IC Remodeler 7 1/2"
Non-IC LED 6 3/4"
Non-IC Remodeler LED 6 3/4"
Non-IC Retrofit LED 6 3/4"
®
Recessed Downlighting
®
6 3/4" Aperture Cratere Dome Diffuser Reflector Trim
1124/1100
DEEP IC Series
Incandescent
Insulated Ceiling
1124/1103R
0
6 3/4"
Non-IC
Remodeler Ring
Frame-In Kit Installation Type
1101F18U Series UniFrame
™
Non-IC
1101F2642U UniFrame
™
Series Non-IC
1104F13 Series IC
1104F18 Series IC
1104F26 Series
IC
1100FTU Series Non-IC
1100AICMFT AirSeal IC
®
1101F18ICU/N Performance IC
1101F2642ICU
Performance IC
1101F2642IUN
1101FDICMX1/N Performance IC
Advance Mark10
Dimming 120v
1101FDICMX2/N Performance IC
Advance Mark10
Dimming 277v
1910XFH1 Conversion Kit
1910XDH1 Conversion Kit
NEC ® is a registered trademark of the National Fire Protection Association.
