2) Status indicators

PWR (Power)
Off
On
Flashing-slow
Flashing-quick
AIR (Wireless Network)
Off
On
Flashing
WAN (Wide Area Network)
Off
On
Flashing
LAN 1-4 (Local Area Network)
Off
On
Flashing

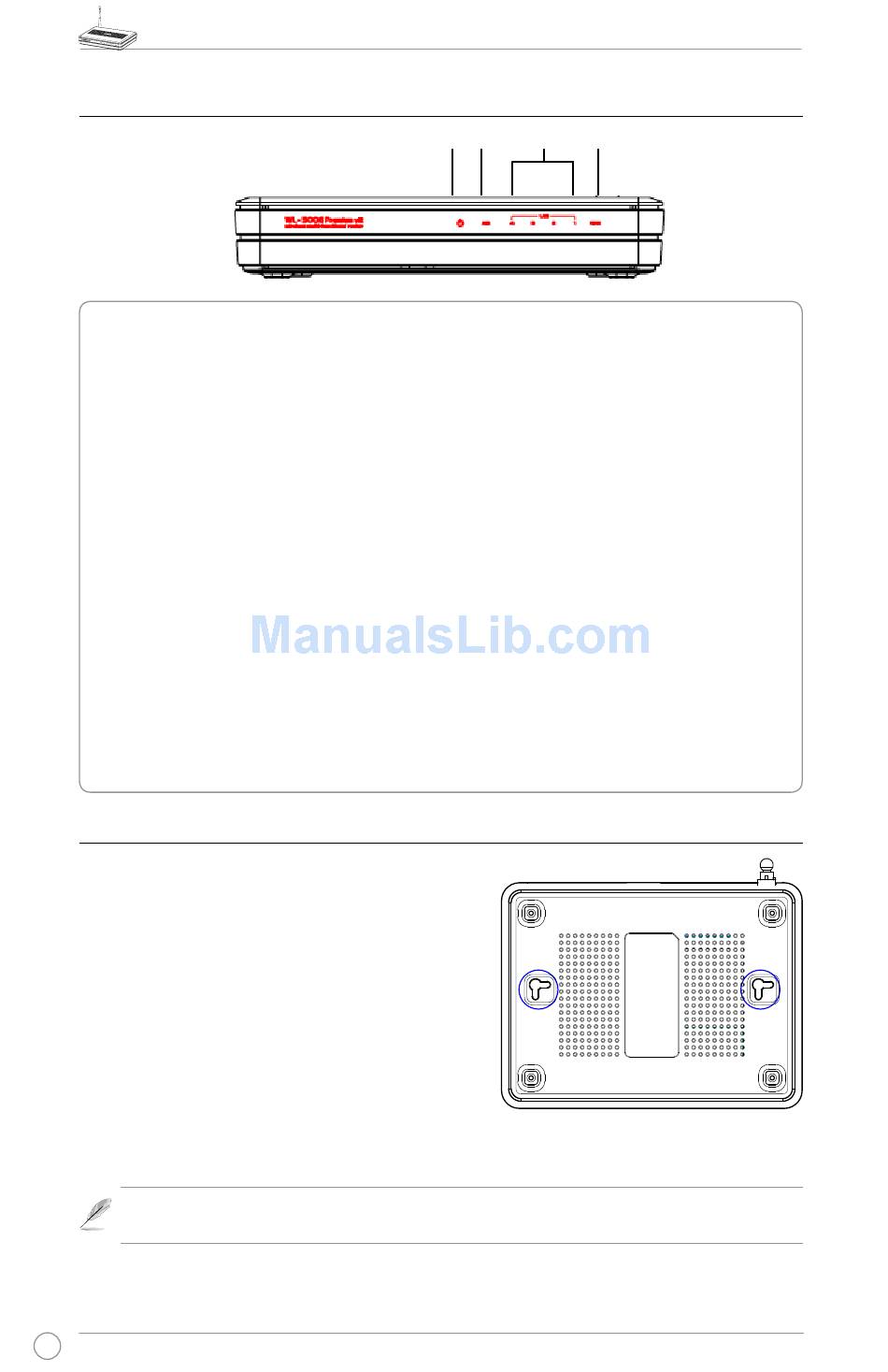

3) Wall mount option

Out of the box, ASUS WL-500gP V2 Wireless
Router is designed to sit on a raised flat surface like
a file cabinet or book shelf. The unit may also be
converted for mounting to a wall or ceiling.
Follow these steps to mount the ASUS Wireless
Router to a wall:
1. Look on the underside for the two mounting
hooks.
2. Mark two upper holes in a flat surface.
3. Tighten two screws until only 1/4'' is showing.
4. Latch the hooks of the ASUS Wireless Router onto the screws.
Note: Re-adjust the screws if you cannot latch the ASUS Wireless Router onto the
screws or if it is too loose.
4
PWR
No power
System ready
Firmware upgrade failed
EZsetup processing
No power
Wireless system ready
Transmitting or receiving data (wireless)
No power or no physical connection
Has physical connection to an Ethernet network
Transmitting or receiving data (through Ethernet cable)
No power or no physical connection
Has physical connection to an Ethernet network
Transmitting or receiving data (through Ethernet cable)
AIR
LAN
WAN
