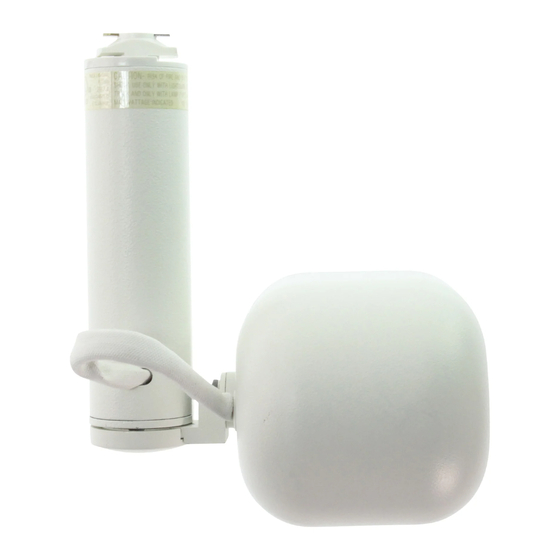

Lightolier Lytespan 6255 Specification

Page 1 of 2
Catalog No. Finishes
6255 WH
Matte White
6255 BK Matte Black
Features
1. Housing: .040" aluminum.
2. Socket: Bi-pin base ceramic socket wired with No. 18 stranded Teflon
leads with fiberglass outer sleeve.
3. Transformer: electronic low voltage transformer with integral radio
frequency interference filter and anti-crossover circuit for increased
reliability; housed in extruded aluminum.
4. Track Attachment Fitting: molded polycarbonate, rotates into track and
locks on with push tab; integral polarity key guard.
5. Push Tab: locks and detaches unit from track.
6. Brass Contact: extends up for connection to second circuit when used in
Advent ® Lytespan track.
7. Tension Pivot Mounts: Die-cast aluminum. Allows for 180° horizontal
rotation and 180° vertical rotation.
8. Lamp Guard: tempered glass; can be substituted with 2" UV filter or
color filter.
9. Spring: steel springs hold lamp in place.
10. Step Baffle: die-cast aluminum with stepped conical grooves for low
brightness. Matte black finish.
Options & Accessories
2" Color Filters and UV Filter AF2 Series
Louver No. 7472
(see specification sheet)
Framing Projector 6497 Matte black
Track Mounting
All Lytespan Track Systems
®
Lytespan
®
Lamps
MR16
35W or IR 37W Max
Electrical
Dimming Controls: Use only dimmers specifically designed for use with
electronic transformers, like Lightolier Sunrise
QE series. Low voltage fixtures may produce audible sound when used with
™
dimmers, which may be objectionable in acoustically critical areas.
Labels
UL
Advent Lytespan is a registered trademark of Lightolier.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • D1106
Track Lighting
LyteSpots GeoStar
®
and Neptune Momentum
™
Type:
www.lightolier.com
6255
MR16
™
