Lightolier Lytecaster 1131 Specification

Page 1 of 2
7 5/16"
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim
1131 Black Step Baffle
1131WH White Step Baffle
1131GD Specular Gold
1131CL
Specular Clear
1131BK Specular Black

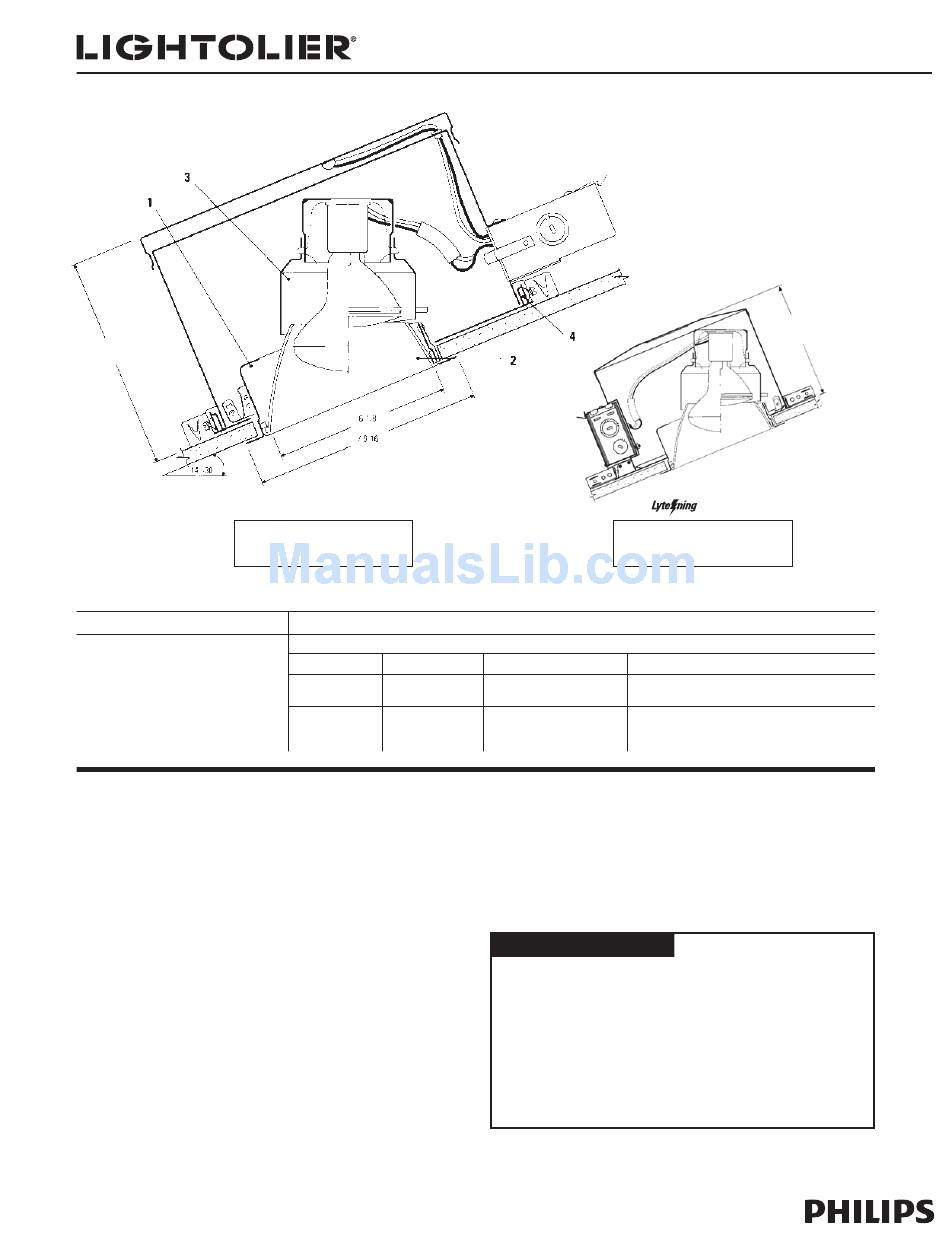

Features
1. Housing: Hydroformed aluminum, .040" thick; white trim flange.
2. Aperture: Conical aluminum step baffle, matte black or gloss white finish;
or hydroformed aluminum cone, specular finish. For ceiling slopes 14° - 30°
angle, 3/12 - 7/12 pitch.
3. Lamp Housing: Hydroformed aluminum, .040" thick; permits ± 7° vertical
adjustment for straight downlighting.
4. Frame-In Kit: See Frame-In Kit specification sheets for more details.
Options & Accessories
Extra Wide Flange Trim Ring:
Lightolier is a Philips group brand
Lytecaster
6 3/4" Aperture Shallow Slope Ceiling Reflector Trim 14°–30° Angle, 3/12–7/12" Pitch
1131/1100IC Series
Insulated Ceiling
1100IC Mounting Frame must be installed with
the J-Box on the "UPHILL" side.
Frame-In Kit — See Individual Frame-In Kit Specification Sheets
Frame-In Kit Installation Type
1100IC IC
1100AICM AirSeal
®
1104ICX/N AirSeal
®
1954 - 8 5/8" O.D.
Recessed Downlighting
®
Incandescent
Lamping
75W PAR30 (Short Neck)
IC 65W BR30
IC 75W PAR30 (Short Neck)
85W BR30
Labels
UL (Suitable for Damp Locations), I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • D0711
7 1/4"
1131/1104ICX/N
™ AirSeal Insulated Ceiling
®
1104ICX/N Mounting Frame must be installed
with the J-Box on the "DOWNHILL" side.
Height
7 5/16"
7 5/16"
7 1/4"
Type:
1131
