Ovation

User manual

Made in Germany
clearaudio electronic
Hi-Fi Components
GmbH
Spardorfer Str. 150  D-91054 Erlangen  Tel. +49(0) 1805/059595  FAX +49(0) 09131/51683
www.clearaudio.de 
www.analogshop.de
 info@clearaudio.de /clearaudio copyright  2013
Version-1.3_18-03-13_E

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ovation and is the answer not in the manual?

Questions and answers

Summary of Contents for Clearaudio Ovation

  • Page 1: User Manual

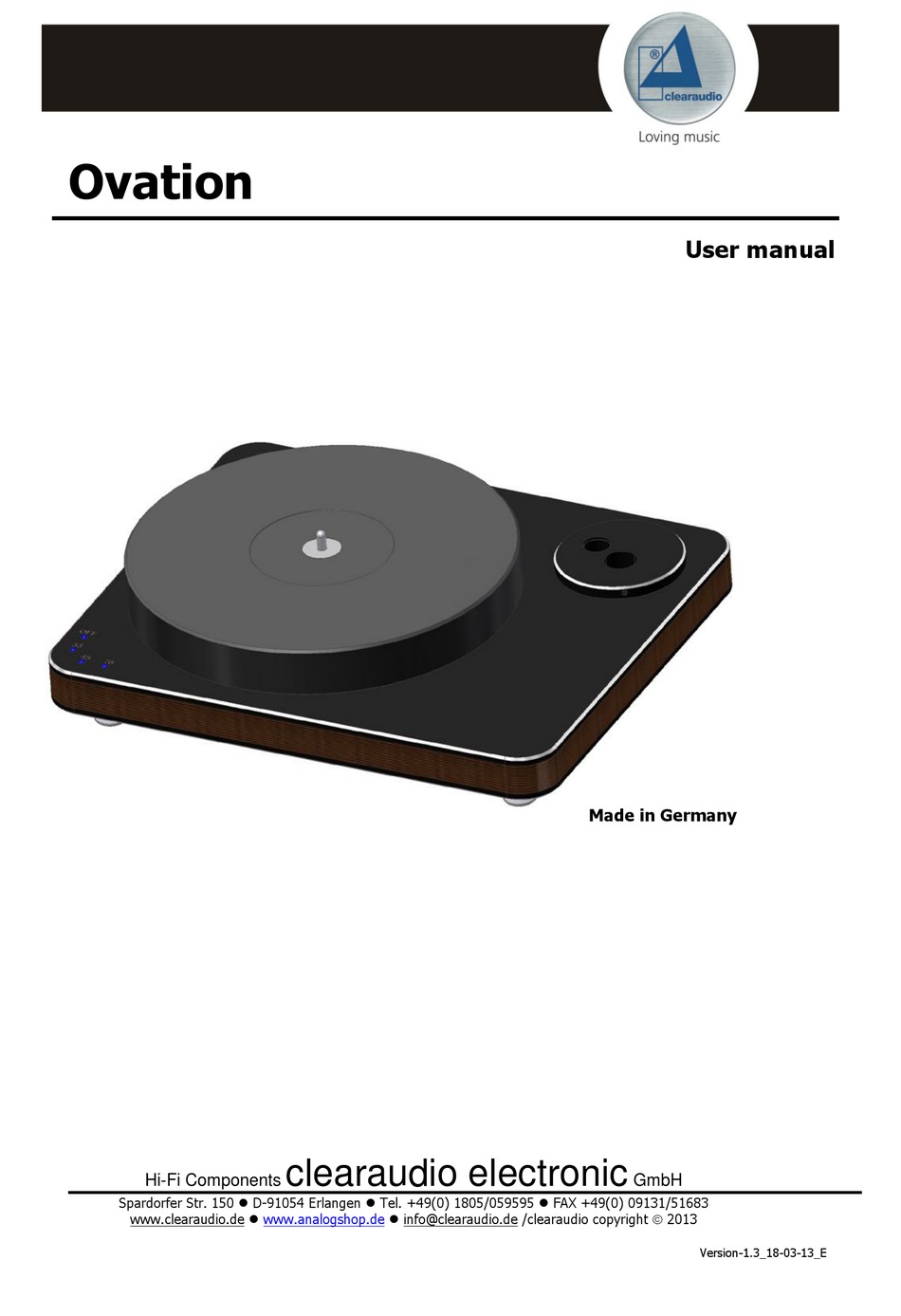

    Ovation User manual Made in Germany clearaudio electronic Hi-Fi Components GmbH Spardorfer Str. 150  D-91054 Erlangen  Tel. +49(0) 1805/059595  FAX +49(0) 09131/51683 www.clearaudio.de  www.analogshop.de  info@clearaudio.de /clearaudio copyright  2013 Version-1.3_18-03-13_E...
  • Page 2 Ovation With the turntable, clearaudio made use of the OSC (Optical-Speed-Control) technology found in the Innovation turntables series by implanting it into a precision milled Panzerholz (bullet proof wood) chassis. This chassis is combined with an anti – resonance mat that is capable of absorbing a huge amount of energy.
  • Page 3: Table Of Contents

    Ovation User manual User manual 1 – 14 Contents 1. Packaging overview 2. Set-up and operation 3. Service 4. Special directions 5. Technical data Warranty information Page 3  clearaudio electronic GmbH 2013...
  • Page 4: Packaging Overview

    1. Layer (top): op of bearing, belt, fittings and accessories (Quality and warranty card, bearing oil) If ordered as set: tonearm and/or pickup 2. Layer (middle): Turntable - chassis 3. Layer (bottom): Platter, aluminium sub-platter Page 4  clearaudio electronic GmbH 2013...
  • Page 5: Set-Up And Operation

    Please follow the instructions step by step: Ovation requires a space of at least 16.54 inch x 13.78 inch for positioning. 13,78 inch / 350 mm 16,54 inch / 420 mm Pic. 1: Setting up space Page 5  clearaudio electronic GmbH 2013...
  • Page 6 Please remove the protective seal from the bearing shaft and place two drops of the synthetic bearing oil on the ceramic bearing shaft. Slip the bearing top onto the bearing shaft of the turntable. Pic. 3: Bearing oil Page 6  clearaudio electronic GmbH 2013...
  • Page 7 This is normal, as the CMB requires the weight of the platter to fully engage it. Pic. 5: Setting the sub-platter Pic. 5.1: Moving the belt Page 7  clearaudio electronic GmbH 2013...
  • Page 8 Now you can set the platter carefully onto the bearing. To avoid damage, make sure you slide the platter slowly and cautiously on the sub-platter/ bearing assembly. Hold the platter securely, so the platter does not slip or fall on your turntable. Pic. 7: Setting the platter onto the bearing Page 8  clearaudio electronic GmbH 2013...
  • Page 9 For tonearm and cartridge mounting please refer to the user manual of the respective manufacturer. Ovation Now you can connect the turntable with the main supply. Pic. 9: Connection to the main supply Page 9  clearaudio electronic GmbH 2013...
  • Page 10 Please check the speed before using the turntable for the first time. For the correct adjustment of the speed, please put the recommended clearaudio Stroboscope Testrecord on the platter. Follow the instructions of the Stroboscope Testrecord user manual. To...
  • Page 11: Service

    We wish you a lot of pleasure with your new - turntable. 3. Service If any service or repair on all clearaudio products is necessary, please contact your dealer / distributor or contact clearaudio directly. We can inform you about your nearest service location. Transportation advice:...
  • Page 12: Special Directions

    A damaged power cord must be exchanged immediately! To achieve the full clearaudio warranty, it is necessary that you fill out and send your warranty sheet to Musical Surroundings within 90 days after purchase. Only if the product is returned in it’s original packing can warranty service be provided.
  • Page 13: Technical Data

    Warranty*: 2 years (5* years) * Only if the warranty card is filled out correctly and sent back in time to clearaudio. Clearaudio electronic is not responsible for typographical errors in descriptions. Technical specifications subject to change or improvement without prior notice. Availability as long as stock lasts.
  • Page 14: Warranty Information

    RETAIN YOUR PURCHASE RECEIPT Your purchase receipt is your permanent record of a valuable purchase. It should be kept in a safe place to be referred to as necessary for insurance purposes or when corresponding with clearaudio. IMPORTANT When seeking warranty service, it is the responsibility of the consumer to establish proof and date of purchase. Your purchase receipt or invoice is adequate for such proof.
