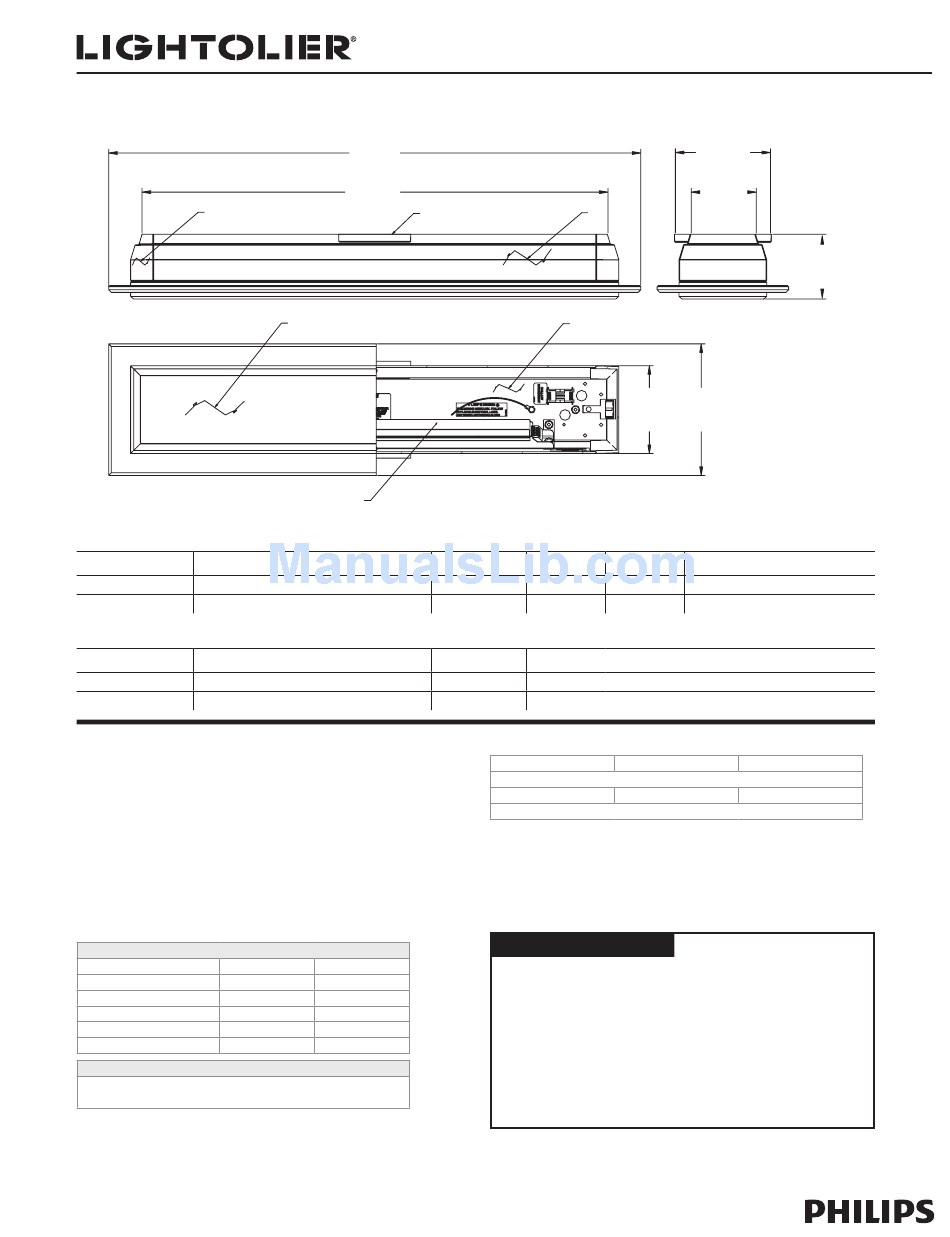

Lightolier Brisa FP14U Specification

Page 1 of 2
Fixture Ordering Information
Catalog No.
FP14U
FP14UEM
Diffuser Ordering Information
Catalog No.
FPA1
FPG1
Features
1. Housing Ends: Die-cast aluminum.
2. Housing Sides: Extruded aluminum.
3. Back Pan: Stamped 18ga. (0.048") sheet metal.
4. Diffuser: Planar clear glass with opal diffuse glass or planar clear acrylic
with opal diffuse acrylic.
5. Junction Box Cover: (2) Die-cast aluminum, easy installation
(provided with luminaire).
6. Fixture Mounting Plate: Mounts directly to a 4" octagonal J-Box
(Not Shown in Drawing).
Electrical
7. Ballast
A. Electronic 120-277V
Voltage
Total Input Watts
Max. Line Current (Amps)
Power Factor\
THD
Min. Starting Temp
B. Emergency
Bodine LP550 emergency battery pack with integral test light
and switch.
8. Luminaire-Ballast Disconnect: Meets NEC 410.130(G)
and CEC Disconnect Requirements.
Lightolier is a Philips group brand
24 7/8"
[632mm]
21 3/4"
[533mm]
1
4
7
Description
Linear Planar Surface Mount
Linear Planar Surface Mount w/Emergency
Description
Acrylic Planar Diffuser
Glass Planar Diffuser
120V 277V
19W 19W
0.16A 0.07A
0.98 0.90
20% 20%
0°F, -18°C 0°F, -18°C
Brisa Linear Planar Surface Mount
™
Wall/Ceiling Mounted T5 Fluorescent ADA Compliant
5
Finish Wattage Volts
Satin aluminum 14W
Satin aluminum 14W
Finish Dimensions (Nominal)
Opal 5" X 24"
Opal 5" X 24"
Lamping (by others)
General Electric
F14W/T5/*/ECO
*Manufactures Color Temperature Designation
Finish
Satin Aluminum
Labels
cULus Listed. Suitable for Damp Locations.
ULus Listed, Dry Locations only for Emergency Units.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • B0209
4 9/16"
[115mm]
3"
[76mm]
2
3
4 1/8" 6 1/8"
[104mm] [156mm]
Lamp
120-277V (1) T5
120-277V (1) T5
Osram/Sylvania
(1) 14W T5 Linear Fluorescent
FP14/*
Type:
FP14U
3"
[76mm]
Philips
F14T5/*/ALTO
