Lightolier Brisa FB9314UDA Specification

Page 1 of 1
3 1
Fixture Ordering Information
Catalog No. Description
FB9314UDA Linear Bow Surface Mount Dali Dimming
Diffuser Ordering Information
Catalog No. Description
FBA9 Acrylic Bow Diffuser
FBG9 Glass Bow Diffuser
Features
1. Housing Sides and ends: Die-cast aluminum.
2. Back Pan: Stamped 18ga. (0.048") sheet metal.
3. Diffuser: Bowed opal glass or opal acrylic
4. Optics: Internal white acrylic diffuser covers slots on housing sides
and ends.
Mounting
Fixture Mounts directly to 4" octagonal junction box.
Electrical
5. Ballast-Fixture: Has (1) 1-lamp ballast and (1) 2-lamp ballast, allowing for
separate switching.
A. Dali Dimming 120V-277V
Voltage
Total Input Watts
Max. Line Current (Amps) 0.15A 0.07A
Power Factor >0.98 >0.98
THD <10% <10%
Min. Starting Temp 50°F, -10°C
Dimming Range
6. Luminaire-Ballast Disconnect: Meets NEC 410.130(G)
and CEC Disconnect Requirements.
Lampholders
Fluorescent: Mini Bi-Pin, G5 Base

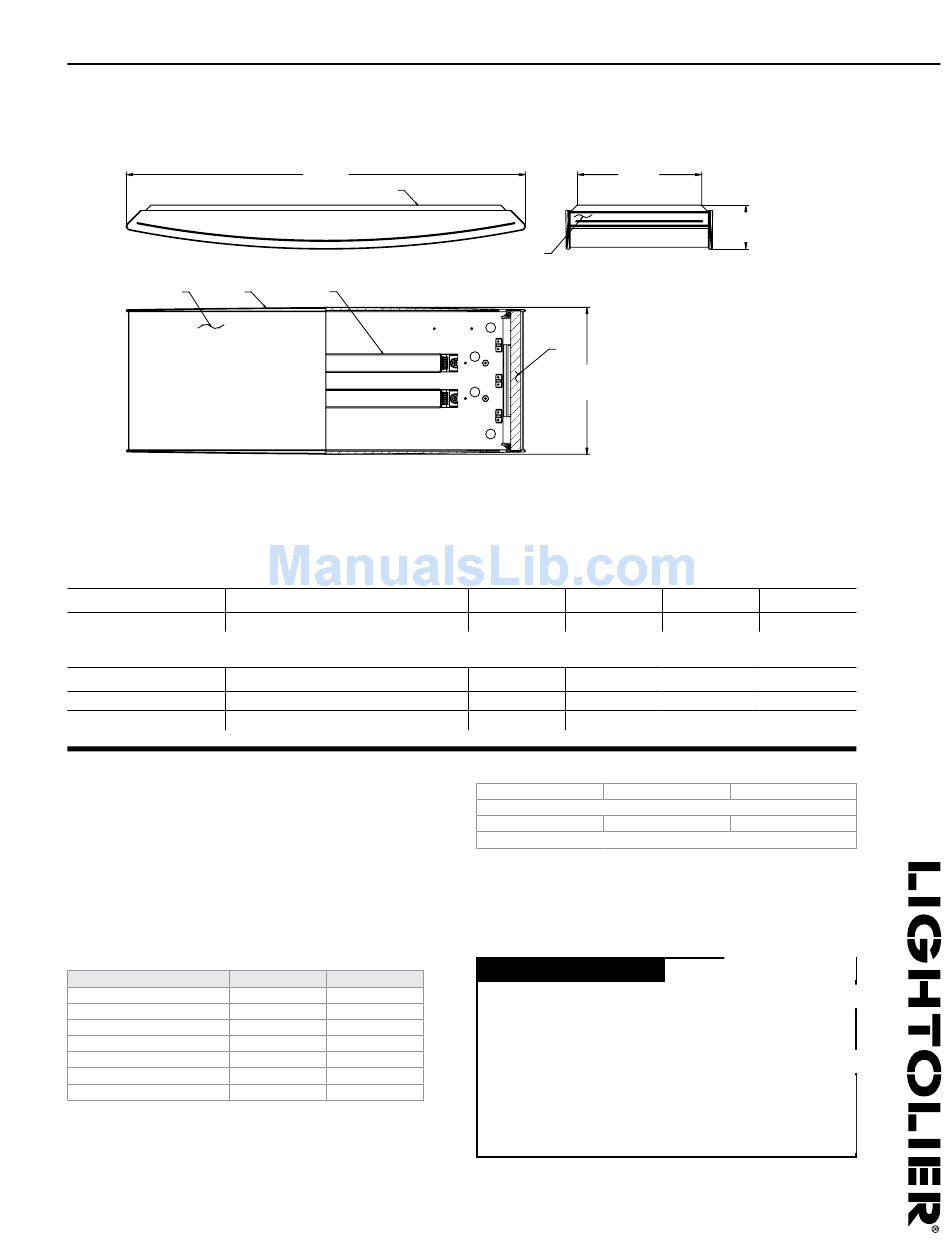

Brisa Linear Bow Surface Mount
™
25 5/16"
[643mm]
2
5
1 Lamp 2 Lamp
120V 277V 120V 277V
18W 18W 35W 35W
0.28A 0.13A
>0.98 >0.98
<10% <10%
50°F, -10°C
100%-1% 100%-1%
Wall/Ceiling Mounted T5 Fluorescent ADA Compliant
7 15/16"
[202mm]
1
4
9 5/16"
[237mm]
Finish Wattage
Satin aluminum 14W
Finish
Dimensions (Nominal)
Opal 9" X 24"
Opal 9" X 24"
Lamping (by others)
General Electric Osram/Sylvania
(1) 14W T5 Linear Fluorescent
F14W/T5/*/ECO FP14/*
*Manufactures Color Temperature Designation
Finish
Satin Aluminum
Labels
cULus Listed. Suitable for Damp Locations.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • 0907
FB9314UDA
2 13/16"
[71mm]
Volts Lamp
120-277V (3) T5
Philips
F14T5/*/ALTO
Type:
www.lightolier.com
