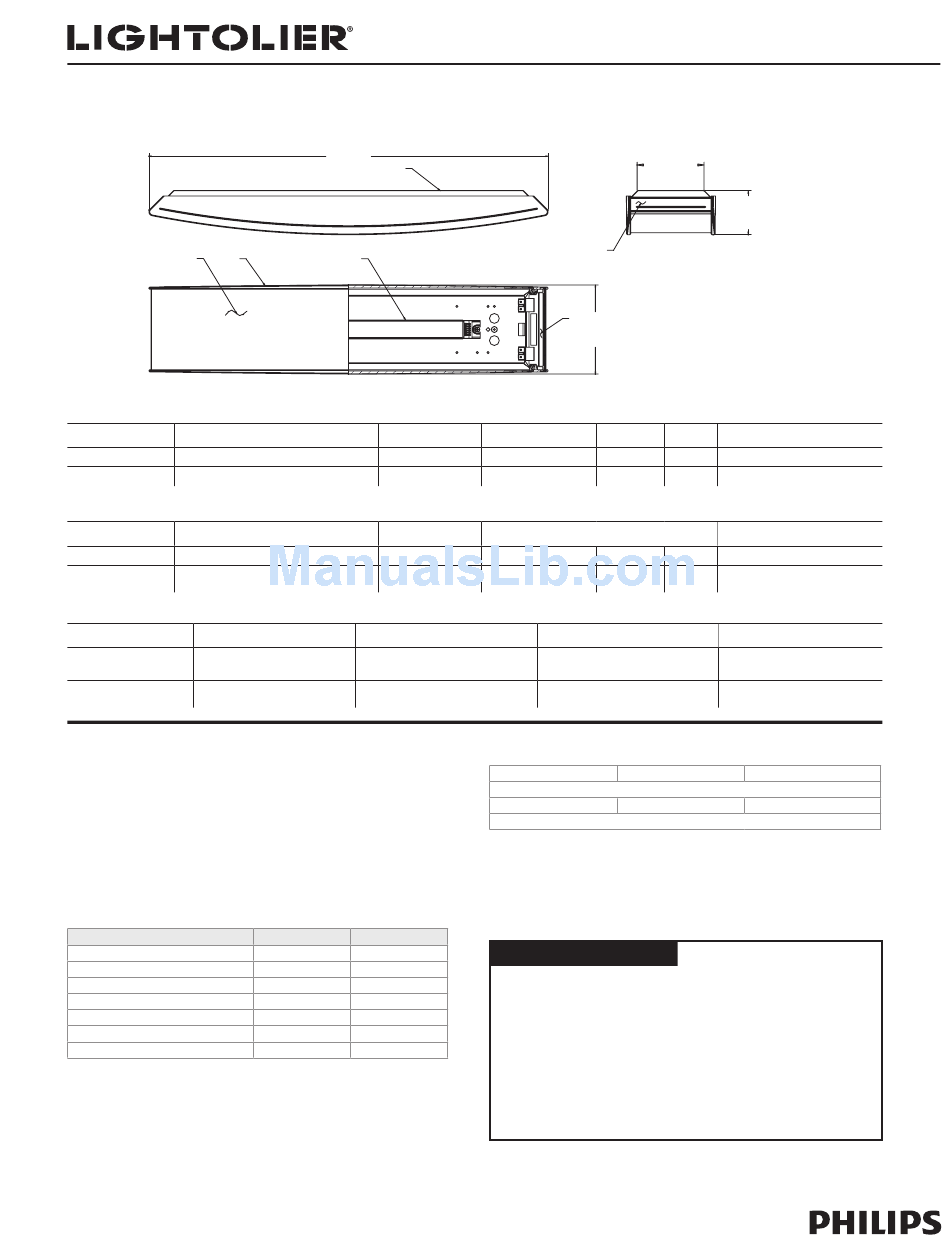

Lightolier Brisa FB5114LEC Specification

Page 1 of 2
Fixture Ordering Information
Catalog No. Description
FB5114LEC1 Linear Bow Surface Mount Dimming
FB5114LEC2 Linear Bow Surface Mount Dimming
Multi Lamp
Catalog No. Description
FB5214LEC1 Linear Bow Surface Mount Dimming
FB5214LEC2 Linear Bow Surface Mount Dimming
Diffuser Ordering Information
Catalog No.
FBA5
FBG5
Features
1. Housing Sides and ends: Die-cast aluminum.
2. Back Pan: Stamped 18ga. (0.048") sheet metal.
3. Diffuser: Bowed opal glass or opal acrylic
4. Optics: Internal white acrylic diffuser covers slots on housing sides
and ends.
Mounting
Fixture Mounts directly to 4" octagonal junction box.
Electrical
5. Ballast
A. Lutron Dimming 120V & 277V
Voltage
Total Input Watts
Max. Line Current (Amps)
Power Factor
THD
Min. Starting Temp
Dimming Range
6. Luminaire-Ballast Disconnect: Meets NEC 410.130(G)
and CEC Disconnect Requirements.
Lampholders
Fluorescent: Mini Bi-Pin, G5 Base
Lightolier is a Philips group brand
25 5/16"
[643mm]
3 1 5
Description Finish
Acrylic Bow Diffuser Opal
Glass Bow Diffuser Opal
1 Lamp
120V 277V 120V 277V
20W 10W 38W 17W
0.17A 0.08A 0.32A 0.14A
>0.95 >0.95 >0.95 >0.95
<20% <20% <20% <20%
50°F, -10°C
100%-10%
Brisa Linear Bow Surface Mount
™
Wall/Ceiling Mount T5 Fluorescent ADA Compliant
2
Finish Wattage
Satin aluminum 14W
Satin aluminum 14W
Finish Dimensions (Nominal)
Satin aluminum 14W
Satin aluminum 14W
Dimensions (Nominal)
5" X 24""
5" X 24"
Lamping (by others)
General Electric
F14W/T5/*/ECO
Finish
Satin Aluminum
Labels
cULus Listed. Suitable for Dry Locations.
2 Lamp
Job Information
Job Name:
Cat. No.:
50°F, -10°C
Lamp(s):
100%-10%
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • A0309
FB5114LEC
4 1/4"
[108mm]
2 13/16"
[71mm]
1
4
5 5/8"
[144mm]
Volts Lamp Ballast (Eco-10)
120V (1) T5 E3T514C1201
277V (1) T5 E3T521C2771
Ballast (Eco-10)
120V (2) T5 E3T514C1201
277V (2) T5 E3T521C2771
Ballast (Eco-10)
E3T514C1201
E3T521C2771
Osram/Sylvania
(1) 14W T5 Linear Fluorescent
FP14/*
*Manufactures Color Temperature Designation
Type:
Philips
F14T5/*/ALTO
