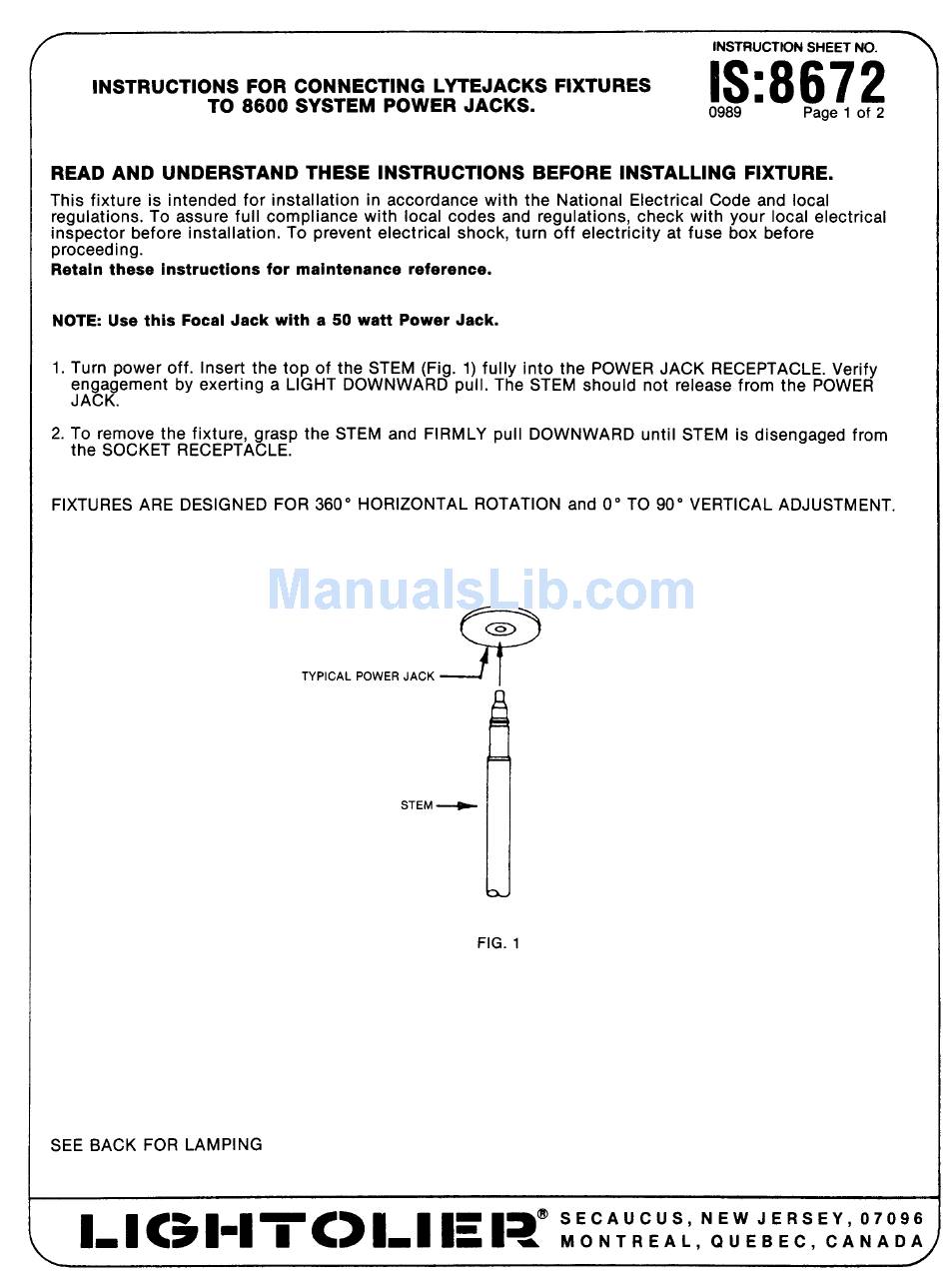

INSTRUCTION SHEET NO.
INSTRUCTIONS FOR CONNECTING LYTEJACKS FIXTURES
TO 8600 SYSTEM POWER JACKS.
IS:8672
0989
Pagel
of2
READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE.
This fixture
is intended
for installation
in accordance
with the National
Electrical
Code and local
regulations.
To assure
full compliance
with
local codes
and regulations,
check
with your local electrical
inspector
before
installation.
To prevent
electrical
shock,
turn off electricity
at fuse box before
proceeding.
Retain these
instructions
for maintenance
reference.
NOTE: Use this Focal Jack with a 50 watt Power Jack.
1. Turn power
off. Insert
the top of the STEM (Fig. 1) fully
into the POWER JACK
RECEPTACLE.
Verify
engagement
by exerting
a LIGHT
DOWNWARD
pull. The STEM should
not release
from the POWER
JACK.
2. To remove
the fixture,
grasp the STEM and FIRMLY
pull DOWNWARD
until
STEM is disengaged
from
the SOCKET
RECEPTACLE.
FIXTURES
ARE DESIGNED
FOR 360° HORIZONTAL
ROTATION
and 0° TO 90° VERTICAL
ADJUSTMENT.
P
Q
TYPICAL
POWER JACK
FIG. 1
SEE BACK
FOR LAMPING
.
