Lightolier 6.5 PENDALYTE Instructions For Maintenance Reference

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING LUMINAIRE
This luminaire is intended for installation in accordance with the National Electrical Code and local regulations.
To assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electric shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.
Note: This instruction sheet covers several luminaire styles. Powerhead assembly, lamp type,
and reflector style may vary slightly from that shown, although installation is the same.

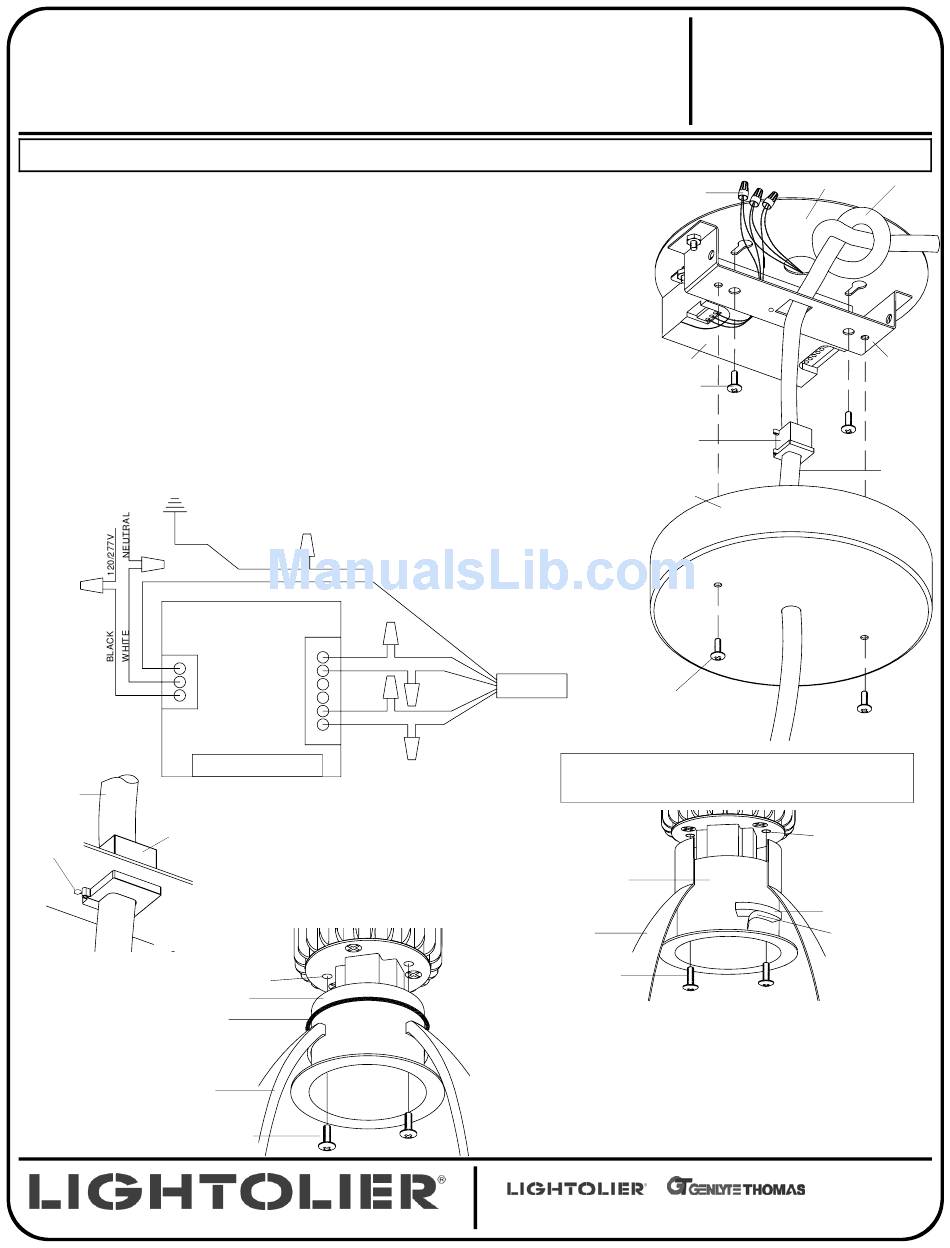

1. Remove CANOPY. Pull supply wires through hole in center of OUTLET BOX PLATE (Fig. 1) and
attach OUTLET BOX PLATE to outlet box using OUTLET BOX SCREWS (provided with outlet
box).
2. Pass CORD through hole in center of CANOPY.
3. Determine desired CORD length and attach RELIEF BUSHING to CORD with pliers. NOTE: Be
certain of CORD length before attaching RELIEF BUSHING as it is difficult to remove and
reposition.
4. Align HINGE on RELIEF BUSHING with HINGE MARK on CANOPY BRACKET (Fig. 2) and snap
into square hole in CANOPY BRACKET.
5. Tie KNOT in CORD above the CANOPY BRACKET.
6. To wire compact fluorescent unit see wire diagram below. Use wire nuts provided.
7. Using WIRE NUTS (local hardware item) make electrical connections: black BALLAST lead to hot
(black) supply lead; white BALLAST lead to neutral (white) supply lead. Green BALLAST lead is
ground wire and must be connected to grounding terminal or ground lead inside outlet box.
8. To wire incandescent unit: Using WIRE NUTS (local hardware item) connect black CORD wire to
hot (black) supply lead, connect white CORD wire to neutral (white) supply lead, green CORD wire
is ground wire and must be connected to grounding terminal or ground lead inside outlet box.
9. Attach CANOPY to CANOPY BRACKET with black CANOPY SCREWS.
GREEN
CORD
RELIEF
HINGE
BUSHING
MARK
CANOPY
BRACKET
Fig. 2
THREADED INSERTS
RETAINER CUP
O-RING
SHADE
8-32 SCREWS
INSTRUCTION SHEET FOR 6.5" PENDALYTE™
GREEN GREEN (OUTLET BOX PLATE GROUND)
GREEN
RE D
RED
BALLAST
BLUE
BLUE

WIRE DIAGRAM

GLASS SHADE INSTALLATION (fig.3)
1. Insert RETAINER CUP through top
of glass SHADE.
2. Place O-RING over RETAINER
CUP.
3. Align RETAINER CUP with
THREADED INSERTS in socket
plate.
Fig. 3
RED/WHITE
RED
CORD
BLUE
BLUE/WHITE
CAUTION:
ON LUMINAIRE MUST NOT BE EXCEEDED.
RETAINER CUP
REFLECTOR
8-32 SCREWS
ALUMINUM REFLECTOR INSTALLATION (Fig. 4)
1. Peel ADHESIVE BACKING off of 3 GASKET STRIPS. Apply
GASKET STRIPS, equally spaced, to lip of RETAINER CUP.
2. Insert RETAINER CUP through top of REFLECTOR and align with
THREADED INSERTS in socket plate.
3. Secure with 8-32 screws.
