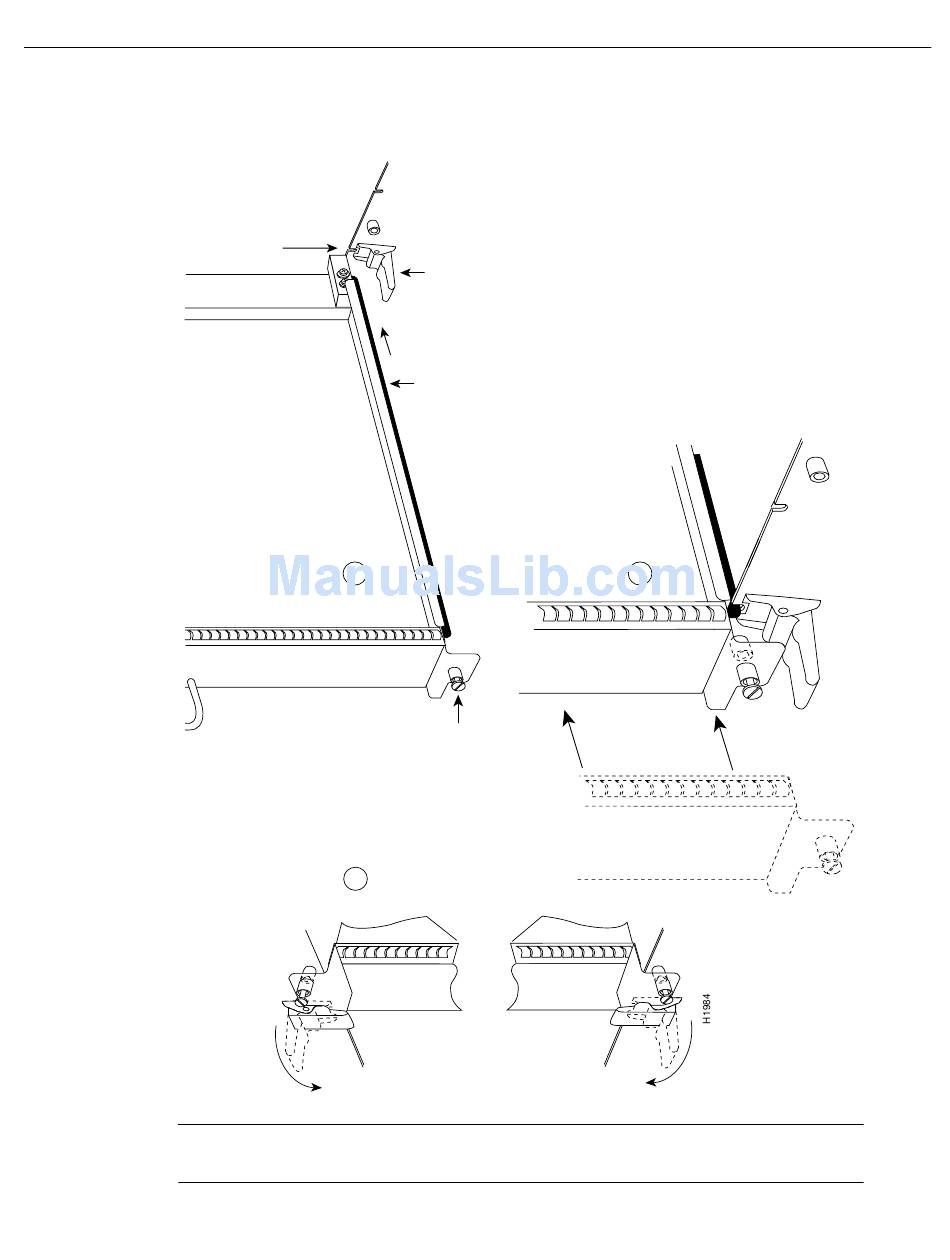

Figure 1
Ejector Levers/Captive Installation Screws on the FEIP (Horizontal
Orientation Shown)
Interface processor
card slot
a
c
Note
The FEIP is oriented horizontally in the Cisco 7010 and Cisco 7505 and vertically in the
Cisco 7000, Cisco 7507, and Cisco 7513.
Guidelines for Interface Processor Installation and Removal
Ejector
lever
Interface processor card
carrier guide (black)
Captive
installation
screw
Fast Ethernet Interface Processor (FEIP) Installation and Configuration
b
7
