Lightolier Calculite P7006 Specification

Incandescent open wall washer

Advertisement

Quick Links

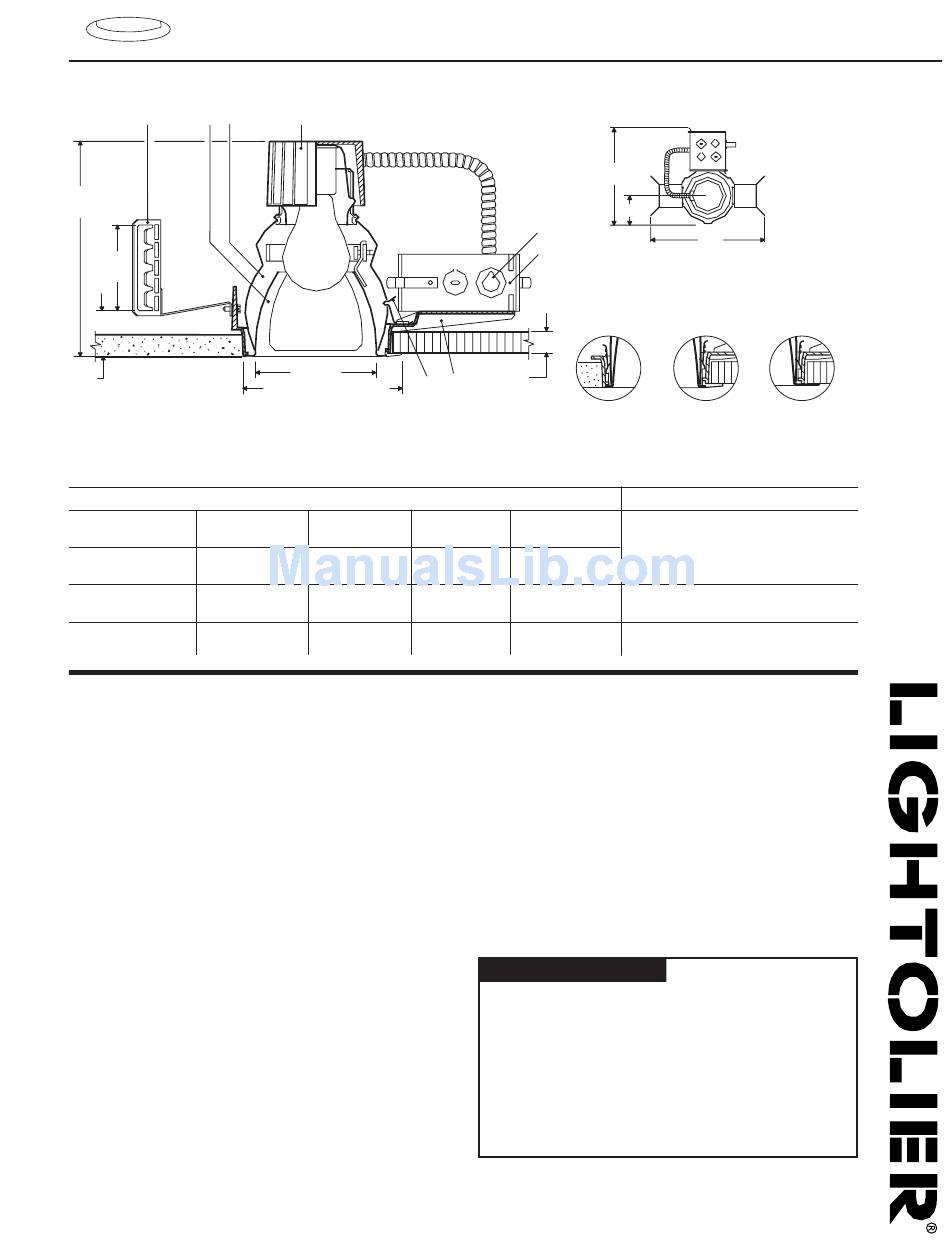

Page 1 of 2
2
4
8
7 7/16"
3"
1" min.-
2 1/8 " max.
(Ceiling Runner)
Ceiling Cutout: 5 1/6" Dia.
Reflector Trims
Finish
Wall Washer
Specular Clear
Specular Gold
Corner Wall Washer
Specular Clear
Specular Gold
Double Wall Washer
Specular Clear
Specular Gold
Features
1. Socket Cup: Die-cast aluminum cup effectively dissipates heat and assures
lamps maintain proper optical alignment to reflector. Snaps onto reflector
neck for easy tool-less installation. Contains medium base porcelain socket
with nickel plated screw shell wired with No. 18 SF1 leads to J-Box.
2. Mounting Bracket: Adjusts vertically from inside of fixture. Durable 16 ga.
steel construction. Use with standard 3/4" or 1 1/2" lathing channels, or
1/2" (11/16" O.D.) EMT pipe (by others), or Lightolier accessory mounting
bars.
3. Retaining Springs: Precision tooled springs secure reflector to mounting
frame for quick tool-less installation.
4. Insert reflector: Alzak
®
aluminum, 16 ga., "cut-window" reflector allows
light to pass to a separately contoured outer housing reflector. 50° visual
cut-off to lamp and lamp image. Insert reflector contours provide even down-
lighting. Direction of wall wash can be re-orientated after installation.
Attached with thumb screws for simple installation and maintenance.
Reflector supplied with white molded trim ring (field paintable); or self-
flanged reflector, matte white or flange finish to match reflector.
5. Junction Box: 14 ga. steel, 4" x 4" x 2" specially designed horizontal junc-
tion box allows inspection from below.
6. Thermal Protector: Meets NEC and UL requirements.Insulation must be
kept 3" away from fixture sides and wiring compartments and must not be
placed above fixture in a manner which will entrap heat.
7. Mounting Frame: Die-cast aluminum suitable for dry or plaster ceilings.
Provides flangeless trim in plaster ceiling.
Options & Accessories
18" Mounting Bars
1950 (set of 2)
27" Mounting Bars
1951 (set of 2)
T-Bar Anchor Clips
1956 (set of 4, for 1950 & 1951 bars)
Calculite
®
Incandescent Open Wall Washer
1
4 5/16" Dia.
3
Flush
Overlap
5"
5-3/4"
White
Polished
Self-Flange
Self-Flange
P7006CLW
P7006CLP
Q7006GDW
Q7006GDP
P7007CLW
P7007CLP
Q7007GDW
Q7007GDP
P7008CLW
P7008CLP
Q7008GDW
Q7008GDP
11"
3-1/4"
6
5
3/4" max.
7
Ceiling Thickness
Flush Trim
(Molded Trim Ring Removed)
Flush/White
Molded Trim Ring
P7006CL
Q7006GD
P7007CL
Q7007GD
P7008CL
Q7008GD
Options & Accessories (continued)
Wood Joist Mtg. Bars
7994 (set of 2)
Existing Ceiling Clips
7998 (set of 2)
Step Down Transformer
7997 see separate specification sheet
Chicago Air Plenum
LC (add suffix to Frame-in Kit. Requires access
Electrical
UL Listed for a maximum of 8 No. 12, 75°C through branch circuit conductors, or
60°C supply conductors for end of run.
Labels
UL Listed for damp locations, I.B.E.W.
Alzak
®
is a registered trademark of ALCOA.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
4 1/2" Aperture A19
TOP VIEW
13"
Molded
Overlap Self-Flange
Matte White or Polished
Trim Ring
Frame-In Kits
Lamp
P401 Clear
A19 100W
Q402 Gold
P401 Clear
A19 100W
Q402 Gold
P401 Clear
A19 100W
Q402 Gold
from above ceiling)
Type:
www.lightolier.com
P7006
