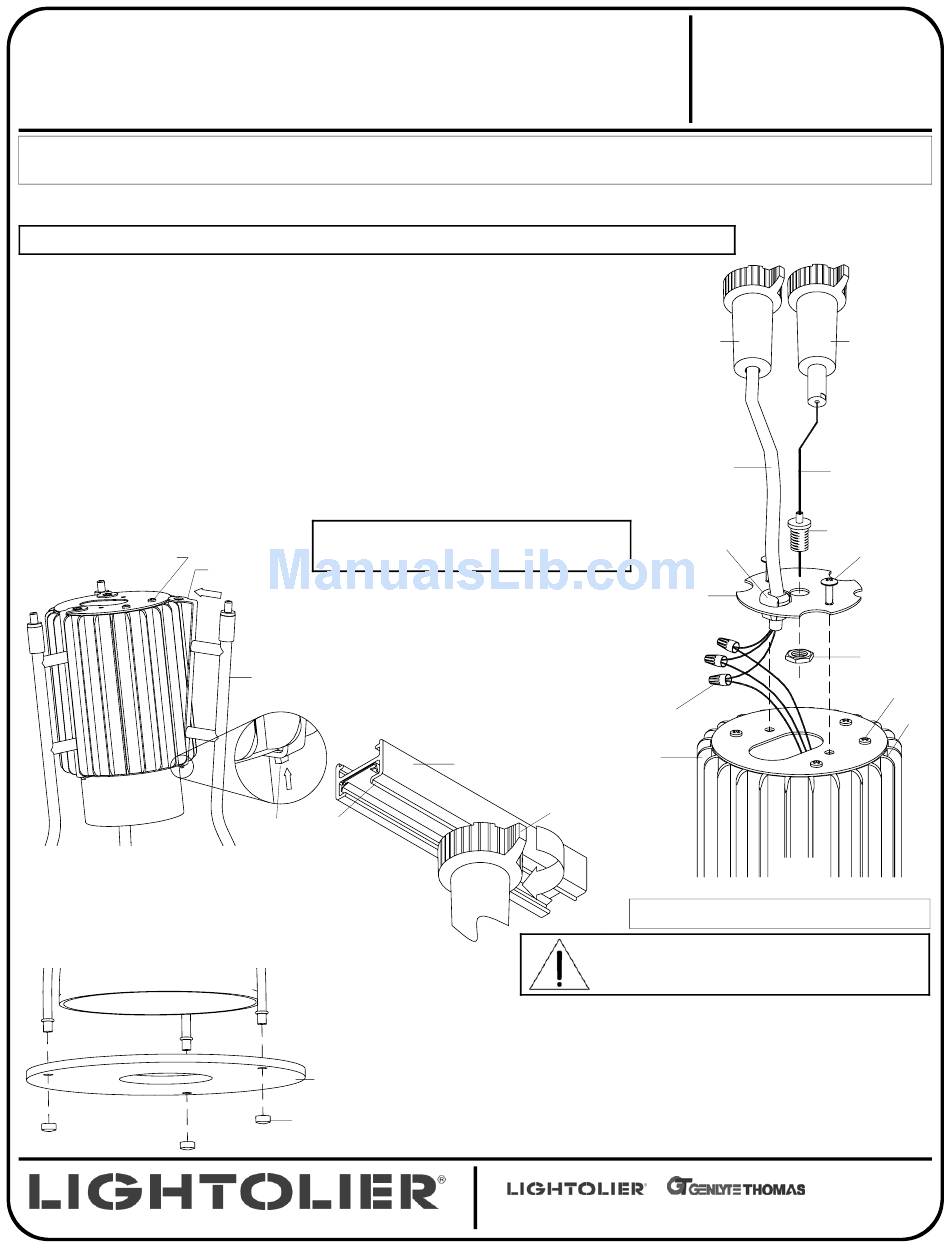

Lightolier PENDALYTE SERIES Instructions For Maintenance Reference

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING LUMINAIRE
This luminaire is intended for installation in accordance with the National Electrical Code and local regulations.
To assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electric shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.
INSTRUCTIONS FOR 9",12"&16" PENDALYTE™ SERIES TRACK MOUNT TO LYTESPAN ® TRACK SYSTEM
SUSPENSION KITS. FOR USE WITH LYTESPAN TRACK SYSTEMS ONLY.
Note: This instruction sheet covers several luminaire styles. Powerhead assembly, lamp type, and reflector style may vary slightly from that
shown, although installation is the same.
CAUTION: MAXIMUM WATTAGE AS MARKED ON LUMINAIRE MUST NOT BE EXCEEDED.
POWERHEAD INSTALLATION (fig. 1):
Note: On 9" unit MOUNT PLATE must be oriented correctly to clear DOOR SCREW head (see fig. 1).
1. Attach CABLE ADJUSTER to MOUNT PLATE with PANEL NUT.
2. Pass POWERCORD through relief bushing hole in MOUNT PLATE.
3. While supporting POWERHEAD ASSEMBLY wire luminaire using WIRE NUTS (local
hardware item): black luminaire lead to hot (black) POWERCORD lead, white luminaire lead
to neutral (white) POWERCORD lead. Attach luminaire ground wire(s) (green and/or bare) to
green ground wire from POWERCORD.
4. Height adjustment: to raise luminaire push excess POWERCORD down into POWERHEAD.
(Make certain CABLE does not interfere with internal wiring or components, both
POWERCORD and CABLE may be cut inside POWERHEAD. Remove DOOR SCREW and
pull DOOR away from POWERHEAD). CABLE is inserted into CABLE ADJUSTER. Raise
luminaire by providing slack in CABLE and pushing through CABLE ADJUSTER. Lower
luminaire by depressing PLUNGER .
5. Secure POWERCORD to MOUNT PLATE with RELIEF BUSHING.
6. Attach MOUNT PLATE to
POWERHEAD with 8-32 SCREWS.
SCREW HEAD / LANCED TAB
Fig. 3
DIFFUSER DISC INSTALLATION (fig. 4)
1. Install DECO TUBE assemblies to
POWERHEAD first.
2. Align holes in DISC with ends of DECO
TUBES.
Fig. 4
CAUTION: MAKE CERTAIN WIRES
ARE NOT PINCHED BETWEEN PARTS.
TUBE CLIP
DECO TUBE INSTALLATION (fig. 3)
1. Slip bottom of TUBE CLIP over TAB on
bottom of POWERHEAD.
2. Pivot top of DECO TUBE assembly until
top of TUBE CLIP snaps over SCREW
DECO
HEADS (9" units) or LANCED TABS
TUBES
(12"&16" units).
3. Repeat for remaining tube
BEAD
TAB
INSTALLATION INTO TRACK (fig. 2)
1.
2.
3.
DISC
4.
CAP NUTS
5.
TRACK
STEM LEVER
Fig. 2
Turn off power to TRACK.
Insert SUSPENSION STEM into track. The STEM LEVER must be on the same
side as the track bead. See fig. 2.
Rotate suspension stem 90° clockwise using STEM LEVER. STEM LEVER
should be parallel to TRACK.
To remove: rotate SUSPENSION STEM 90° counterclockwise using STEM
LEVER.
Repeat steps 2 and 3 with POWER STEM.
631 Airport Road, Fall River, MA 02720
INSTRUCTION SHEET NO.
IS:49126LS
A0105
POWER
STEM
POWERCORD
RELIEF
BUSHING
MOUNT
PLATE
WIRE NUTS
POWERHEAD
ASSEMBLY
NOTE: Not for use with ProSpec track.
WARNING: TO PREVENT ELECTRIC
SHOCK, TURN OFF POWER TO TRACK.
A
Page 1 of 1
SUSPENSION
STEM
CABLE
CABLE ADJUSTER
8-32 SCREWS
PANEL NUT
DOOR
SCREW
DOOR
Fig. 1
COMPANY
