Lightolier PENDALYTE POWERHEAD Instructions For Maintenance Reference

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING LUMINAIRE
This luminaire is intended for installation in accordance with the National Electrical Code and local regulations.
To assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electric shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.

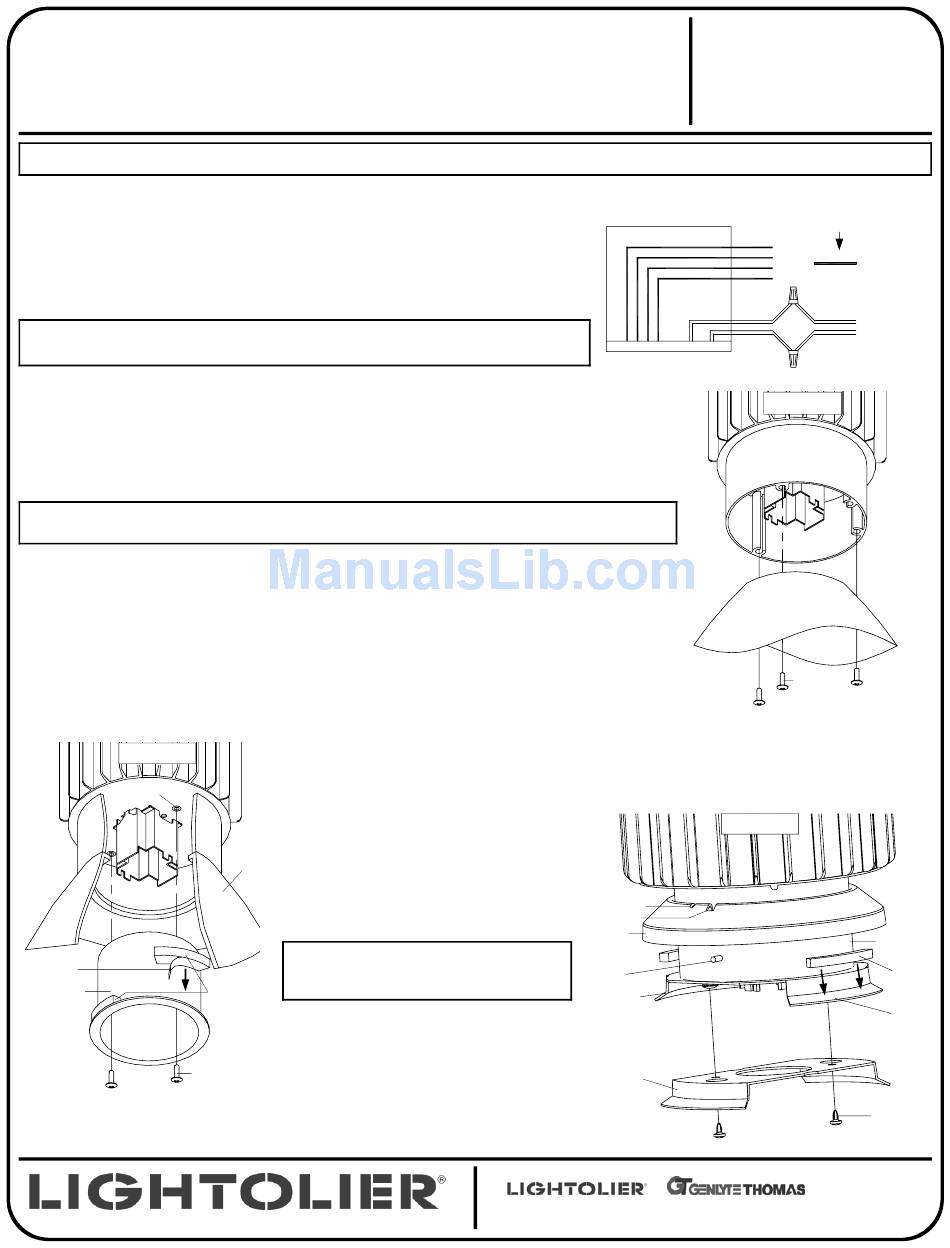

INSTRUCTION SHEET FOR 9",12"&16" PENDALYTE™ POWERHEAD
Note: This instruction sheet covers several luminaire styles. Powerhead assembly, lamp type, and reflector style may vary slightly from that
shown, although installation is the same.
To wire POWERHEAD to suspension kit (Standard, Stem, and Deco suspension kits sold
separately) follow instructions enclosed with individual suspension kit and connect as follows:
Using wire nuts (local hardware item) connect black lead to hot (black) power lead, connect
white lead to neutral (white) power lead, connect green/bare leads to ground (green) lead.
METAL HALIDE FIXTURES: refer to wiring diagram in fig. 1.
MAXIMUM WATTAGE AS MARKED ON LUMINAIRE MUST NOT BE
CAUTION:
EXCEEDED.
9"ALUMINUM REFLECTOR INSTALLATION
1. Locate 8-32 SCREWS, (supplied with POWERHEAD).
2. Align holes in ALUMINUM REFLECTOR with threaded holes in SPACER COLLAR. (Fig. 2)
3. Install 8-32 SCREWS and tighten evenly.
9" GLASS SHADE INSTALLATION
:
Wear safety glasses. Glass is fragile. Handle with care. Broken glass may pose
CAUTION
a personal safety hazard.
NOTE: Natural oils and soil may discolor and stain glass finish. Wearing clean cotton gloves is recommended.
1. Locate RETAINER CUP, GASKET STRIPS and 8-32 SCREWS, (supplied with POWERHEAD).
Thoroughly clean aluminum retainer cup to insure good adhesion of GASKET STRIPS. Peel off
ADHESIVE BACKING and apply GASKET STRIPS to retainer, equally spaced, as shown. (Fig. 3)
2. Support glass shade in place, align evenly with extruded collar, and align RETAINER CUP with
THREADED INSERTS in socket plate.
3. Install 8-32 SCREWS and tighten evenly to compress gasket strips.
POWERHEAD
THREADED
INSERT
ADHESIVE
BACKING
RETAINER CUP
8-32
SCREWS
Fig. 3
12"&16" REFLECTOR/REFRACTOR INSTALLATION
1. Slide COLLAR up extruded NECK.
2. Peel off backing of FOAM GASKET and adhere to TABS on SOCKET MOUNT PLATE. (Fig. 4)
3. Tip Reflector/Refractor over SOCKET MOUNT PLATE and allow Reflector/Refractor to rest on
FOAM GASKET.
4. To secure Reflector/Refractor align SLOT in
COLLAR over PINS and slide COLLAR down
NECK. Twist COLLAR counter-clockwise allowing
GLASS
SHADE
PIN to rest in NOTCH.
12" REFRACTOR SUPPORT
CAUTION: 12" HID units with Acrylic Refractor
must have REFRACTOR SUPPORT PLATE
installed.
GASKET
STRIPS
REFRACTOR SUPPORT PLATE and SUPPORT
PLATE SCREWS ARE supplied with all 12" HID
units.
1. Install Acrylic Refractor per instructions above.
2. Align REFRACTOR SUPPORT PLATE over
SOCKET MOUNT PLATE. (Fig. 4)
3. Secure REFRACTOR SUPPORT PLATE with
SUPPORT PLATE SCREWS.
INSTRUCTION SHEET NO.
HID BALLAST
NOTCH
SLOT
COLLAR
PIN
SOCKET
MOUNT
PLATE
REFRACTOR
SUPPORT
PLATE
a
631 Airport Road, Fall River, MA 02720
IS:4091216
A0304 Page 1 of 1

CONNECT TO APPROPRATE VOLTAGE

277V
BLACK
240V
208V
120V
POWERCORD
COMMON
WHITE
GROUND GROUND
Fig. 1
POWERHEAD
SPACER COLLAR
ALUMINUM REFLECTOR
8-32
SCREWS
Fig. 2
POWERHEAD
NECK
SUPPORT
PLATE
SCREWS
Fig. 4
COMPANY
FOAM
GASKET
TAB
