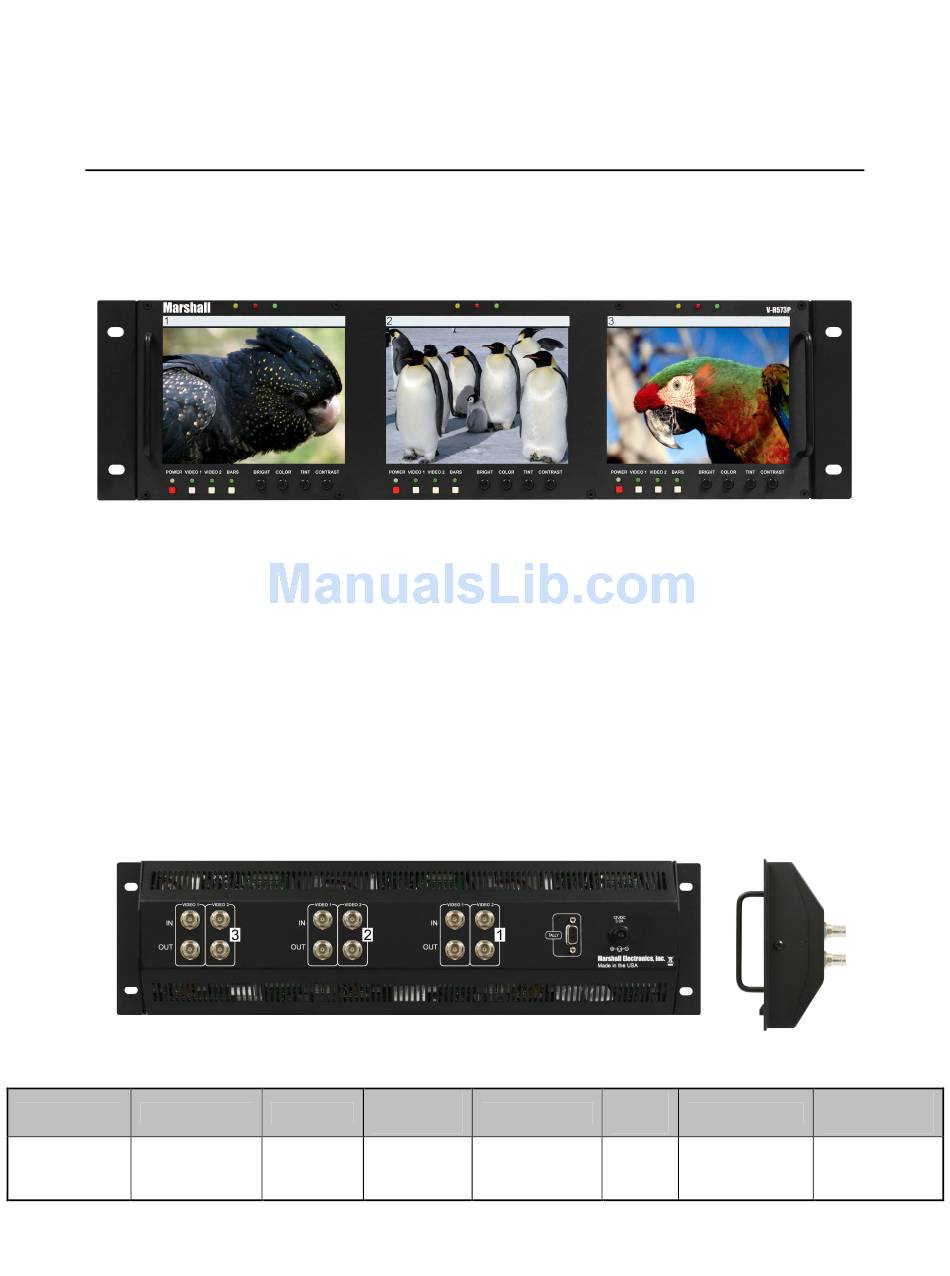

Marshall Electronics V-R573P Instruction Sheet

Marshall Marshall
Marshall Marshall
Broadcast Multimedia Division

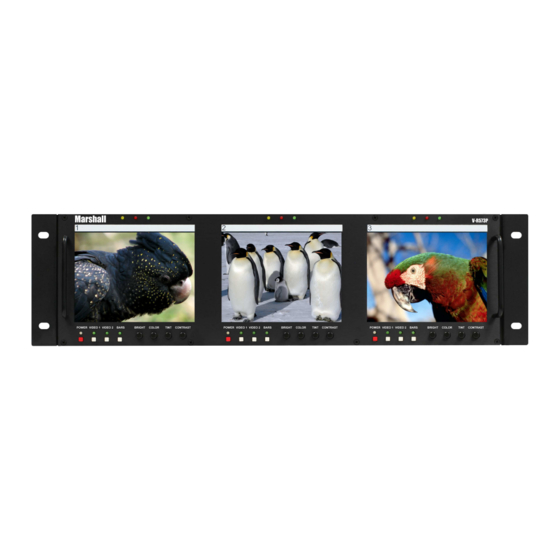

The V-R573P is a rack mounted unit that has three independently controlled 5.7" active matrix LCD
panels with loop-through capability. This unit also has a unique feature that allows the unit to tilt up or
down for optimum viewing angle. The unit fits into a EIA standard 19" rack, three rack spaces high.
Each of the three screens has individual front mounted selector buttons with LED's and color, tint,
brightness and contrast controls. Each screen has two composite video NTSC/PAL inputs with loop-
through and a built-in color bar generator.
The operation of the V-R573P is fairly straight forward. However, it is important to take note of
the following:
1. Each LCD Panel comes with a protective plastic film that must be removed by carefully lifting
the film from the corner and peeling it off. Be certain not to apply any pressure on the LCD
panels, they are fragile and can break. Scratched, cracked or broken LCD screens are not
covered by our warranty.
2. The V-R573P uses 12VDC, 2.0amp regulated power. Be certain that these specifications are
met when using a power supply other than the one supplied to you by Marshall Electronics.
3. The polarity configuration for the V-R573P is indicated on the rear panel of the unit. Any
battery operation of the V-R573P must have this polarity configuration.
4. The video inputs on the rear of the panel are 75 Ohm self-terminated. The loop-through
feature uses active components and is always active as long as power is supplied to the unit
regardless of the monitor being ON or OFF.
Display Active Area
115.2mm x
5.7" LCD
86.2mm Per
Active Matrix
Panel

Rear View

Dot Pitch
Elements
0.18mm x 640 x 480
0.18mm Per Panel
V-R573P Instruction Sheet
http://www.LCDRacks.com e-mail: sales@mars-cam.com
Color
Inputs
Bars
2 Composite Built In

Side View

Power
Dimensions
Consumption
18.96W x 12 VDC 2.0
5.2H x 2.5D Amps
