Mounting Pad Installation

The gate operator mounts bolted to a custom poured
concrete mounting pad. The pad supports the operator and
prevents it from twisting during operation.
An optional post mount kit is also available (P/N 2120-483)
which allows installation without a concrete mounting pad.
Mounting Pad Specifi cations
Recommended pad size is 24" x 20" x 18" deep minimum.
Pad depth should be set according to local codes and at
least as deep as frost line.
If soil conditions may cause the operator and pad to shift or
twist during operation, anti-rotation legs may be required.
Use two 6" diameter, 10" deep legs to counteract this
problem as shown.
5/8" J-bolts may be set into the concrete before it sets
following the dimensions shown, or drilled after the concrete
sets.
GATE LINE ON THIS SIDE
20"
14-1/2"
CONDUIT
ENTRY ZONE
24"
14"
2-3/4"
6-3/4" 8-1/2"
1/2" FLEX
CONDUIT
18"
SWR • SWC • SWD Swing Gate Operator Installation Guide
"W" DIMENSION IS 33" FOR
STANDARD APPLICATIONS
(GATE ARM ACCOMODATES
TO 40" "W" IF EXTRA SPACE
IS REQUIRED)
5"
10-1/2"
5"
INSTALLER TIP:
MAKE A WOOD JIG TO
ALIGN AND HOLD J-BOLTS
AND CONDUITS UNTIL
THE CONCRETE SETS
5/8" x 8"
J-BOLTS (4)
CONCRETE
OPERATOR
PAD 3D VIEW
IN SOFT SOIL, POUR
TWO 6" DIAMETER
10" DEEP "LEGS" TO
PREVENT ROTATION

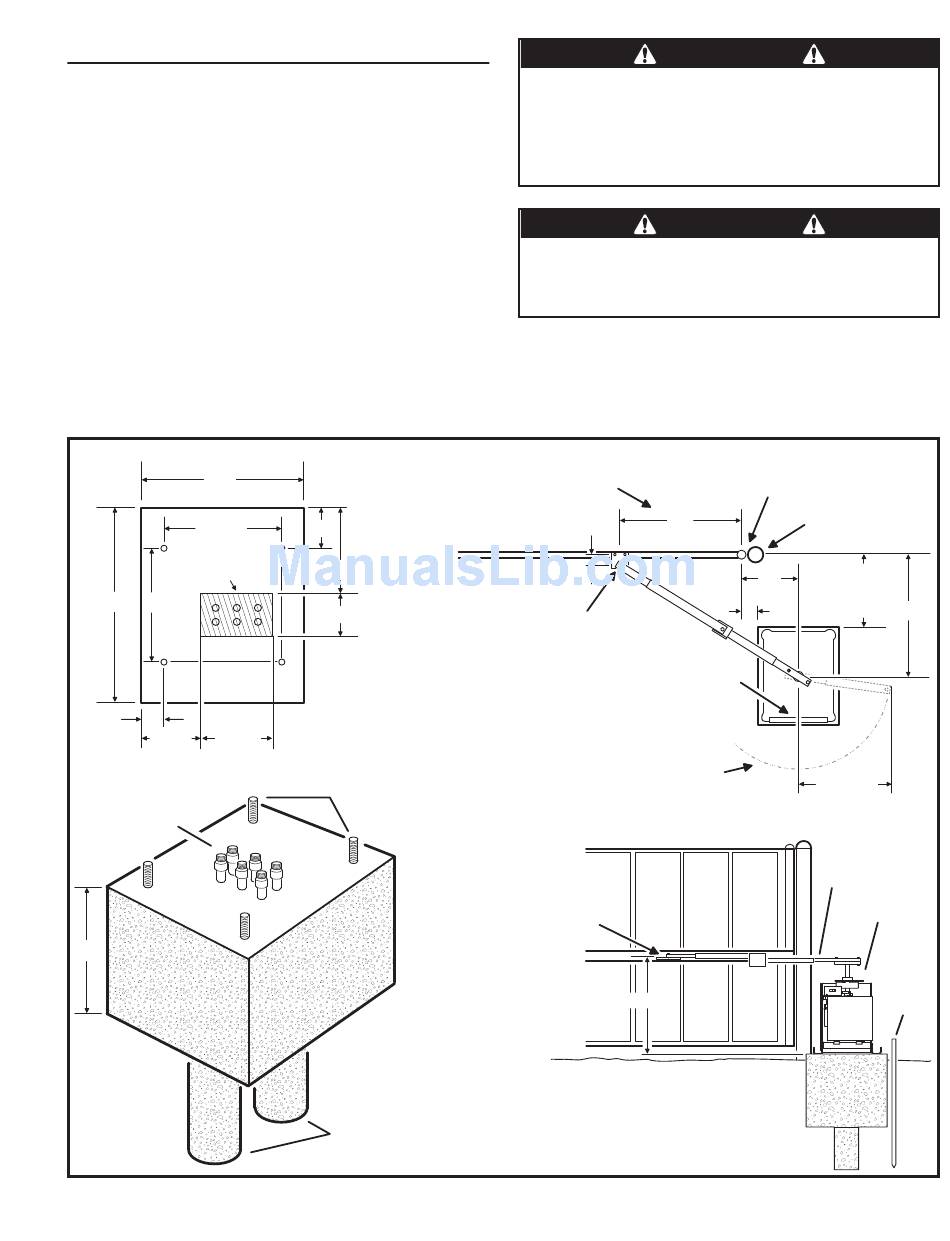

Figure 1. Mounting Pad Specifi cations
- 3 -
WARNING
The operator is intended for installation only on gates used for
vehicles. Pedestrians must be supplied with a separate access
opening. The pedestrian access opening shall be designed to
promote pedestrian usage. Locate the gate such that persons
will not come into contact with the vehicular gate during the
entire path of travel of the vehicular gate.
WARNING
The gate must be installed in a location so that enough
clearance is supplied between the gate and adjacent structures
when opening and closing to reduce the risk of entrapment.
Swing gates shall not open into public areas.
✓ NOTE: Maximum gate opening angle is approximately 95 degrees,
depending on gate width. If larger opening angle is required,
non-standard positioning of the operator and modifi ed articulating
arms may be required. Contact the factory for technical information,
pricing, and availability.
GATE TOP VIEW
W
(TYP. 33")
2-3/4"
GATE PLATE
ARM HOLE
2-3/4" BEHIND
OPERATOR
CENTERLINE
ACCESS DOOR
OF GATE
FACES AWAY
FROM GATE LINE
BACKSPACE REQUIREMENT
FOR ARM SWING IS 25" STANDARD OR
UP TO 30" WITH FULL ARM EXTENSION
INSIDE VIEW OF GATE
TOP OF GATE PLATE
24-7/8" ABOVE THE
TOP OF THE PAD
24-7/8"
"RIGHT-HAND"
INSTALLATION
GATE HINGE
GATE POST
W
17"
MINUS
7"
12"
W
25" - 30"
GATE ARM
OPERATOR
EARTH
GROUND
STAKE
227965 Revision X22 8-11-2011
