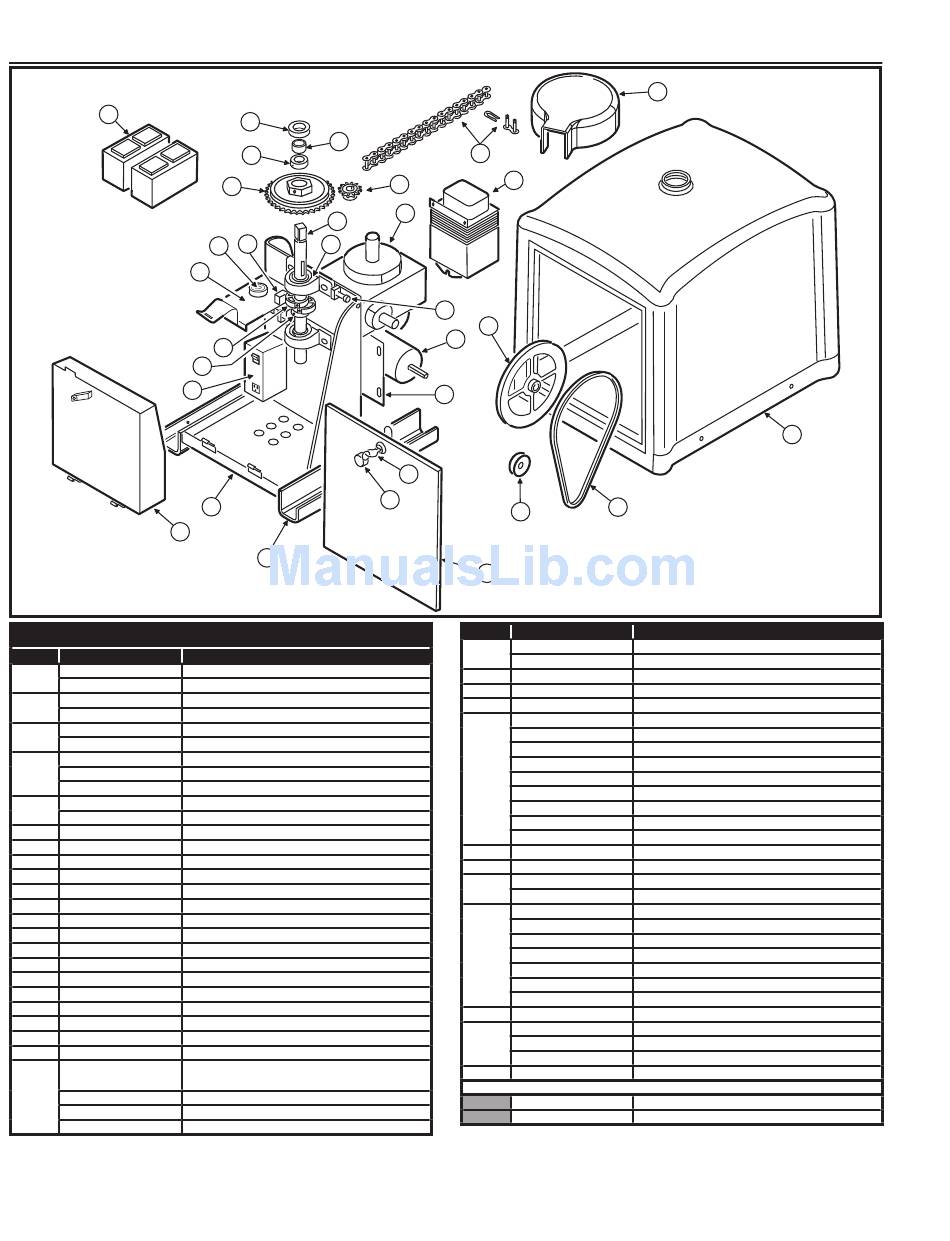

Model SWD Exploded View

28
20
25
MODEL SWD MECHANICAL PARTS LIST
REF. # PART #
2300-925-BEIGE Operator Cover, Tan
1
2300-925-BLACK Operator Cover, Black
2300-926-BEIGE Rain Cap, Tan
2
2300-926-BLACK Rain Cap, Black
2100-2030-BEIGE Access Door, Tan (no lock or reset button)
3
2100-2030-BT Access Door, Black (no lock or reset button)
2510-354 Plunger Reset Assembly
3A 2500-2240 Plunger Reset Button
2500-2241 Plunger Extension Only
2200-790 Lock for Cover, with Keys
3B
2200-824 Extra Keys
4 2110-785 Frame Assembly
5 2400-509 Socket Head Cap Screw, 3/8-16 x 1-1/2"
7 2500-1902 Motor, 24 VDC
7A 2100-2037 Motor Mounting Plate
7B 2510-223 Transformer Assembly
2500-1776 Transformer only, 115 VAC - 24 VAC, 250VA
8 2200-411 Pulley, 1-1/2", 1/2" bore
9 2200-975 V-belt, 4L, 29"
10 2200-081 Gear Reducer, 60:1
11 2200-079 Pulley, 7", 3/4" bore
12 2200-084 Sprocket, 40-B-13, 1" bore
13 2100-2020-PLT Drive Shaft
13A 2200-015 Shaft Collar, 1" diameter, 9/16 LTB
13B 2100-519-PLT Sleeve Spacer
13C 2200-016 Moisture Seal
14 2200-274 Pillow Block Bearing, 1" diameter
5" Torque Limiter with Bushing and 40-A-36
2220-048
Sprocket
15
2300-381 Friction Disc Pair for 5" Torque Limiter
2200-782 Bushing for 5" Torque Limiter
2200-583 Sprocket, 40-A-36, 1" Bore
SWR • SWC • SWD Swing Gate Operator Installation Guide
13C
13B
13A
15
13
19 14
26
22
17
18
23
4
DESCRIPTION
16
7B
12
10
5
11
7
7A
3B
3A
8
3
REF. # PART #
2200-673
16
2200-006
17 2100-1748
18 2200-015
19 2500-2347
2510-432
2500-2411
2500-2413
2100-2113
20 2100-2112
2500-1819
2500-1742
2500-2473
2500-1768
21 2100-2111
22 2100-2108
2100-2024
23
2200-874-PLT
2510-439
2500-2393
2500-2399
25 2100-2104
2300-1025
2510-423
2510-420
26 2500-2435
2510-182
28 2500-1118
2300-450
29 2510-433
2120-483
2100-2041
- 28 -
2
1
9
DESCRIPTION
#40 Chain, 21 Links
#40 Master Link
Limit Cam
Shaft Collar, 1" diameter, 9/16 LTB
Limit Switch
Power Box Assembly
Power Switch
Power Outlet
Back Plate
Cover Plate
Fuse Holder
Fuse, 6 Amp, Slow-Blow
Relay, 24 VDC
Bridge Rectifi er
Controller Latch
Limit Switch Mounting Bracket
Accessory Mounting Shelf
Hinge, Male for Control Box
APeX Module and DC Motor Board Assembly
APeX Module
APeX DC Motor Module
APeX Mounting Plate
Plastic Cover Only
Knob Kit
Stop/Reset Switch and Bracket Assembly
Alarm
Battery Assembly
Battery, 12V (2 required)
Velcro Tape, per foot
Wiring Harness Assembly (Not Shown)
OPTIONAL PARTS
Post Mounting Kit
Operator Base Plate
227965 Revision X22 8-11-2011
