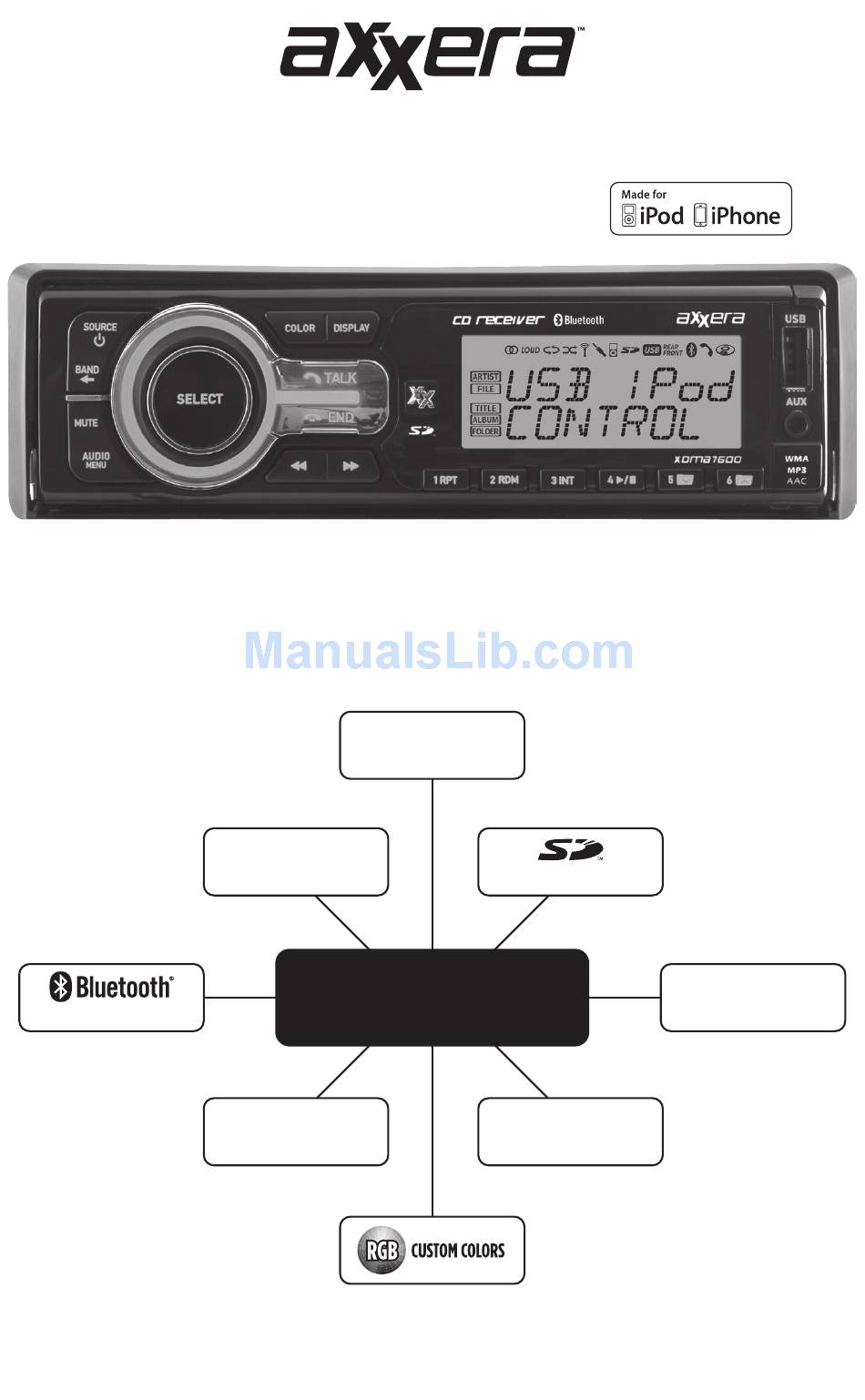

- Page 1 CD Receiver Installation & Owner's Manual 3 Band EQ HPF/LPF/Q-Factor/C-Freq. 2 USB Ports iPod®/iPhone®/Flash Drive SDHC Supported XDMA7600 MP3/WMA/AAC Playback HFP/A2DP/AVRCP/PBAP CD-R/RW Compatible 3.5mm Input...
-
Page 2: Preparation
XDMA7600 Preparation Please read entire manual before installation. Before You Start • D isconnect negative battery terminal. Consult a qualified technician for instructions. • A void installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. Getting Started • Remove trim ring from unit, • Insert the supplied keys into the slots as shown, and slide the unit out of the mounting sleeve. • Install mounting sleeve into opening, bending tabs to secure. • Connect wiring harness and antenna. Consult a qualified technician if you are unsure. • Certain vehicles may require an installation kit and/or wiring harness adapter (sold separately). KEYS • Test for correct operation and slide into mounting sleeve to secure. -
Page 3: Replacing Fuse
XDMA7600 Wiring Diagram RCA Preamp Output BLACK Female USB Input Connections Rear USB Connection SUBWOOFER REAR FRONT FRONT REAR SUB/W L-CH R-CH REMOTE IN Antenna Optional USB Extension Cable Connector (Included) Steering Wheel Interface Input PAC SWI-PS connection (sold separately) 3.5mm Bluetooth Microphone Input Connect the included... -
Page 4: Receiver Controls
XDMA7600 Receiver - Controls Control Function Description Source/Power Changes to another mode of operation. Hold down to power off/on. Accesses additional radio presets and cycles between FM and AM radio. Steps Band/Back backward or exits music searches or menus. Select Activates music searches. Confirms menu options. Color Changes the illumination color. Hold to access the color menu. Bluetooth Talk Answers phone calls. Accesses Number Dial, Recent Calls and Redial functions. Display Cycles displayed information. Hold to set the clock. Front USB Port Connect a USB flash drive, iPod or iPhone device. Open Opens the front panel to access the reset button, CD and SD card slots. Auxiliary Input Connect a 3.5mm cable from the headphone output of an MP3 player. Preset 6/Folder Up Recall/Set preset 6. Changes to the next folder. Preset 5/Folder Down Recall/Set preset 5. Changes to the previous folder. Preset 4/Play/Pause Recall/Set preset 4. Cycle between pause/play. Preset 3/Intro Recall/Set preset 3. Intro menu (plays the first 10 seconds of each song). Preset 2/Random Recall/Set preset 2. Random menu (shuffles songs in a random playback order). Preset 1/Repeat Recall/Set preset 1. Repeat menu (repeat the current song, folder or album). Track/Tune Up Changes to the next song or radio station. Hold to fast forward or seek up. Bluetooth End Call Ends the current phone call. Hold to disconnect from Bluetooth. -
Page 5: Ir Remote - Controls
XDMA7600 IR Remote - Controls Source / Power ( ) Key 9 / # Key Select End Call Volume Up Key 0 / Display Audio / Menu Talk Tune / Track Up Key 7 / * Key Volume Down Key 8 / Color Mute Preset 4 / Play / Pause Preset 2 / Random Preset 1 / Repeat Preset 3 / Intro Band / Back Preset 6 / Folder Up Tune / Track Down Preset 5 / Folder Down... -
Page 6: General Operation
XDMA7600 General Operation Faceplate Removal Press RELEASE to fold down the front panel. While pushing the front panel left, pull the right side away to remove. To reinstall, slide in bottom left side, then snap left side up and into place. Power On/Off Press or any other button to turn unit on. Press and hold turn unit off. Source Press SOURCE to select between AM/FM, CD, auxiliary input, operation of iPod, USB, SD and Bluetooth modes. Modes of operation are indicated in the display. Note: CD mode will not appear unless a CD is inserted. Operation of iPod mode will not appear unless an iPod device has been connected. USB and SD modes will not appear unless a USB device has been connected or SD card has been inserted. Note: iPod and iPhone devices may be connected to the front and/ or rear USB ports. Steering Wheel Interface The steering wheel interface input located on the back of the Input head unit allows connection to the PAC (Pacific Accessory Corporation) SWI-PS interface module (sold separately). Visit www.pac-audio.com for details. To configure steering wheel controls, follow the instructions provided with the PAC SWI-PS interface module. After installing the interface module, insert the module's 3.5mm jack into the port on the back of the head unit. -
Page 7: Setup Menu
XDMA7600 Setup Menu Press and hold AUDIO/MENU for more than 3 seconds to access the setup menu, then press AUDIO/MENU to cycle through menu options. When desired option appears in the display, rotate the volume knob left/right to adjust or activate desired function. Press BACK to exit any menu or submenu. Function Options Action Auto Station AUTO PGM Press SELECT to begin automatically programming strong radio stations Store STATIONS to the 6 preset buttons in the current band. (Tuner mode only) Activates distance tuning. (Tuner mode only) LOCAL OFF Local/Distance Tuning LOCAL ON Activates local tuning for strong station reception only. (Tuner mode only) Programs the unit to USA tuner spacing. FREQ USA Tuner (200kHz for FM and 10kHz for AM). (Tuner mode only) Frequency Programs the unit to European tuner spacing. Spacing FREQ EUR (50kHz for FM and 9kHz for AM). (Tuner mode only) IPOD CNT FULL... -
Page 8: Audio Menu
XDMA7600 Audio Menu Press AUDIO/MENU momentarily to cycle between Bass, Treble, Balance, Fader, Equalizer, Subwoofer, High Pass Filter and Source Volume Level. Press BACK at any time to exit the audio menu. BASS MIDDLE TREBLE BALANCE FADER SUBWOOFER SOURCE LEVEL Bass Press AUDIO/MENU until BASS appears, then rotate the volume knob left/right to adjust (-6 minimum / +6 maximum). Middle Press AUDIO/MENU until MIDDLE appears, then rotate the volume knob left/right to adjust (-6 minimum / +6 maximum). Treble Press AUDIO/MENU until TREBLE appears, then rotate the volume knob left/right to adjust (-6 minimum / +6 maximum). Note: Bass, Middle and Treble settings are retained for each mode individually. Balance Press AUDIO/MENU until BALANCE appears, then rotate the volume knob left/right to adjust (BALANCE LEFT 12 to BALANCE RIGHT 12). "BALANCE EVEN" represents equal balance. - Page 9 XDMA7600 Audio Menu - Advanced Control The XDMA7600 inclues advanced audio control to provide superior adjustability in the sound output. These adjustments include: • Center Frequency - focuses bass, mid, and treble adjustments around a specific frequency. • Quality ("Q") Factor - narrows or expands the bass or mid bandwidth around the center frequency. • Low Pass Filters - removes mid and treble frequencies from the subwoofer RCA outputs. These advanced audio controls are located as sub-menu items in the audio menu as shown below. Press AUDIO/MENU BASS MIDDLE TREBLE Press BAS FREQ MID FREQ TRE FREQ SELECT BAS Q MID Q Bass Center Frequency Press AUDIO/MENU until BASS appears. Then press SELECT until BAS FREQ appears. Rotate the volume knob to adjust (50Hz - 100Hz - 200Hz).
-
Page 10: Am/Fm Tuner Operation
XDMA7600 LCD Icon Layout Operation Stereo FM Reception Repeat Tuner of iPod Phone Call Loudness Random SD Card Bluetooth CD-in Artist Name File Name Song Title Album Name Folder Name AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE for more than one second to seek the next strong station. Manual Tuning Press TUNE or TUNE momentarily to move radio frequency up or down one step at a time. Press and hold to advance quickly. - Page 11 XDMA7600 CD Player Operation - Audio CDs Insert CD Fold down front panel to access the CD slot. With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Eject CD Fold down front panel and press EJECT to eject the CD. The unit will change to previous mode of operation. If the disc is not removed within 10 seconds, the unit will reload the disc. The unit does not have to be turned on to eject CD. Track Select Press TRACK to skip to the beginning of the next track. Press TRACK to return to the beginning of the current track. Pressing TRACK again skips to the beginning of the previous track. Fast Forward/Reverse Press and hold TRACK or TRACK to fast forward or reverse a track. / II to temporarily stop CD playback. Pause Press / II again to resume playback.
- Page 12 XDMA7600 CD Player Operation - MP3/WMA/AAC Playing an MP3/WMA/ When an MP3/WMA/AAC encoded disc is first inserted, AAC Disc “READING” will appear in the display. Depending on the number of files and folders, this may take several seconds. Folder Access Press to select the next folder. Press to select the previous folder. *Folder access is only available on discs recorded with more than one folder. Repeat Press RPT to enter the Repeat menu, then turn the volume knob to select one of the following options: • ALL - Plays all tracks on CD. • SONG - Continuously repeats selected track. • FOLDER - Continuously repeats all files in the folder. Random Press RDM to enter the Random menu, then turn the volume knob to select one of the following options: • OFF - Cancels the RDM function. • ALL - Plays all tracks in random order. • FOLDER - Plays all tracks in the folder in random order. Note: Random mode is retained in memory when selecting between other modes and when the unit is turned on/off.
- Page 13 XDMA7600 CD Player Operation - MP3/WMA/AAC File/Folder Search Begin Searching Press SELECT to enter the data CD file/folder search mode. An alphabetical list of files and folders in the current folder from the USB/SD card device will be displayed. Search menu controls • Turn the volume knob to cycle through the list of files and folders. • Press SELECT to change to the selected folder or play the selected file. • Press BACK to change to the previous folder or to exit the search menu (from the "ROOT" folder). File and Folder names The icon will illuminate when a folder name is currently being displayed. The icon will illuminate when a file name is currently being displayed. Note: Files not located in a folder will appear in the "ROOT" folder. Root Press Press SELECT BACK Folder 1 Folder 2 File 1...
- Page 14 XDMA7600 CD Player Operation - MP3/WMA/AAC File/Folder Compatibility and Support • CD-ROM (ISO), CD-R, CD-RW • CD-DA (digital audio) Compatible File Types • MP3 data (.mp3) • WMA data (.wma) • AAC data (.m4a) • DRM protected files • WMA lossless • Apple lossless Incompatible File • WMA Pro Types • MP3 Pro • MP3 playlists • WAV lossless • ISO9660 level 1 & level 2 Recording Format • Yellow book MODE 1 & MODE 2 FORM 1 Compatibility • Multi session • MP3: 8kHz - 48kHz Sampling Frequency • WMA: 32kHz - 48kHz Rate Compatibility • AAC: 8kHz - 48kHz • MP3: 32kbps - 320kbps...
-
Page 15: Operation Of Ipod/Iphone
XDMA7600 Operation of iPod/iPhone Connecting an iPod/iPhone Device USB Connection Using the "dock connector to USB" sync cable (provided with the iPod/iPhone device), plug the USB cable into one of the XDMA7600's two USB ports. Once connected, playback will begin automatically. You may connect the iPod/iPhone device to the front USB port, rear USB port, or to both ports. A USB extension cable is included for better rear USB port access. Controlling a Device: Full Control When the control of iPod/iPhone feature is set to "FULL" in the Setup Menu, use the following functions to control the device: Song Select Press to skip to the beginning of the next song. -
Page 16: Displayed Information
XDMA7600 Operation of iPod/iPhone Controlling a Device: Full Control - Music Search The XDMA7600 features a powerful music search that simplifies the searching process. Follow the steps below to find the desired song: Begin Searching Press SELECT to begin the search. The main search menu will appear. Select a Category Turn the volume knob to select between artist, album, song, playlist, podcast, audiobook and genre. -
Page 17: Device Compatibility
XDMA7600 Operation of iPod/iPhone Controlling a Device: Manual Control When the control of iPod/iPhone feature is set to "MANUAL" in the iPod Menu, use the following functions to control the device: Manual Control for iPod When "MANUAL" control for iPod is selected from the Setup Menu, the iPod or iPhone device can be controlled directly from the device's interface. All functions except for volume can be used from the iPod or iPhone device. Basic Head Unit Control In addition to manual control of the iPod/iPhone device, the following basic functions are still active: Song Select... -
Page 18: Usb/Sd Card Operation
XDMA7600 USB/SD Card Operation Connect a USB Device To play MP3/WMA/AAC files from most mass storage (sold separately) devices,connect a device to one of the XDMA7600's two USB ports (front or rear). Connect an SD Card To play MP3/WMA/AAC files from an SD Card, insert an SD (sold separately) card into the XDMA7600's SD card slot, located behind the front panel. Insert the SD card with the label facing to the left, and press the card until it clicks into place. Remove the SD card by pressing in until it clicks, then pull to remove. Playing Music When a USB or SD card device is first connected, playback will begin momentarily. Depending on the number of files and folders, it may take several seconds for the device to begin playing. If no valid MP3/WMA/AAC files are detected, “NO FILE” will be displayed and the last mode will be resumed. Track Select Press TRACK to skip to the beginning of the next track. Press TRACK to return to the beginning of the current track. Pressing TRACK again skips to the beginning of the previous track. - Page 19 XDMA7600 USB/SD Card Operation File/Folder Search Begin Searching Press SELECT to enter the USB/SD file/folder search mode. An alphabetical list of files and folders in the current folder from the USB/SD card device will be displayed. Search menu controls • Turn the volume knob to cycle through the list of files and folders. • Press SELECT to change to the selected folder or play the selected file. • Press BACK to change to the previous folder or to exit the search menu (from the "ROOT" folder). File and Folder names The icon will illuminate when a folder name is currently being displayed. The icon will illuminate when a file name is currently being displayed. Note: Files not located in a folder will appear in the "ROOT" folder. Root Press Press SELECT BACK Folder 1 Folder 2 File 1 File 2 File 3...
- Page 20 XDMA7600 USB / SD Card Operation Displayed Information Press DISP momentarily to select between song title/artist (default), file/folder name, track number/clock & elapsed time. (LINE 1) FILE NAME ELAPSED TIME ARTIST TRACK NUMBER (LINE 2) SONG TITLE FOLDER NAME CLOCK TOTAL TRACKS File/Folder Compatibility and Support • MP3 data (.mp3) • WMA data (.wma) Compatible File Types • AAC data (.m4a) • WAV lossless • DRM protected files • WMA lossless Incompatible File...
-
Page 21: Connecting A Paired Device
XDMA7600 Bluetooth Operation ® Pairing a Device Before you can use a Bluetooth device, it must be paired and Preparation connected. Make sure that Bluetooth is activated on your device before you begin the pairing process. The XDMA7600 broadcasts the pairing signal constantly Pairing a New Device when no devices are currently connected. Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "XDMA7600" The Bluetooth passcode "1234" Note: The XDMA7600 can be in any mode of operation when pairing is performed. If a device is currently connected, press and hold Pairing Additional Devices disconnect the current device before a new device can be paired. Then begin the pairing sequence from the new Bluetooth device. Connecting a Paired Device Most Bluetooth devices support the auto-connect feature, and will connect automatically if the device is in range when the XDMA7600 is powered-on. If your device was previously paired but does not connect, use these instructions below. -
Page 22: Making A Phone Call
XDMA7600 Bluetooth Operation ® Making a Phone Call Manual Dialing • Press once. "Enter Number" will be shown, then an "_" will appear on the display. • Using the remote control, enter the phone number using the 0-9 buttons. Press on the remote control or XDMA7600 front panel to begin dialing. Note: Placing a phone call from your cell phone will also use the Bluetooth function of the XDMA7600. Recent Calls List • Press twice from Bluetooth mode to view the 10 most recent phone calls that were dialed, received or missed while connected to the XDMA7600. • Turn the volume knob to cycle through the recent phone numbers. Press SELECT or to dial the phone number. Redialing the last To redial the last phone number, press three times from number Bluetooth mode. Dialing will begin automatically. Phonebook Menu* The XDMA7600 supports the PBAP Bluetooth profile to temporarily download the phonebook of the cell phone. Note: The contents of the phonebook are deleted each time a cell phone is disconnected, and not permamently saved. - Page 23 XDMA7600 Bluetooth Operation ® Receiving and Ending Phone Calls Receiving a Phone Call Incoming phone calls will automatically appear on the display and a ring tone will be heard. Note: The volume of the ring tone depends on the volume level of the XDMA7600. The incoming ring tone may not be heard if the volume is set to a low level or mute is activated. • Press to receive the incoming phone call. • Press to refuse the incoming phone call. Note: If Auto Answer is set to ON in the setup menu, all phone calls will be received automatically. Ending a Phone Call During an active phone call, press to end a phone call. If the phone call was received when listening to music in another mode, the XDMA7600 will resume the previous mode. During a Phone Call Volume Turn the volume knob to adjust the volume level during a phone call. Bluetooth mode has a separate volume level...
-
Page 24: Bluetooth Reset
XDMA7600 Bluetooth Operation ® Streaming Audio Operation The XDMA7600 supports A2DP (advanced audio distribution profile) wireless streaming audio from your Bluetooth mobile device directly to your head unit. You can also control your music from the front panel of the head unit using AVRCP (audio video remote control profile). Notes: • To stream music to your head unit, your mobile device must support the A2DP and AVRCP Bluetooth profiles. Check the owner's manual of your mobile device for details. • Streaming audio must be enabled from your mobile device. This option will vary depending on the device. Some devices allow streaming audio to be disabled. After pairing, connecting and enabling streaming audio from a compatible mobile device, begin playing music using the music player on your mobile device. Once the music is playing, the following functions can be used to control the music: • The button will skip to the next available audio track. • The button will skip to the previous audio track. / II • The button will toggle between play and pause during playback. • The button will stop the audio playback. Note: Some Bluetooth devices may not fully support these commands. Bluetooth Reset Resetting the Bluetooth module will remove the list of paired phones and delete the list of recent calls from memory. To reset Bluetooth, perform the following steps: 1) Press SOURCE until the head unit is in Bluetooth mode. 2) Press and hold MUTE for 3 seconds to reset the Bluetooth settings back to the factory default. Compatibility Note: Due to the differences in Bluetooth technology, some mobile devices may be incompatible, function improperly or may not support all features when used with the XDMA7600. Bluetooth Setup Menu Options Function Options... -
Page 25: Limited One Year Warranty
XDMA7600 Limited One Year Warranty This warranty gives you specific legal rights. What to do? You may also have other rights which vary 1. Before you call for service, check the from state to state. troubleshooting guide in your owner’s manual. A slight adjustment of any Dual Electronics Corp. warrants this custom controls may save you a service product to the original purchaser to call. be free from defects in material and workmanship for a period of one year from 2. If you require service during the the date of the original purchase. warranty period, you must carefully pack the product (preferably in the Dual Electronics Corp. agrees, at our original package) and ship it by prepaid option, during the warranty period, transportation with a copy of the original to repair any defect in material or receipt from the retailer to an workmanship or to furnish an equal authorized service center. -
Page 26: Troubleshooting - General
XDMA7600 Troubleshooting - General Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11-16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground Fuse blown Replace fuse Speaker wires not connected Check connections at speakers Unit has power Insulate all bare speaker wires One or more speaker wires touching (but no sound) from each other and chassis each other or touching chassis ground ground Yellow or red wire touching chassis Check for pinched wire... -
Page 27: Specifications
XDMA7600 Specifications FM Tuner Tuning range: 87.5MHz - 107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: 40dB Frequency response: 30Hz - 13kHz AM Tuner Tuning range: 530kHz - 1710kHz Usable sensitivity: 22uV Frequency response: 30Hz - 2.2kHz General Speaker output impedance: 4 to 8 ohms Line output voltage: 2 Volts RMS Dimensions: 7" x 7" x 2" (178 x 178 x 51 mm) USB/SD Card File system: FAT, FAT32... -
Page 28: Fcc Compliance
XDMA7600 FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. - Page 29 XDMA7600 Notes...
- Page 30 XDMA7600 Notes...
- Page 31 XDMA7600 Notes...
- Page 32 Dual Electronics Corp. Toll Free: 1-866-382-5476 axxera.dualav.com ©2011 Dual Electronics Corp. All rights reserved. iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Namsung is under license. The SD logo is a trademark of the SD Card Association. Other trademarks and trade names are those of their respective owners. NSA0611-V01...
