XDMA5280
INSTALLATION/OWNER'S MANUAL
AM/FM/CD Receiver with Detachable Face

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XDMA5280 and is the answer not in the manual?

Questions and answers

Related Manuals for Dual XDMA5280

Summary of Contents for Dual XDMA5280

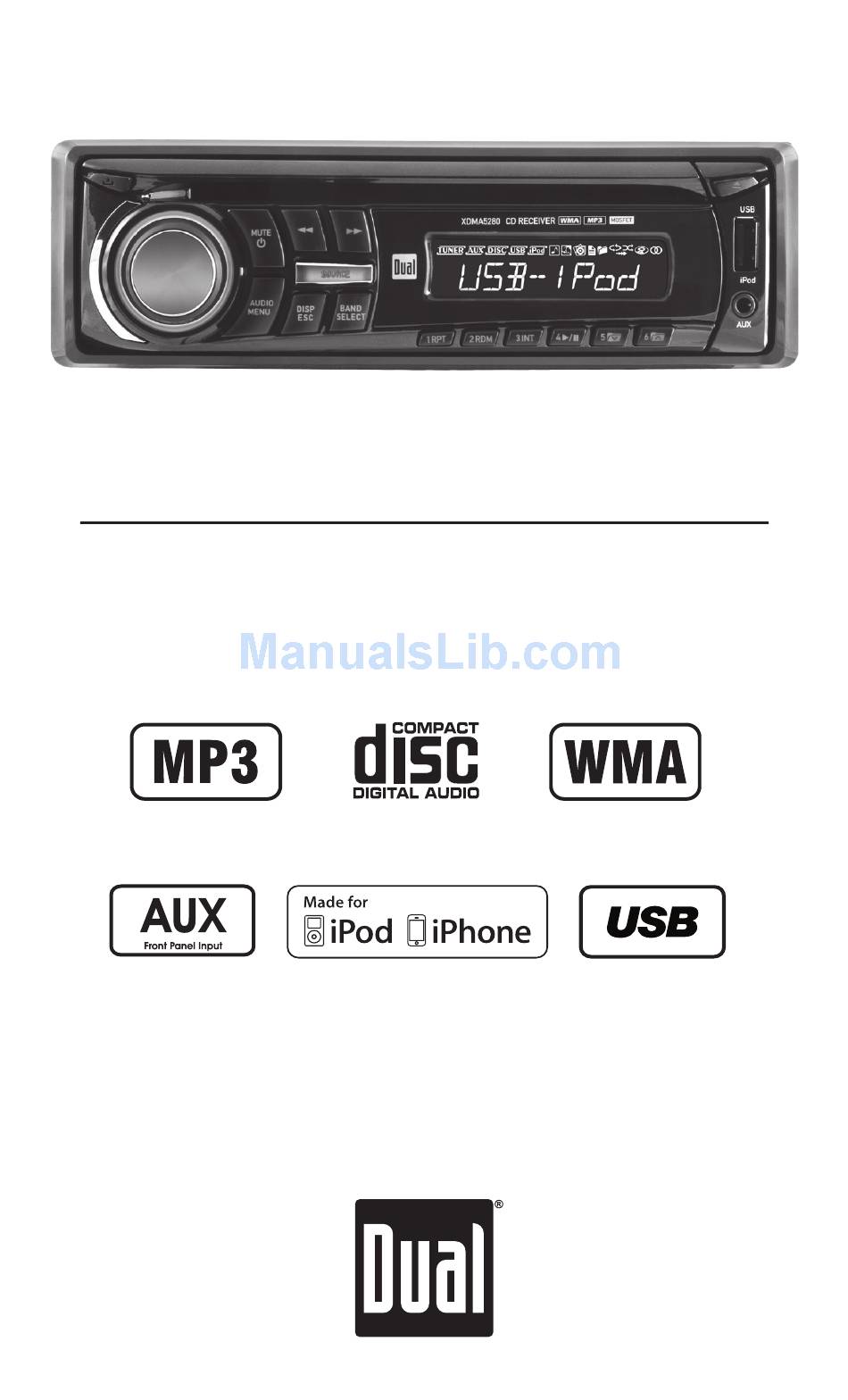

  • Page 1 XDMA5280 INSTALLATION/OWNER'S MANUAL AM/FM/CD Receiver with Detachable Face...

  • Page 2: Getting Started

    XDMA5280 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. Getting Started •...

  • Page 3: Replacing Fuse

    XDMA5280 INSTALLATION  Wiring Diagram Rear Preamp Output Connect to amplifier RCA input RCA Cable (sold separately) Antenna Connector BLUE Remote Turn-On Connect to amplifier or power antenna. Insulate wire if not used. BLACK Ground Connect to vehicle chassis ground. Accessory Connect to ignition circuit or switched 12 volt source.

  • Page 4: Control Locations - Receiver

    XDMA5280 OPERATION Control Locations - Receiver Preset 6 / Folder Up Release Preset 5 / Folder Down Volume Preset 4 / Play / Pause Mute / Power Preset 3/ Intro Tune / Track Down Preset 2 / Random Source Preset 1 / Repeat Tune / Track Up Band / Select Eject Display / Escape...

  • Page 5: Control Locations - Remote

    XDMA5280 OPERATION Control Locations - Remote Display/ESC Source Tune/Track Down Tune/Track Up Band/Select Volume Down Mute/Power Audio/Menu Volume Up...

  • Page 6: General Operation

    XDMA5280 OPERATION General Operation Press or any other button (except EJECT) to turn the unit Power On/Off on. Press to turn the unit off.  Changing Modes Press SOURCE to select between AM/FM, CD player, ® ® auxiliary input, USB and operation of iPod /iPhone . Modes of operation are shown in the display.

  • Page 7: Setup Menu

    XDMA5280 OPERATION General Operation - Setup Menu Menu Function Options Action Auto Station  Press SELECT to seek and save 6 strong stations in the AUTO STORE Store current band. (Tuner mode only) LOCAL OFF Activates distance tuning (Tuner mode only). Local/Distance  Activates local tuning for strong station reception only (Tuner  Tuning LOCAL ON mode only).
  • Page 8 XDMA5280 OPERATION General Operation Audio Press AUDIO momentarily to select between Bass, Treble, Balance, Fader, Equalizer and Source Volume Level. BASS TREBLE BALANCE FADER EQUALIZER SOURCE LEVEL Bass Press AUDIO until BASS appears then rotate volume knob left/right to adjust ( -6 minimum / +6 maximum). Treble Press AUDIO until TREBLE appears then rotate volume knob left/right to adjust ( -6 minimum / +6 maximum).
  • Page 9 XDMA5280 OPERATION AM/FM Tuner Operation Press TUNE or TUNE  for more than one second Seek Tuning to seek to the next strong station. Press TUNE or TUNE  momentarily to change Manual Tuning radio frequency up or down one step at a time. Press and hold to advance quickly. Press BAND to select between FM1, FM2, FM3, AM1 and Band ...

  • Page 10: Cd Player Operation

    XDMA5280 OPERATION CD Player Operation Insert CD With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Eject CD Press EJECT to eject the CD. The unit will change to previous mode of operation. If the disc is not removed within 10 seconds, the unit will reload the disc.
  • Page 11 XDMA5280 OPERATION CD Player Operation (MP3/WMA Files) Playing an MP3/WMA Disc When an MP3/WMA encoded disc is first inserted, “DISC READ” will appear in the display. Depending on the number of files and folders, this may take several seconds. Displaying Information Press DISP to select between song title, artist, file name, folder name, track number, and clock/elapsed time.
  • Page 12 XDMA5280 OPERATION CD Player Operation (MP3/WMA Files) Folder/File Search Mode MP3/WMA CD mode features a file and folder search mode. This search allows navigating through folders to find a specific MP3 or WMA file for playback. Step 1 Press SELECT to enter the file/folder search mode. A list of all the folders on the CD will be displayed.
  • Page 13 XDMA5280 OPERATION CD Player Operation (MP3/WMA Files) Folder Access  Press to select the previous folder. Press to select the next folder. *Folder access is only available on MP3/WMA discs recorded with more than one folder. Repeat Press RPT to enter the Repeat menu, then turn the volume  knob to select one of the following options: •...
  • Page 14 XDMA5280 OPERATION CD Player Operation (MP3/WMA Files) Media Compatibility The following types of discs/files are compatible: • CD-ROM (ISO), CD-R, CD-RW • CD-DA • MP3 data • WMA data The following types of discs/files are not compatible: • WMA files that are protected by DRM (Digital Rights Management).
  • Page 15 XDMA5280 OPERATION CD Player Operation (MP3/WMA Files) Additional MP3/WMA  An internal buffer provides ESP (Electronic Skip Protection) to Information virtually eliminate skipping. When playing a disc recorded with regular audio files (CD-DA or .WAV) and MP3/WMA files, the unit will play the MP3/WMA files only. Only MP3 files with filename extension (.mp3) can be played. Only WMA files with filename extension (.wma) can be played.

  • Page 16: Usb Operation

    XDMA5280 OPERATION USB Operation  Connecting a USB Device To play MP3/WMA files from most USB mass storage (sold separately) devices, line up the USB connector and insert the USB device into the XDMA5280's USB port. Playing Music When a USB device is first connected, “USB READ” will appear in the display and playback will begin momentarily.
  • Page 17 XDMA5280 OPERATION USB Operation Displaying Information When a file is accessed, the clock and elapsed time will be displayed. Press DISP momentarily to select beween song title, artist, file name, folder name, track number and clock/ elapsed time.    "NO TITLE" will be displayed if no song title information is available.
  • Page 18 XDMA5280 OPERATION USB Operation  Character Support Maximum character display information • Track name – 32 character maximum • Directory name – 32 character maximum • *Song title – 32 character maximum • *Artist name – 32 character maximum *Song title and artist name will only be displayed if included with the MP3/WMA file.
  • Page 19 XDMA5280 OPERATION USB Operation Additional MP3/WMA  Only MP3 files with filename extension (.mp3) can be played. Information Only WMA files with filename extension (.wma) can be played. Do not attempt to play non-MP3/WMA files with the MP3/WMA extension. Sampling Frequency Rates 8kHz ~ 48kHz 32kHz ~ 48kHz Transfer Bit rates 32kbps ~ 320kbps constant Variable bit rates...

  • Page 20: Operation Of Ipod

    XDMA5280 OPERATION Operation of iPod Connect an iPod Device The XDMA5280 features a direct USB control system for iPod. To (Not Included) play music from an iPod device, connect the USB cable (included  with your iPod device) to the XDMA5280's USB port. Once connected, "USB READ" is shown shortly, then "IPOD/IPHONE READ" will appear in the display.
  • Page 21 XDMA5280 OPERATION Operation of iPod               Song Select Press to skip to the beginning of next song. Press to return to the beginning of current song. Pressing again skips to the beginning of previous song.   Fast Forward and  Press and hold to fast forward or reverse a Reverse song.

  • Page 22: Limited One Year Warranty

    2. If you require service during the the original purchase. warranty period, you must carefully pack the product (preferably in the Dual Electronics Corp. agrees, at our original package) and ship it by prepaid option, during the warranty period, transportation with a copy of the original...

  • Page 23: Troubleshooting

    XDMA5280 OPERATION Troubleshooting  Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on  voltage (11~16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground Fuse blown Replace fuse Speaker wires not connected Check connections at speakers Unit has power ...

  • Page 24: Specifications

    XDMA5280 OPERATION Specifications CD Player Frequency response: 10Hz-20kHz Channel separation @ 1kHz: >65dB D/A converter: 1 Bit FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: 40dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 22uV Frequency response: 30Hz-2.2kHz General...

  • Page 25: Fcc Compliance

    XDMA5280 OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 26 XDMA5280 OPERATION Notes...
  • Page 27 XDMA5280 OPERATION Notes...
  • Page 28 Toll Free: 1-866-382-5476 www.dualav.com ©2011 Dual Electronics Corp. All rights reserved. iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards.
