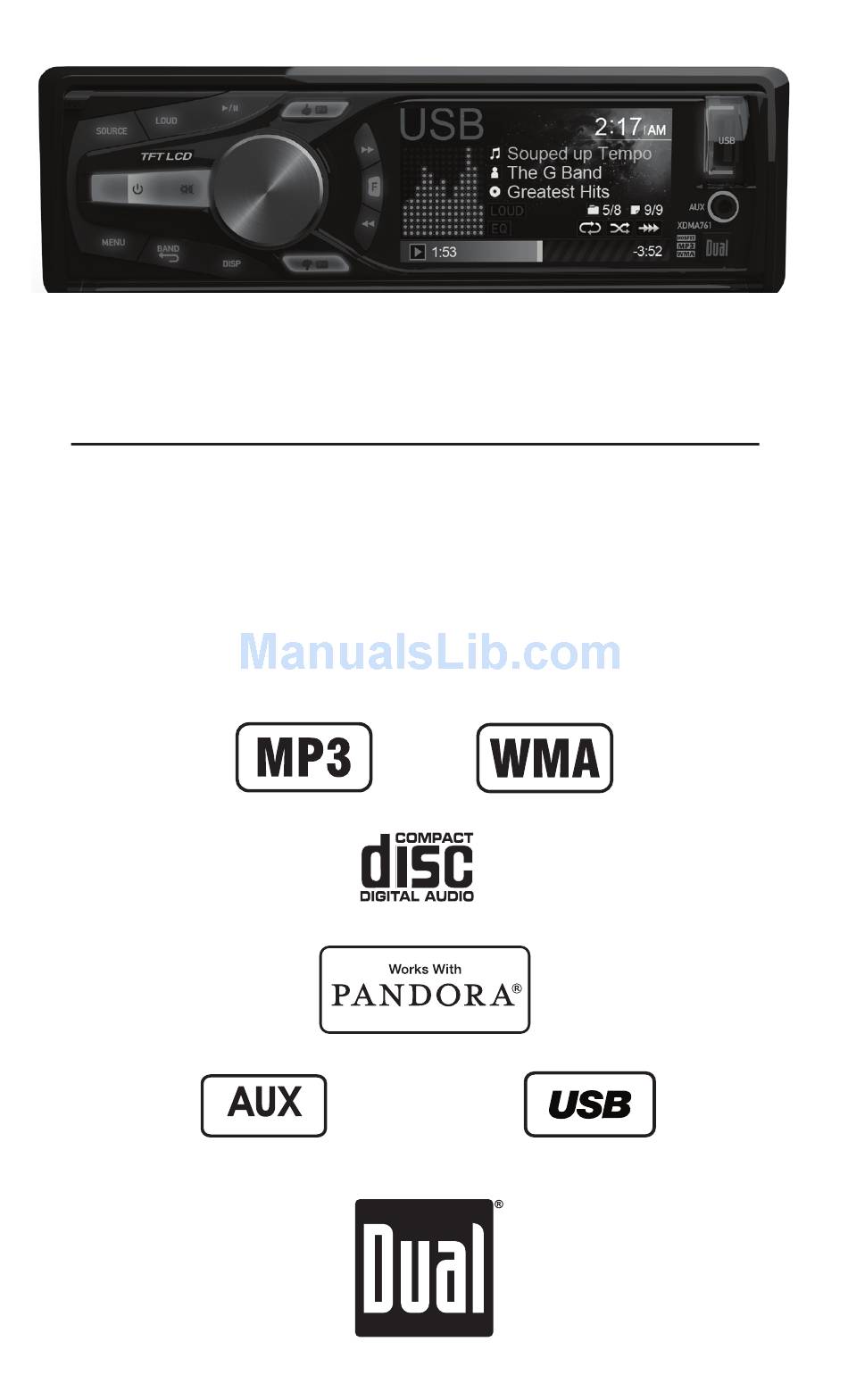

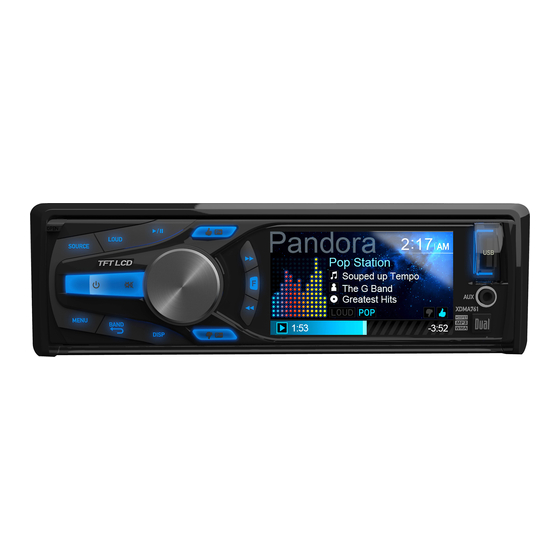

- Page 1 XDMA761 INSTALLATION/OWNER'S MANUAL CD Receiver Front and Rear Inputs...
-
Page 2: Preparation
XDMA761 Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 3: Wiring Diagram
Memory correct type and amperage. Connect to the battery Using an incorrect fuse could circuit or constant 12 volt source. damage the radio. The XDMA761 uses one 10 amp ATM fuse located Right Front Right Rear in-line. Gray/Black (-) Violet/Black (-) -
Page 4: Control Locations - Receiver
XDMA761 Control Locations - Receiver Open Auxiliary Input Source Tune / Track Down Loudness Preset Down / Thumbs Down Display Play / Pause Mute Volume Knob/ Select (push) Band / Go Back Preset Up / Thumbs Up Power Tune / Track Up Function... -
Page 5: Control Locations - Remote
XDMA761 Control Locations - Remote Source Preset Up / Thumbs Up Volume Up Menu Power Preset Down / Thumbs Down Select Key 5 / Folder Down Tune / Track Up Key 4 / Play / Pause Volume Down Key 1 / Repeat Mute... -
Page 6: General Operation
Disc, Aux Front, Aux Rear, USB, iPod and Pandora modes. Modes of operation are shown in the display. Auxiliary Input The XDMA761 offers both front and rear auxiliary input ports for connecting an audio device, MP3 player, etc. Press SOURCE to select either the front or rear auxiliary input mode. - Page 7 XDMA761 General Operation Setup Menu Press MENU to toggle through and select one of the following setup menus: Audio, General, Gain and Screen. 1. Once the desired menu is displayed, rotate the volume knob to scroll through the list of menu features.
- Page 8 XDMA761 General Operation General Setup Menu Menu Function Options Action Programs the unit to USA tuner spacing. (200kHz for FM and 10kHz for AM). Tuner Programs the unit to South American tuner spacing. Frequency S-America (100kHz for FM and 10kHz for AM). Spacing Programs the unit to European tuner spacing.
- Page 9 XDMA761 General Operation Gain Setup Menu Menu Function Options Rotate the volume knob to adjust the tuner gain. Tuner Gain (-6 minimum / +6 maximum) Rotate the volume knob to adjust the gain for disc playback. Disc Gain (-6 minimum / +6 maximum) Rotate the volume knob to adjust the gain for the front auxiliary input.
-
Page 10: Am/Fm Tuner Operation
XDMA761 AM/FM Tuner Operation Press TUNE or TUNE momentarily to change Manual Tuning radio frequency up or down one step at a time. Press and hold to advance quickly. Seek Tuning Press TUNE or TUNE for more than two seconds (then release) to automatically seek and tune to the next strong station. - Page 11 XDMA761 CD Operation Insert CD Press OPEN to fold down the front panel and expose the CD slot. With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Eject CD With the front panel open, press EJECT to eject the CD. The unit will change to previous mode of operation.
-
Page 12: Mp3/Wma Operation
XDMA761 MP3/WMA Operation Playing MP3/WMA Files To play MP3/WMA files, insert a data CD or USB device containing MP3/WMA files. “Loading" will flash in the display. Depending on the number of files and folders, this may take several seconds. Displaying Information Press DISP to cycle between track information and file/ folder information. - Page 13 XDMA761 MP3/WMA Operation File/Folder Search Begin Searching Press SELECT to enter the file/folder search mode. A list of all the folders from the disc or device will be displayed. Note: Any files located in the root directory will be located in the folder named "ROOT".
- Page 14 XDMA761 MP3/WMA Operation File/Folder Compatibility and Support - CD Type Specification • CD-ROM (ISO), CD-R, CD-RW Compatible File • CD-DA (digital audio) Types • MP3 data (.mp3) • WMA data (.wma) • DRM protected files • WMA lossless • Apple lossless Incompatible File • WMA Pro Types • MP3 Pro •...
- Page 15 XDMA761 MP3/WMA Operation File/Folder Compatibility and Support - USB Type Specification • MP3 data (.mp3) Compatible File Types • WMA data (.wma) • DRM protected files • WMA lossless • Apple lossless Incompatible File • WMA Pro Types • MP3 Pro • MP3 playlists • M4A/AAC data • WAV lossless Sampling Frequency ...
-
Page 16: Ipod Operation
Podcasts Full/Manual Control The XDMA761 features both full and manual control modes for iPod/iPhone devices. See page 8 for details to toggle the control between full and manual modes. Important: To support manual control for iPod/iPhone, the iPod device must be updated to the newest firmware. - Page 17 XDMA761 iPod Operation Song Select Press to skip to the beginning of next song. Press to return to the beginning of current song. Pressing again skips to the beginning of previous song. Fast Forward and Press and hold to fast forward or reverse a Reverse song.
-
Page 18: Pandora Operation
XDMA761 Pandora Operation Requirements Control for Pandora requires: • An iPhone device with a reliable data connection, or an iPod touch that is connected to wireless internet. • The Pandora App installed on the iPhone/iPod device. • An active account with Pandora. Sign up at www.pandora. - Page 19 XDMA761 Pandora Operation Skipping Tracks Press to skip the current song. / II to temporarily stop playback. Play/Pause Press / II again to resume playback. Press Thumbs Up Press to tell Pandora you like the current track. Pandora will play more tracks with similar qualities.
-
Page 20: Limited One-Year Warranty
2. If you require service during the original purchase. warranty period, you must carefully pack the product (preferably in the Dual Electronics Corp. agrees, at our original package) and ship it by prepaid option, during the warranty period, transportation with a copy of the original... -
Page 21: Troubleshooting
XDMA761 Troubleshooting Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11-16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground Fuse blown Replace fuse Speaker wires not connected Check connections at speakers Unit has power ... -
Page 22: Specifications
XDMA761 Specifications Frequency response: 20Hz-20kHz CD Player Channel separation @ 1kHz: >65dB D/A converter: 1 Bit FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: >30dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 22uV Frequency response: 30Hz-2.2kHz... -
Page 23: Fcc Compliance
XDMA761 FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 24 Monday-Friday, 9AM-5PM, EST www.dualav.com ©2013 Dual Electronics Corp. All rights reserved. iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards.
